How to remove a tool from the of packing tool card


1. In order to remove a tool from the of packing tool card, go to the submodule "PL". /images/how_to/Tool Management/How_to_create_repair_order_1.png

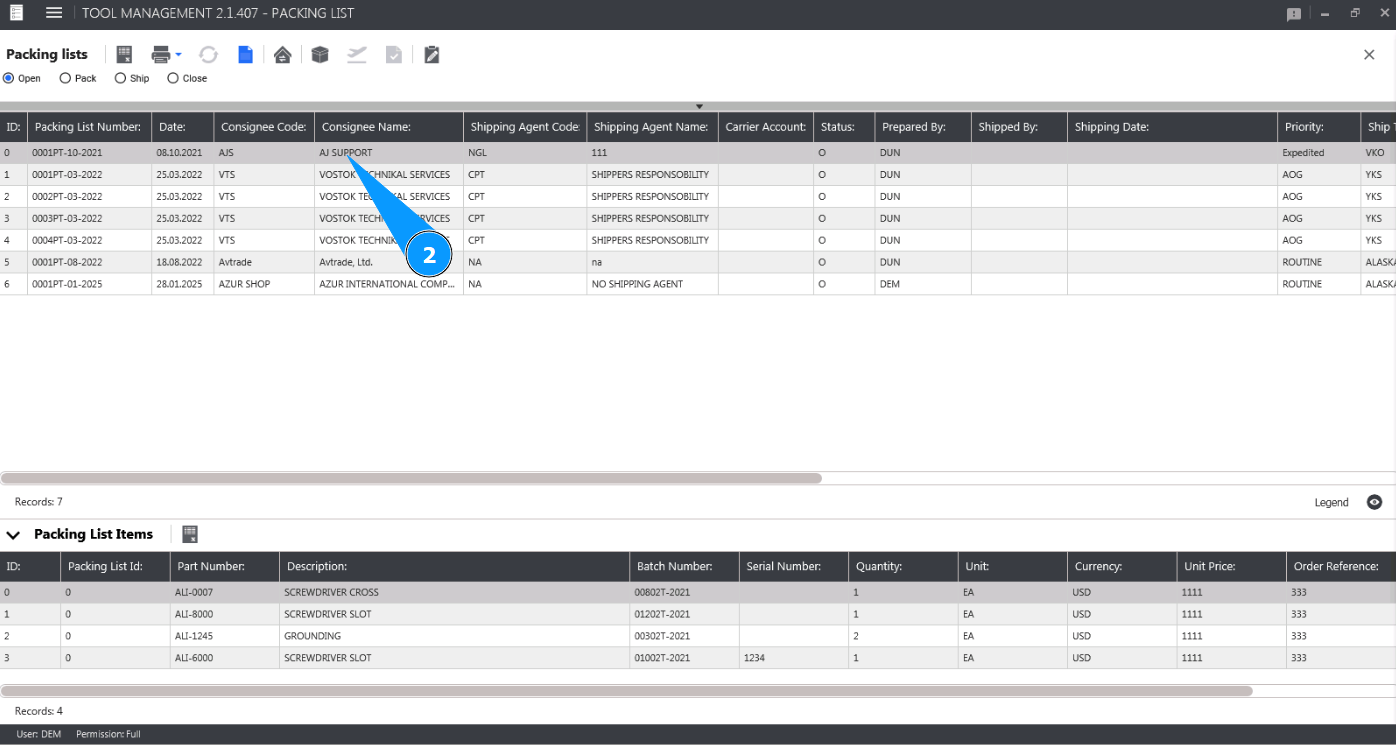

2. Select the required Packing List for removing the tool from the packing tool card and click on the corresponding line in the window "Packing Lists". /images/how_to/Tool Management/How_to_add_tool_to_packing_list_1.png

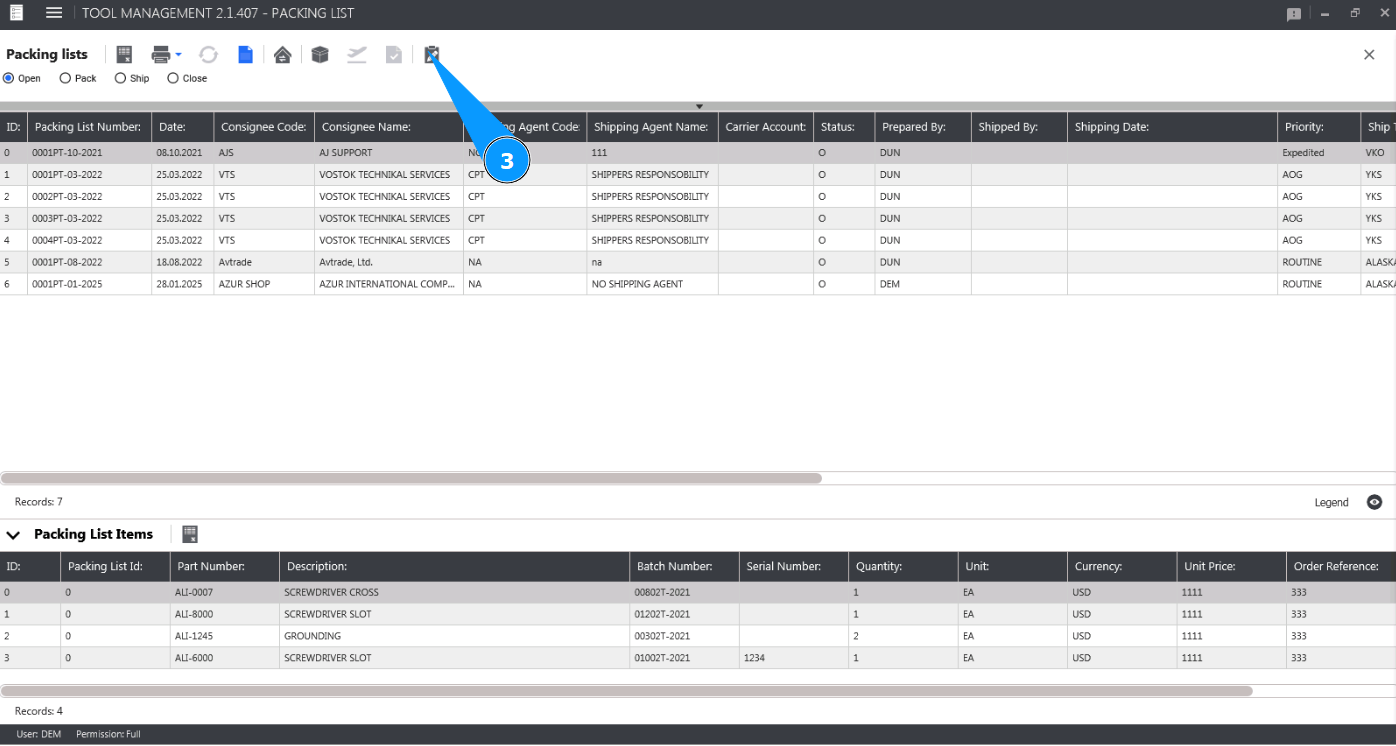

3. Click on the button "Show Editor" to open the Packing List editor. /images/how_to/Tool Management/How_to_add_tool_to_packing_list_2.png

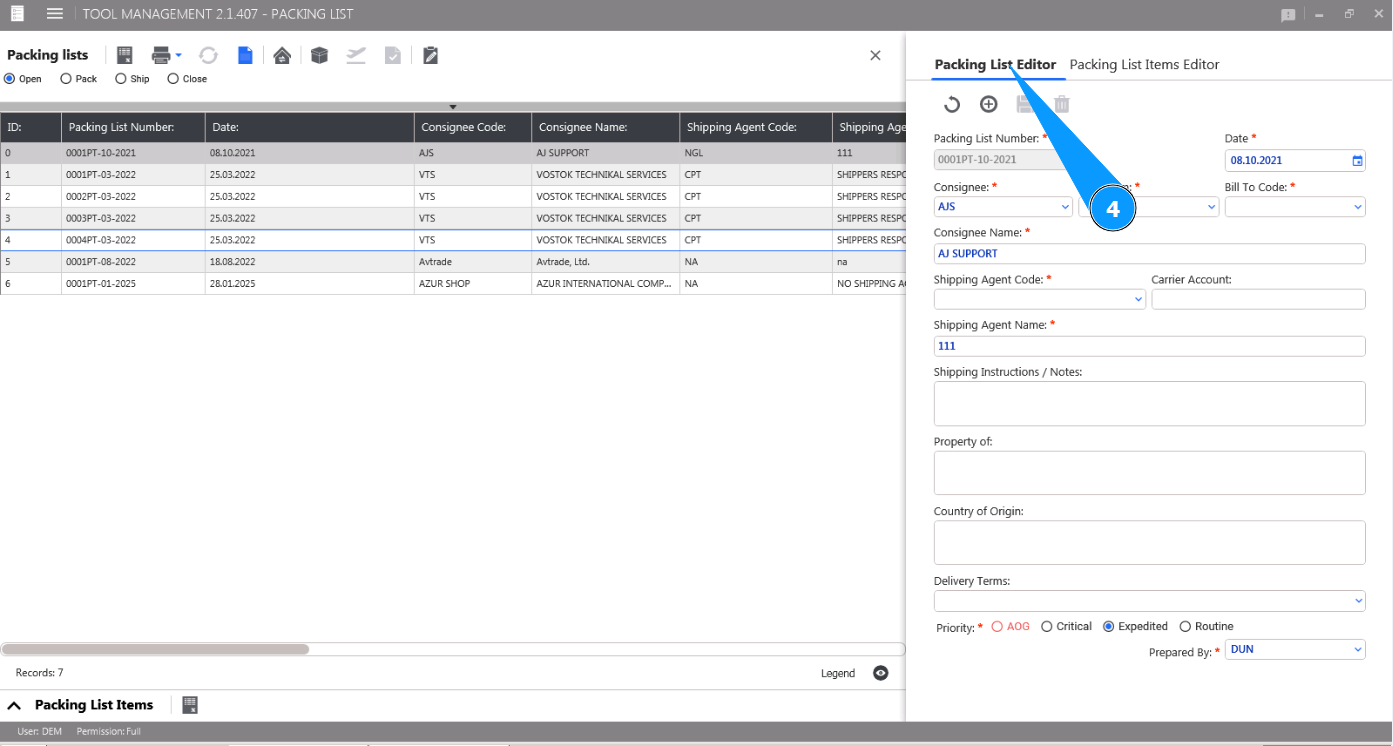

4. Check that the window "Packing List Editor" opens. /images/how_to/Tool Management/How_to_add_tool_to_packing_list_3.png

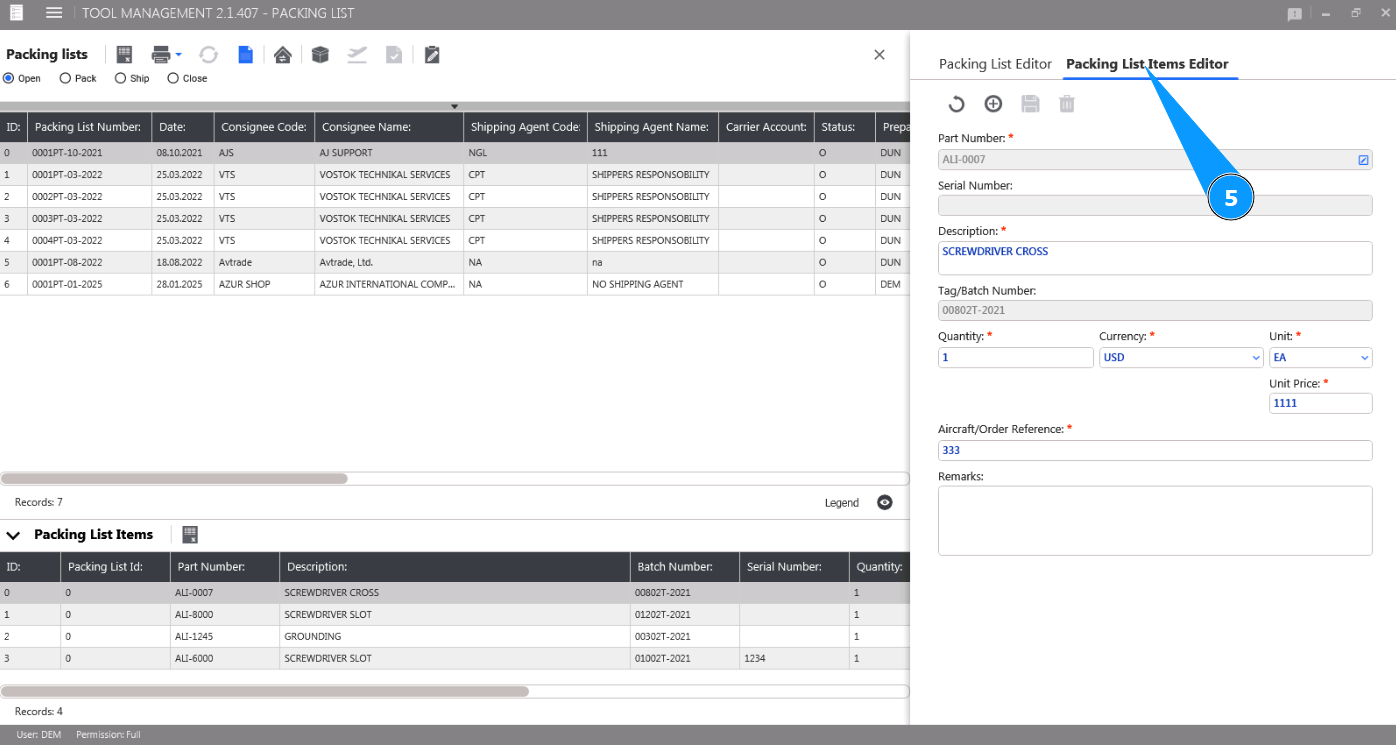

5. Go to the tab "Packing List Items Editor". /images/how_to/Tool Management/How_to_add_tool_to_packing_list_4.png

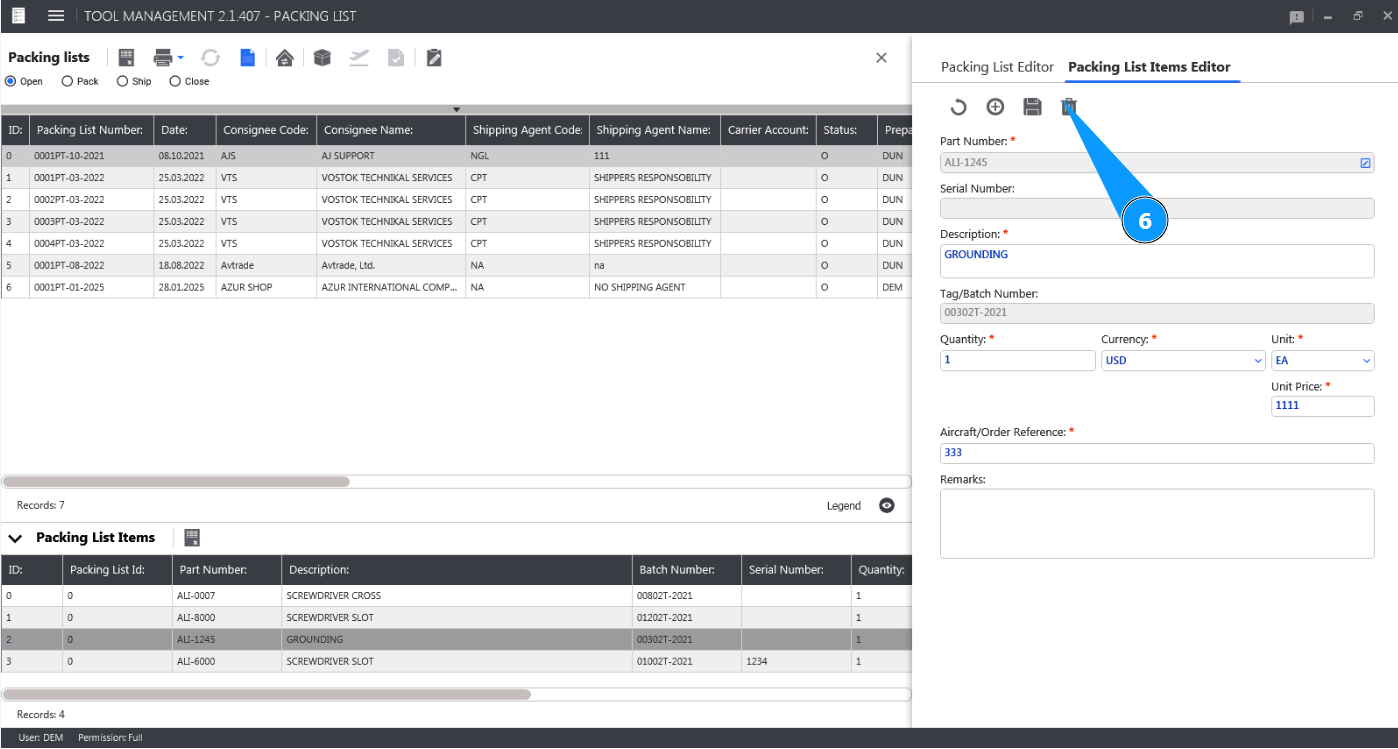

6. Click on the button "Delete" to remove the tool from the Packing List card. /images/how_to/Tool Management/How_to_delete_tool_from_packing_list_1.png

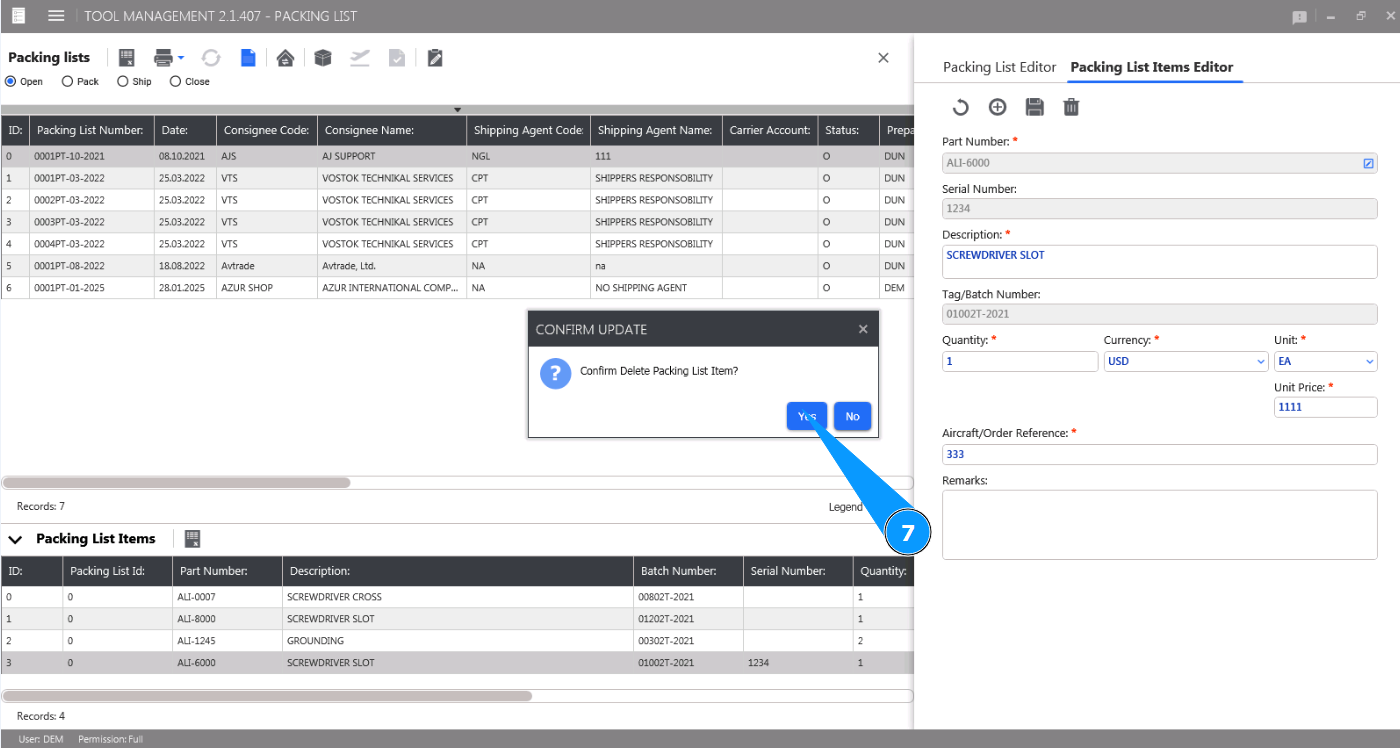

7. Click on the button "Yes" to confirm deleting the tool from the Packing List card. /images/how_to/Tool Management/How_to_delete_tool_from_packing_list_2.png

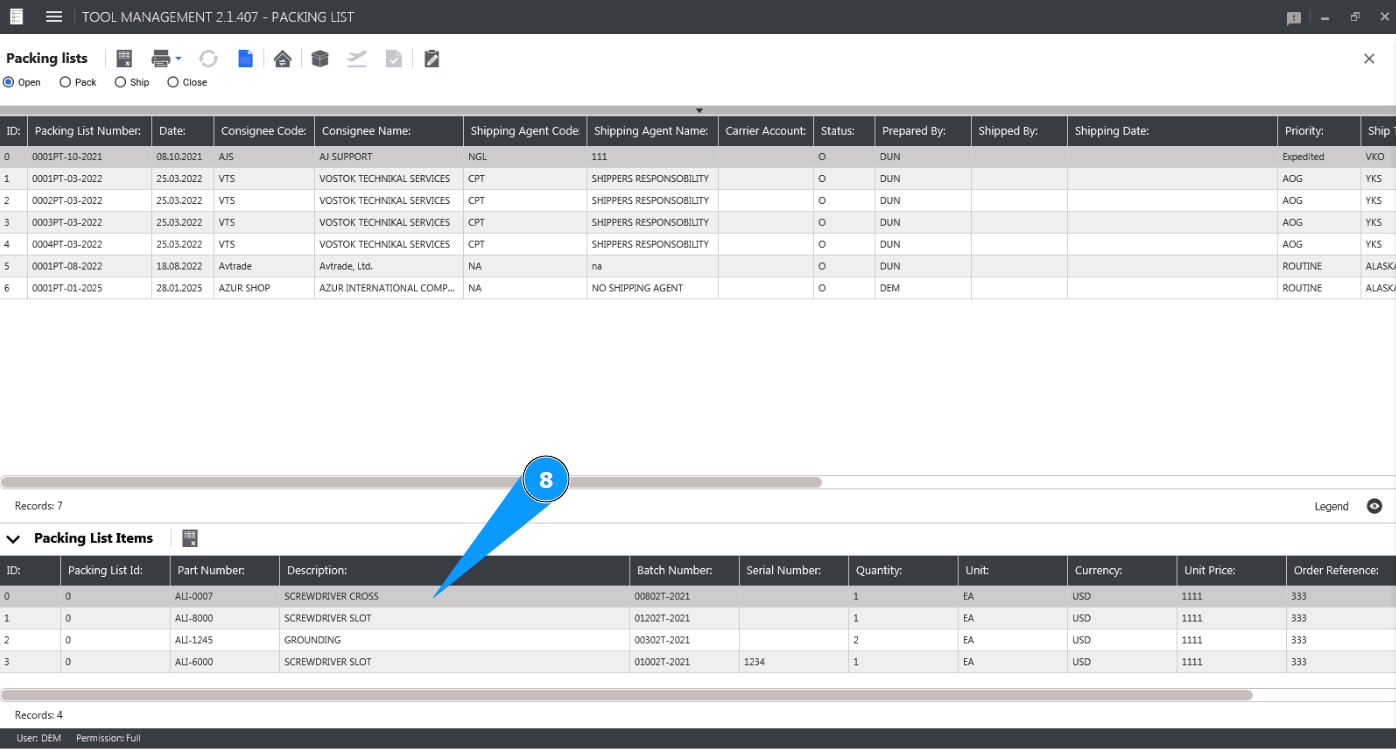

8. Check the deletion of the tool from the Packing List card in the window "Packing List Items". /images/how_to/Tool Management/How_to_delete_tool_from_packing_list_3.png
