How to attach a document to a tool card

1. In order to attach a document to a tool card, go to the submodule "TMS".

2. Select the required line with the tool in the window and click on it in the window "Tool List".

3. Click on the button "Show Editor" to open the tool editor.

4. Click on the button "Attachment Documents" to open the document attachment editor.

5. Check that the section for working with document attachments has opened and is available in the window "Attachment Editor".

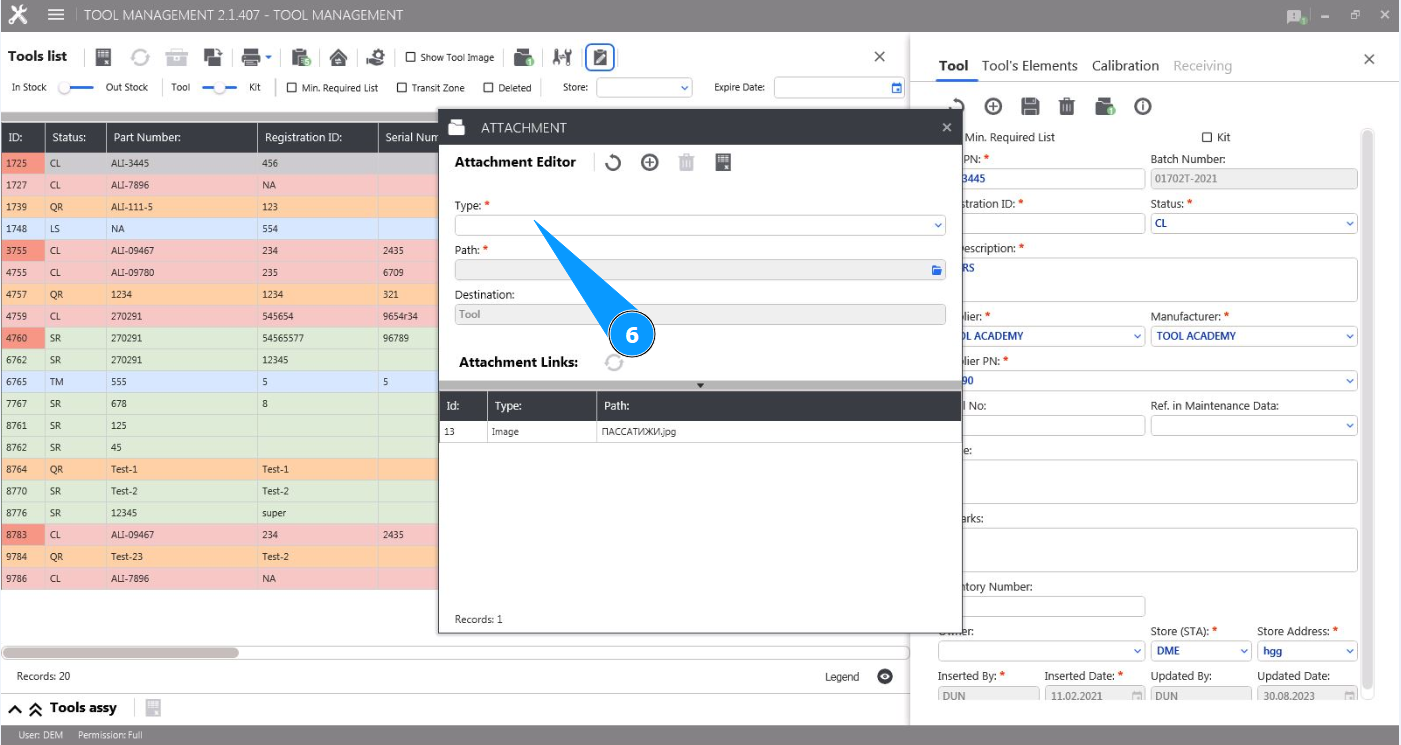

6. Select the document type from the dropdown list in the field "Type".

7. Click on the button "Path" to select a document on your computer.

8. Select the required file on your computer and click on the button "Open".

9. Click on the button "Add" to add a document to the tool card.

10. Click on the button "Yes" to confirm adding the document to the card.

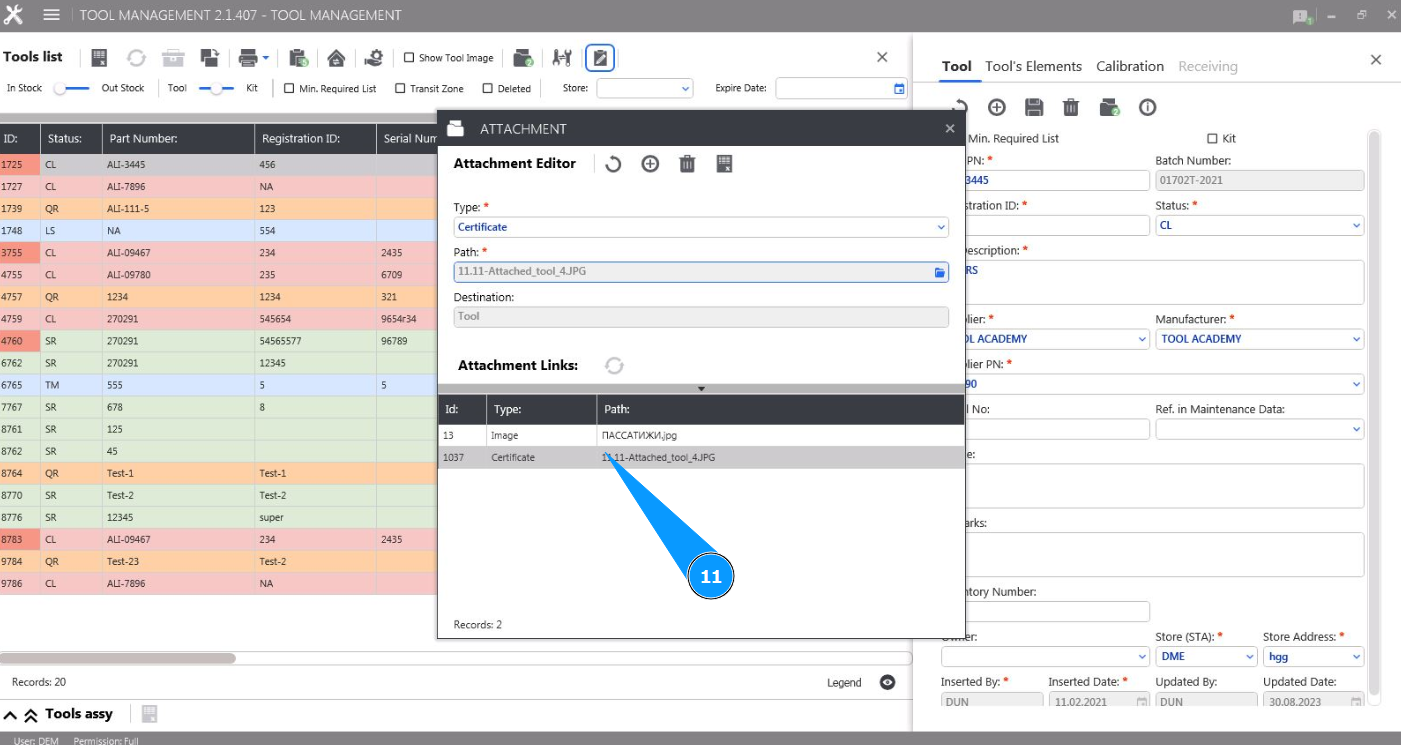

11. Check that the added document is displayed in the window "Attachment List".
