How to manage AMP model

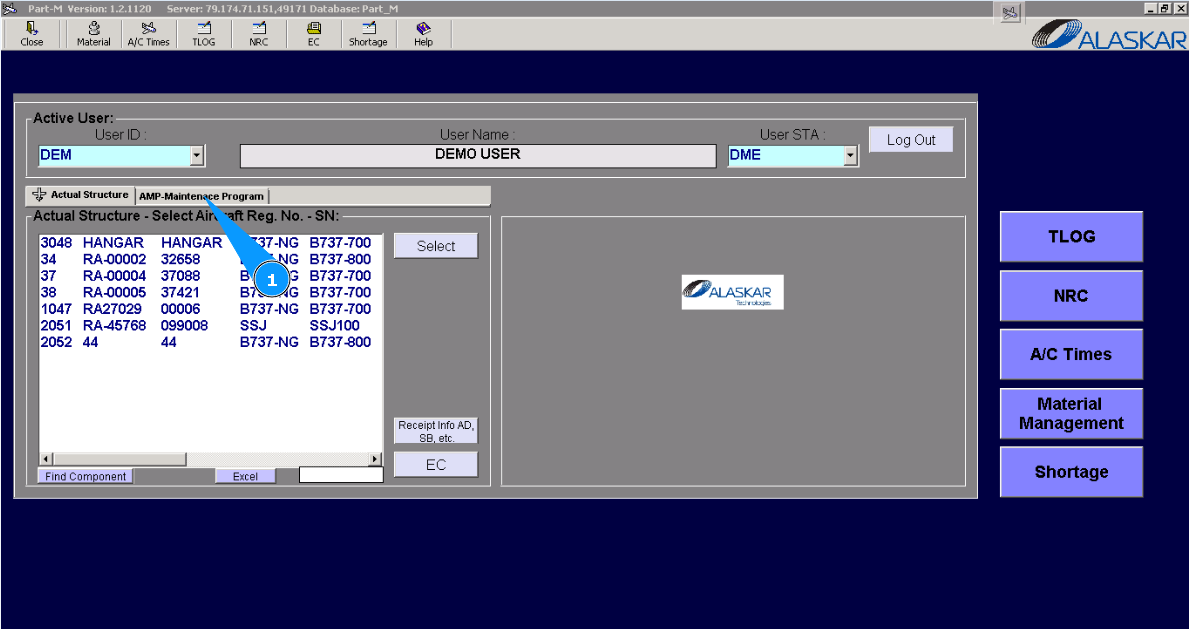

1. For adding panels to AMP task, please go to submodule "AMP- Maintenance Program". /images/how_to/Part-M/How_To_check_AMP_1.png

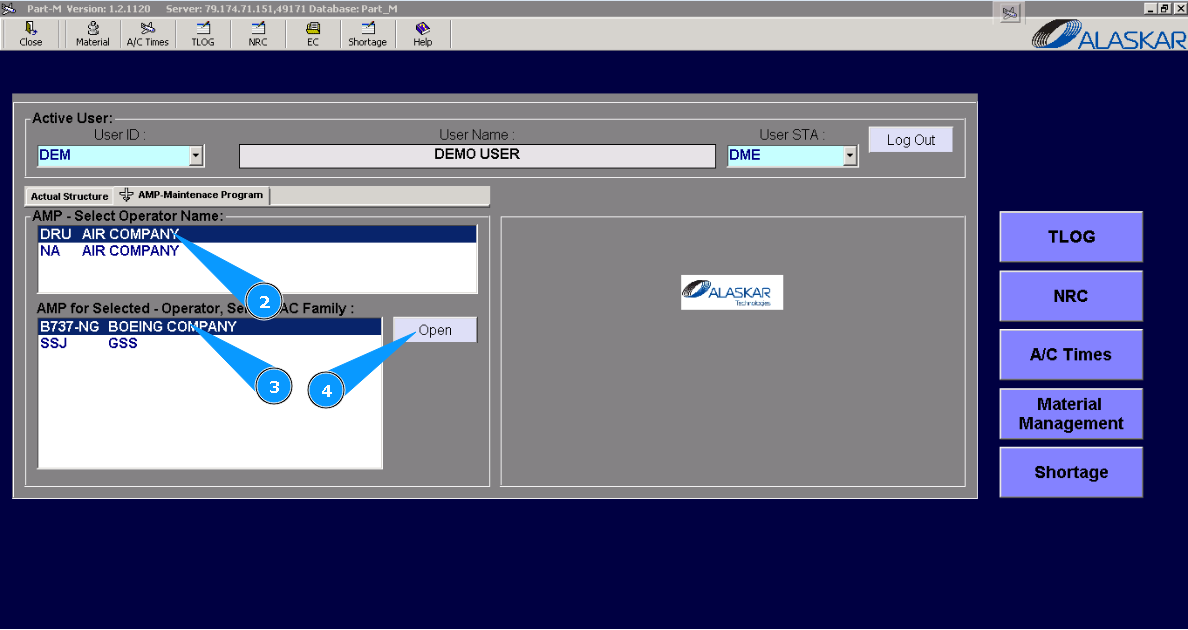

2. Select the company name in the list of window "AMP- Select Operator Name".
3. Select aircraft type in the list of window "AMP for Selected- Operator".
4. Click on the button "Open", for opening AMP menu. /images/how_to/Part-M/How_To_check_AMP_2.png

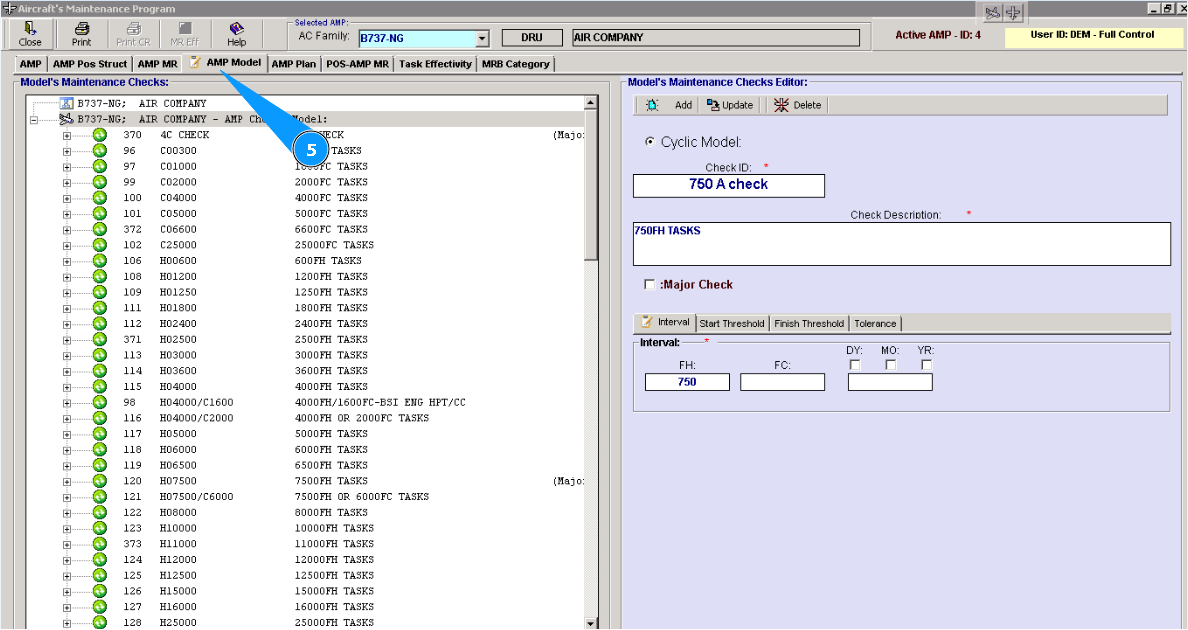

5. Then go to tab "AMP Model". /images/how_to/Part-M/How_To_manage_AMP_model_1.png

Note: Create necessary checks under applicable intervals or in accordance with other used policy of your company.

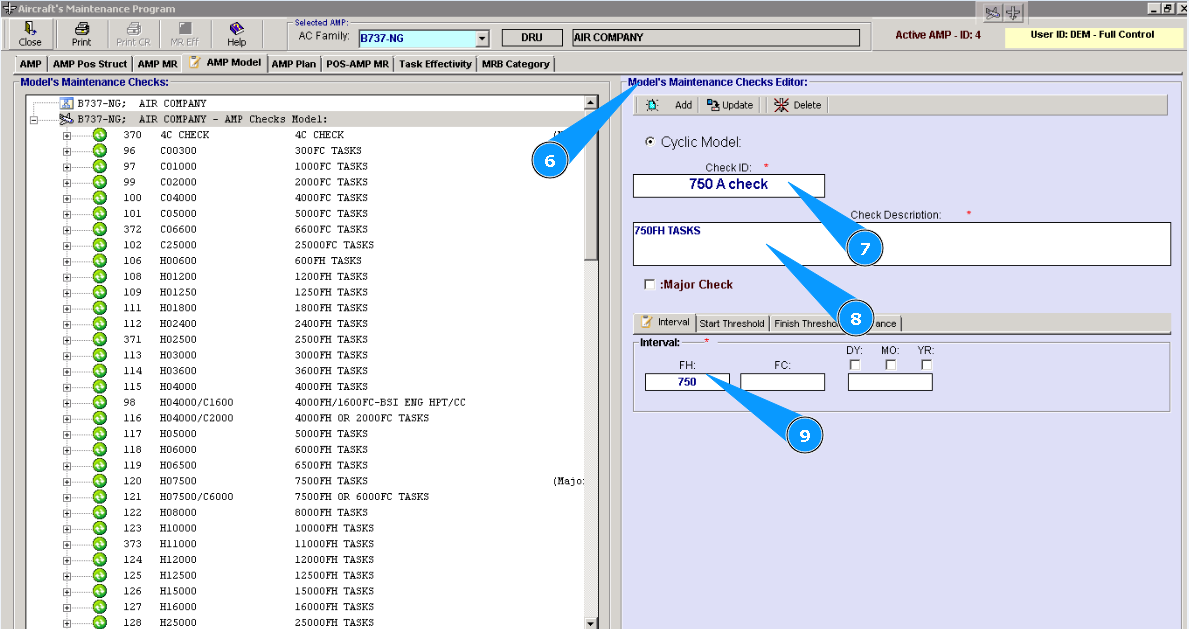

6. Fill in necessary fields in the editor Model's Maintenance Checks Editor".
7. Enter the short name of the check in the field "Check ID".
8. Enter description of check in the field "Check Description".
9. Enter the necessary interval in the tab "Interval" in the field "Interval". /images/how_to/Part-M/How_To_manage_AMP_model_2.png

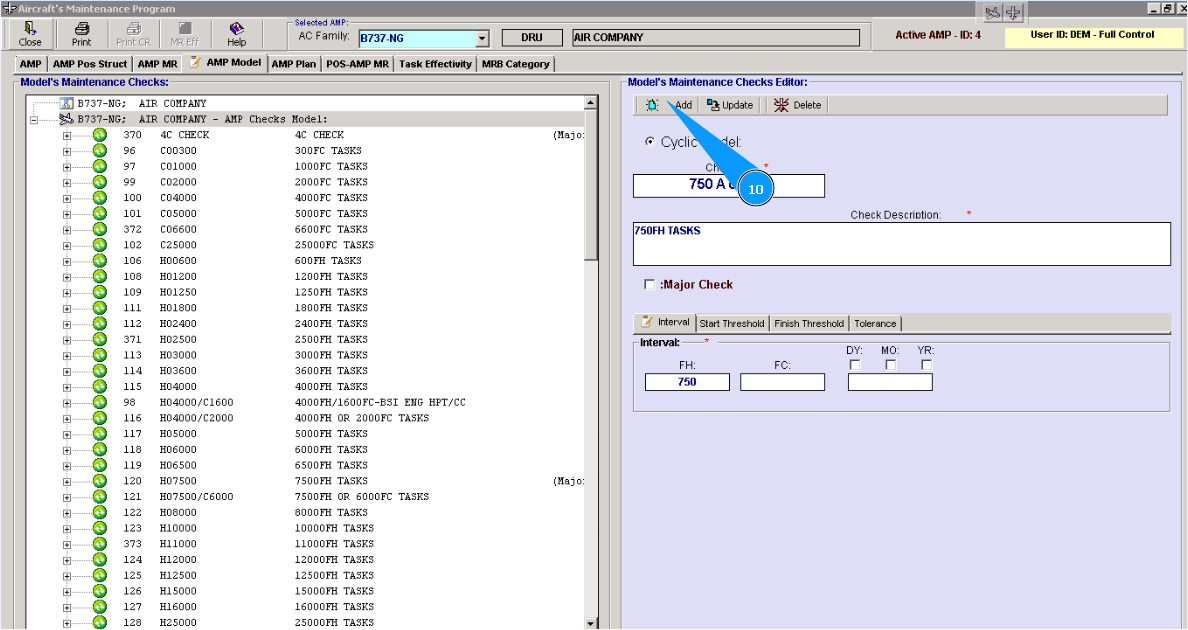

10. Click on the button "Add", for adding data to the program. /images/how_to/Part-M/How_To_manage_AMP_model_3.png

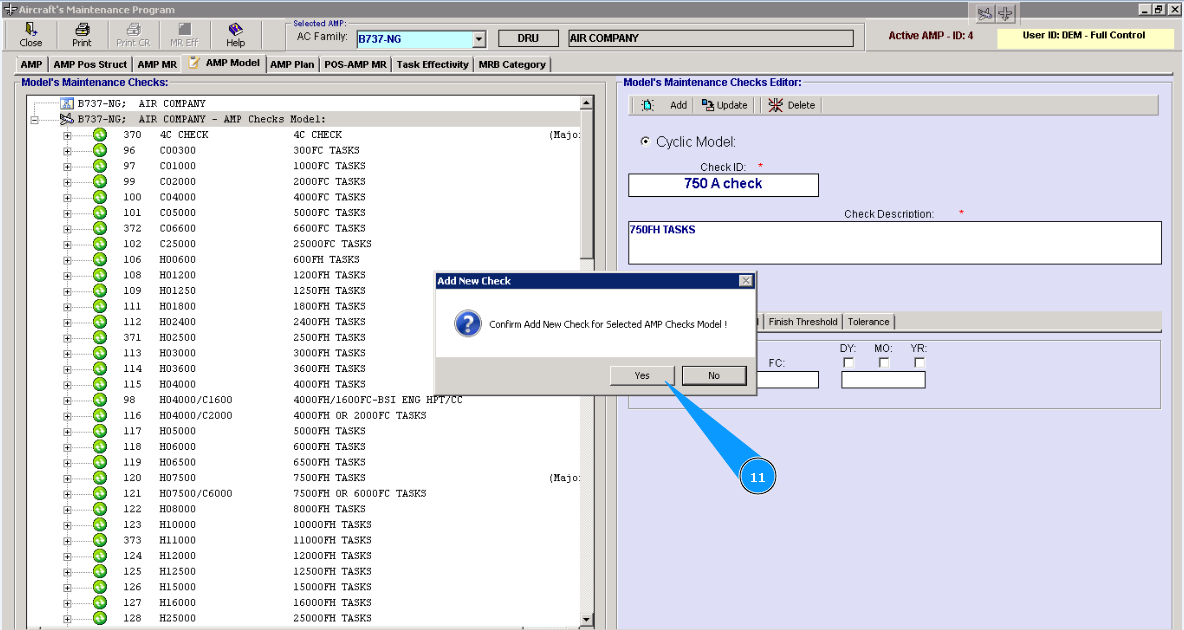

11. Click on the button "Yes", to confirm adding data to the program. /images/how_to/Part-M/How_To_manage_AMP_model_4.png

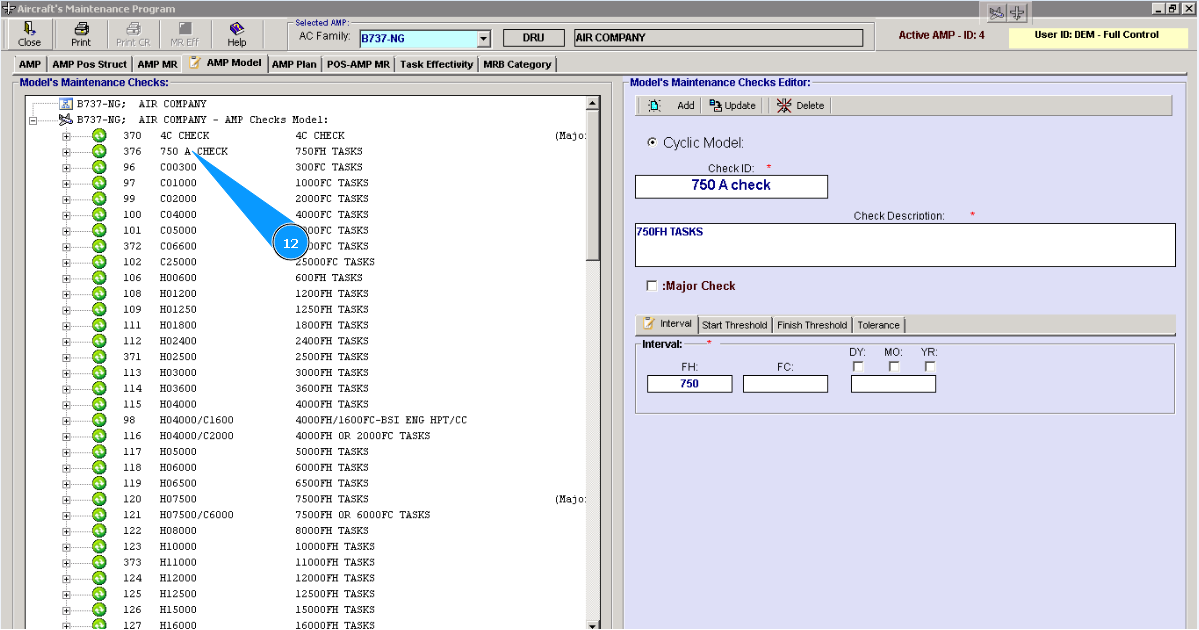

12. Check that new line with created check is presented in the window "Model's Maintenance Checks". /images/how_to/Part-M/How_To_manage_AMP_model_5.png

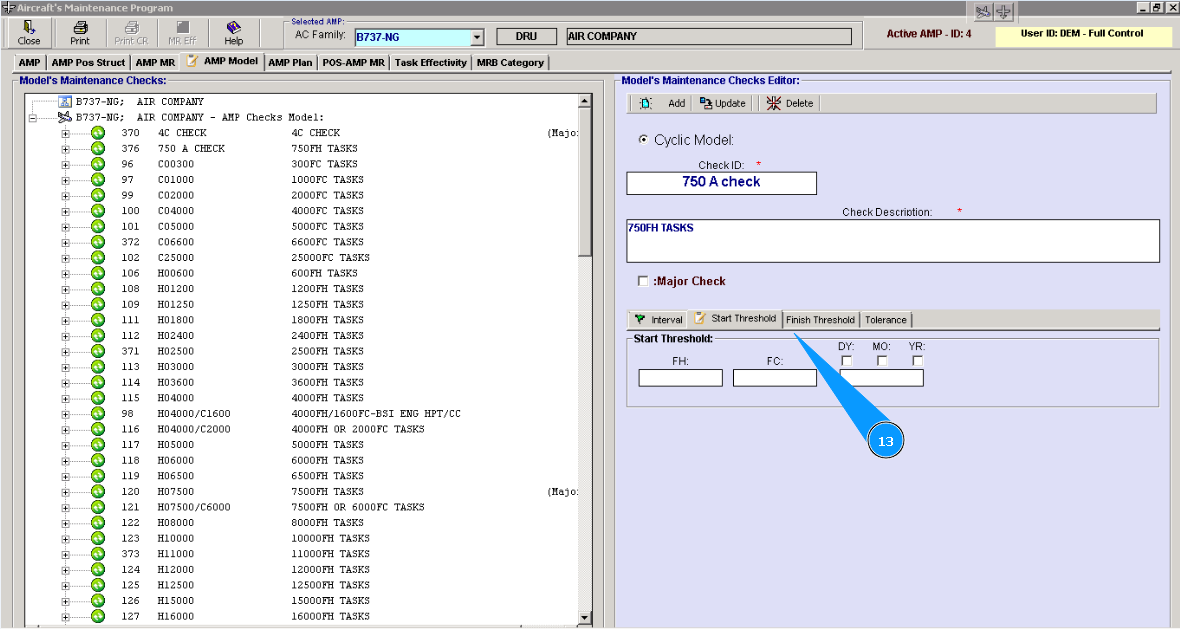

13. If necessary, enter corresponding intervals of the start or finish threshold of the task being performed in the field "Start Threshold" or field "Finish Threshold". /images/how_to/Part-M/How_To_manage_AMP_model_6.png
