How to enter special instructions for the AMP task


1. For adding special instructions to the AMP task, please go to submodule "AMP- Maintenance Program". /images/how_to/Part-M/How_To_check_AMP_1.png

2. Select the company name in the list of window "AMP- Select Operator Name".
3. Select aircraft type in the list of window "AMP for Selected- Operator".
4. Click on the button "Open", for opening AMP menu. /images/how_to/Part-M/How_To_check_AMP_2.png

5. Then go to tab "AMP MR".

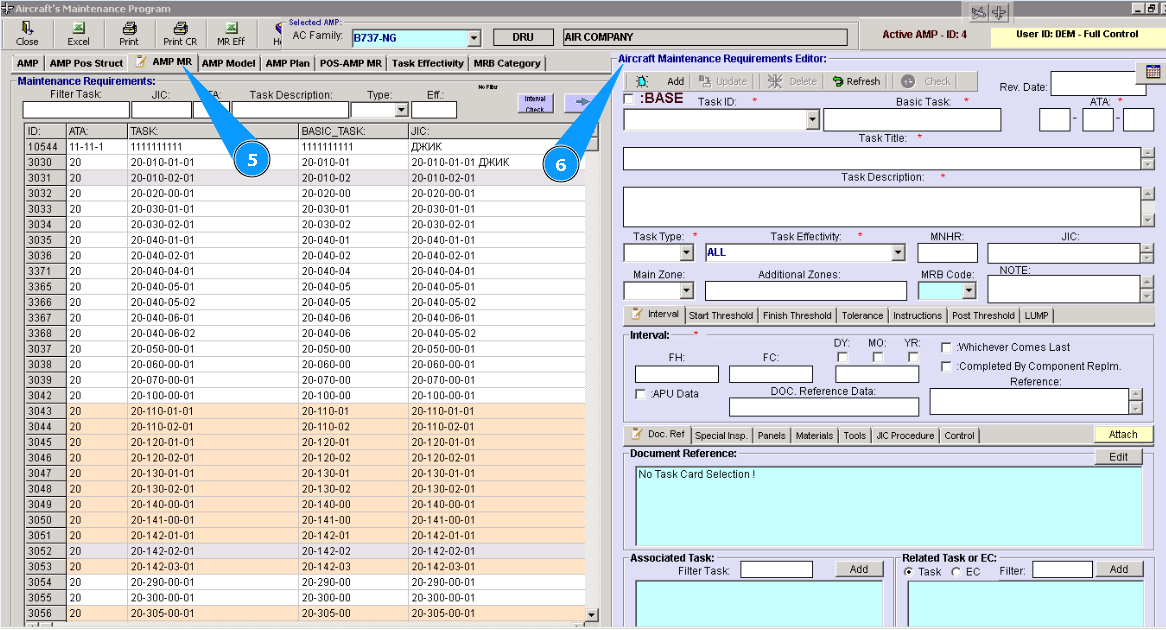

6. Then go to the tab  "Special Insp." in the editor "Aircraft Maintenance Requirements Editor". /images/how_to/Part-M/How_To_create_AMP_task_1.png

7. Click on the button "Edit".

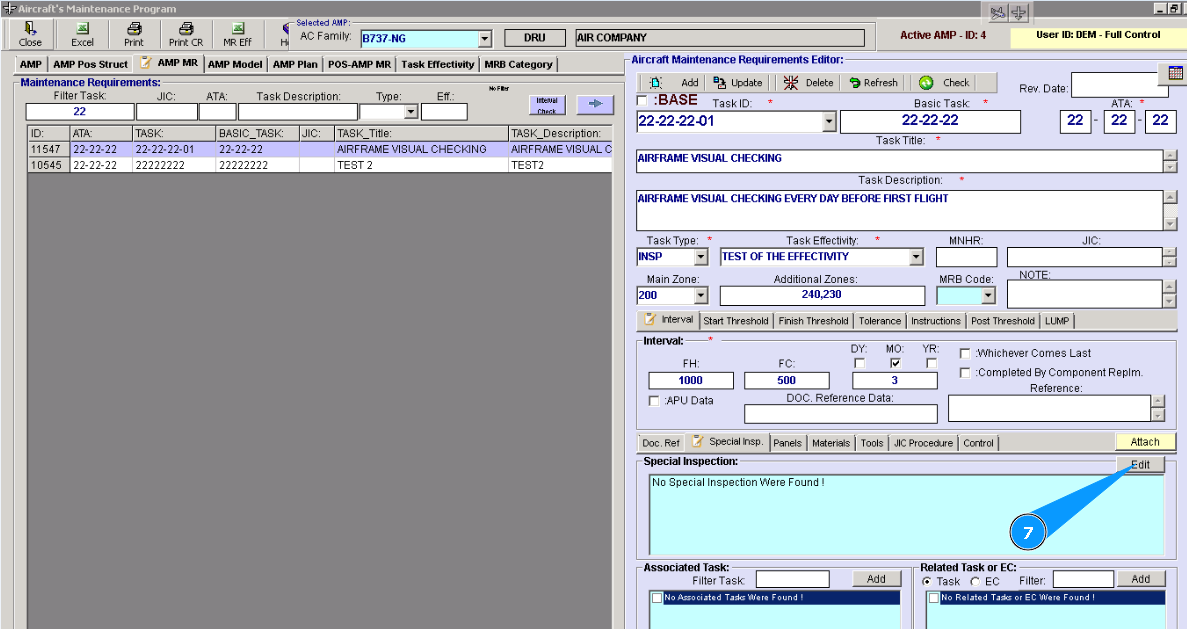

/images/how_to/Part-M/How_To_enter_spec.instr_to_AMP_task_1.png

8. Enter the special inspection name in the searching field and press the button "Enter" on your keyboard.
9. Check that the result is found in the list.
10. To add a special inspection to AMP, please double-click on the corresponding line.

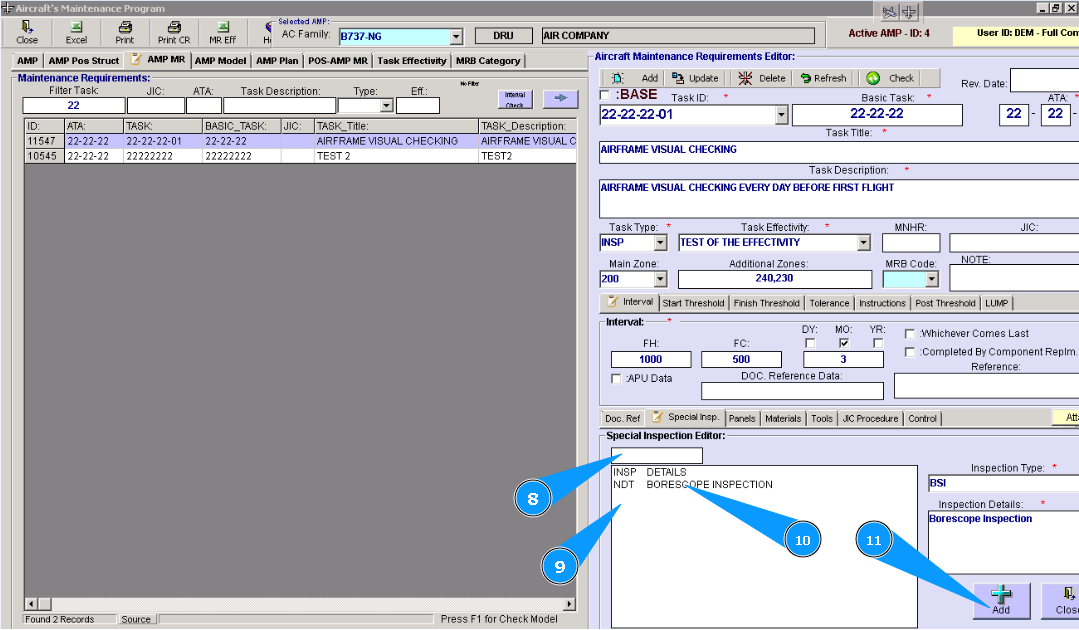

11. Click on the button **"Add" to add data to the program. /images/how_to/Part-M/How_To_enter_spec.instr_to_AMP_task_2.png

12. Click on the button "Yes", to confirm adding data to the program. /images/how_to/Part-M/How_To_enter_spec.instr_to_AMP_task_3.png

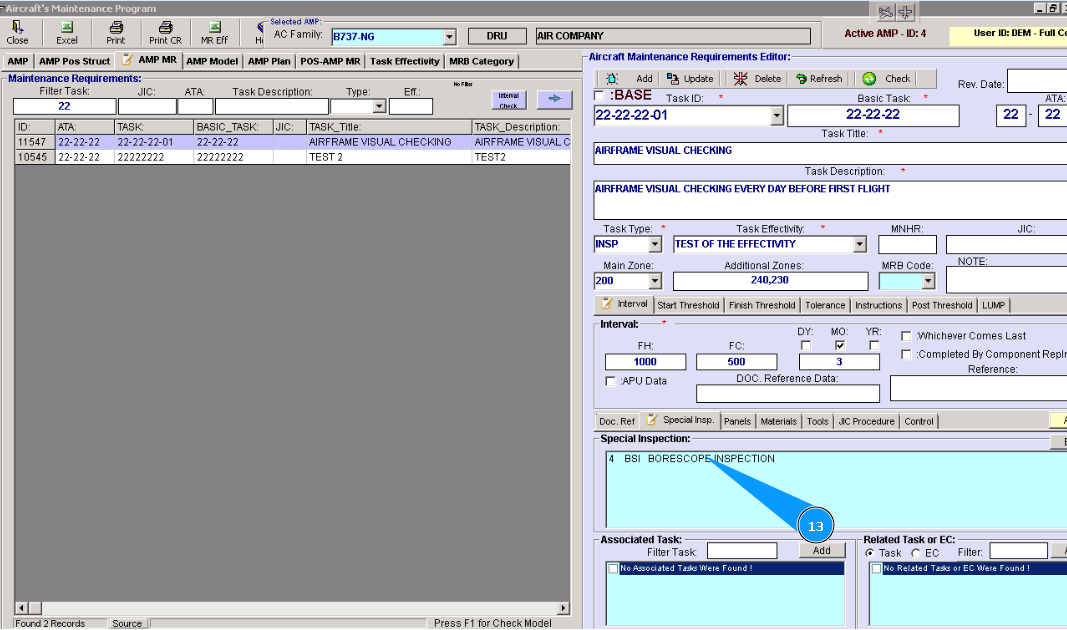

13. Check that a new line with special inspection is created in the window "Special Inspection Editor". /images/how_to/Part-M/How_To_enter_spec.instr_to_AMP_task_4.png

Note: If, during the search for inspections in the list, it did not find it necessary to add this inspection to the program. Perform items 14–20 of this instruction.

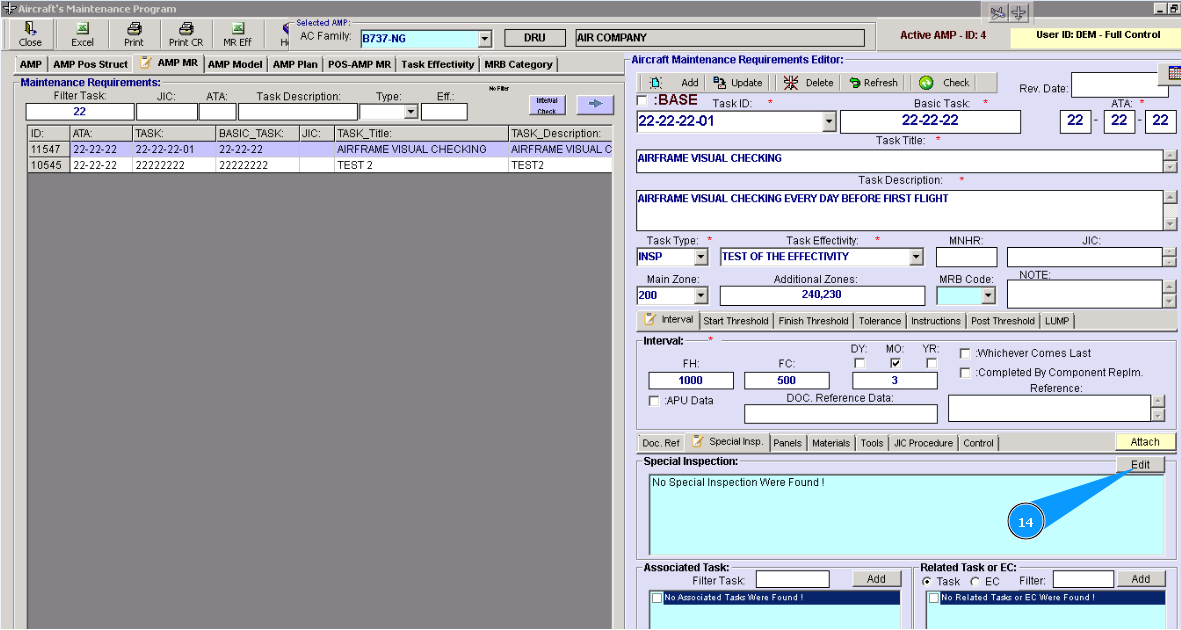

14. Return to edit mode. Click on the button "Edit". /images/how_to/Part-M/How_To_enter_spec.instr_to_AMP_task_5.png

15. Enter the abbreviation of the inspection name in the field "Inspection Type".
16. Or select from dropdown list.
17. Enter the description of the inspection in the field "Inspection Details".

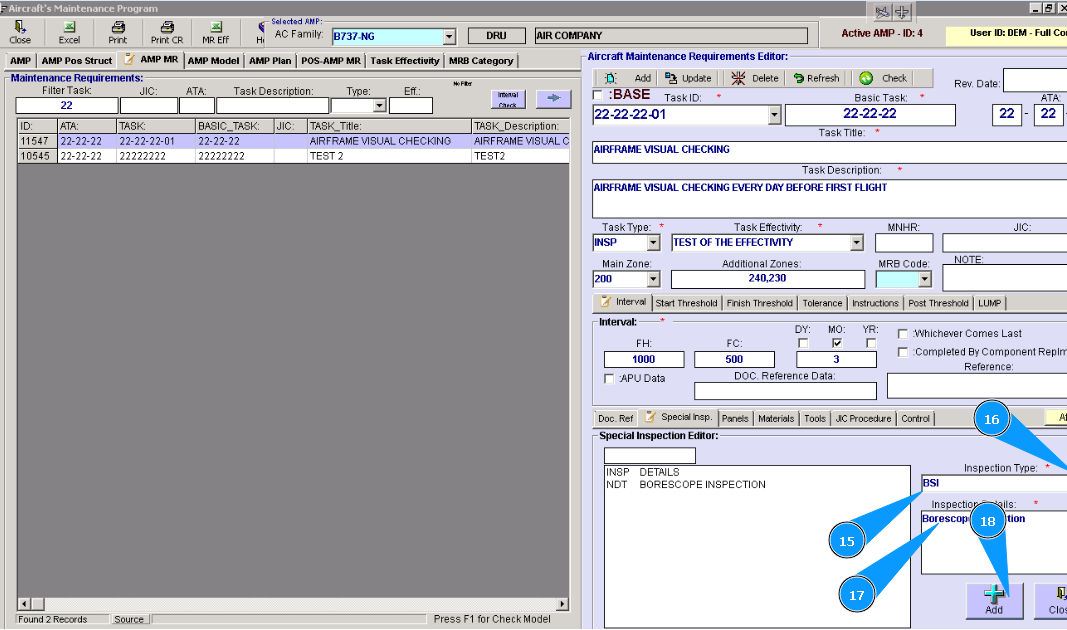

18. Click on the button **"Add" to add data to the program. /images/how_to/Part-M/How_To_enter_spec.instr_to_AMP_task_6.png

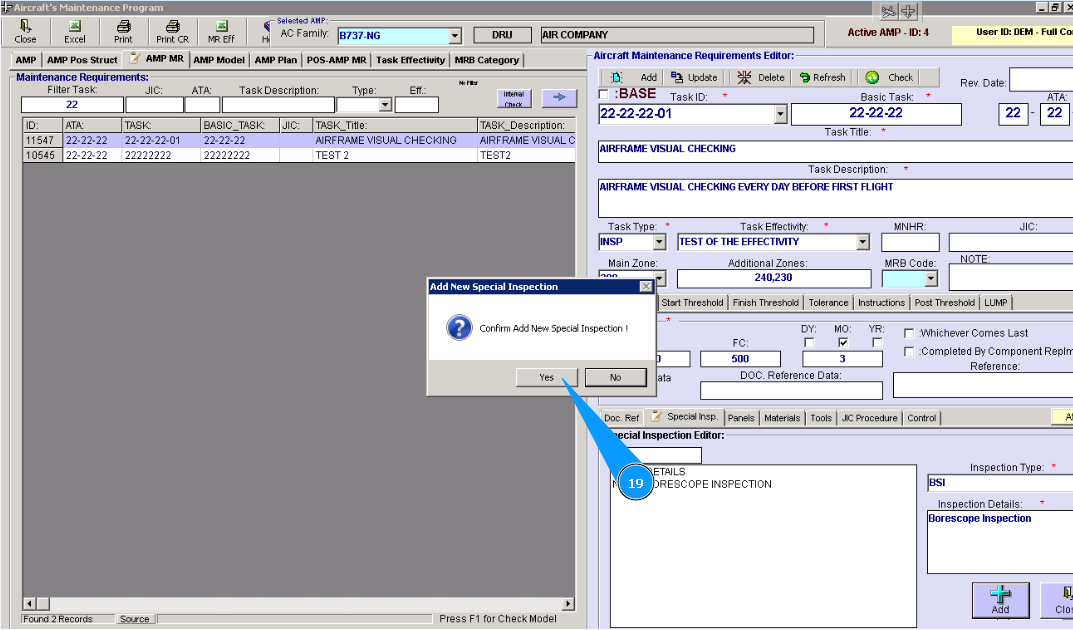

19. Click on the button "Yes", to confirm adding data to the program. /images/how_to/Part-M/How_To_enter_spec.instr_to_AMP_task_7.png

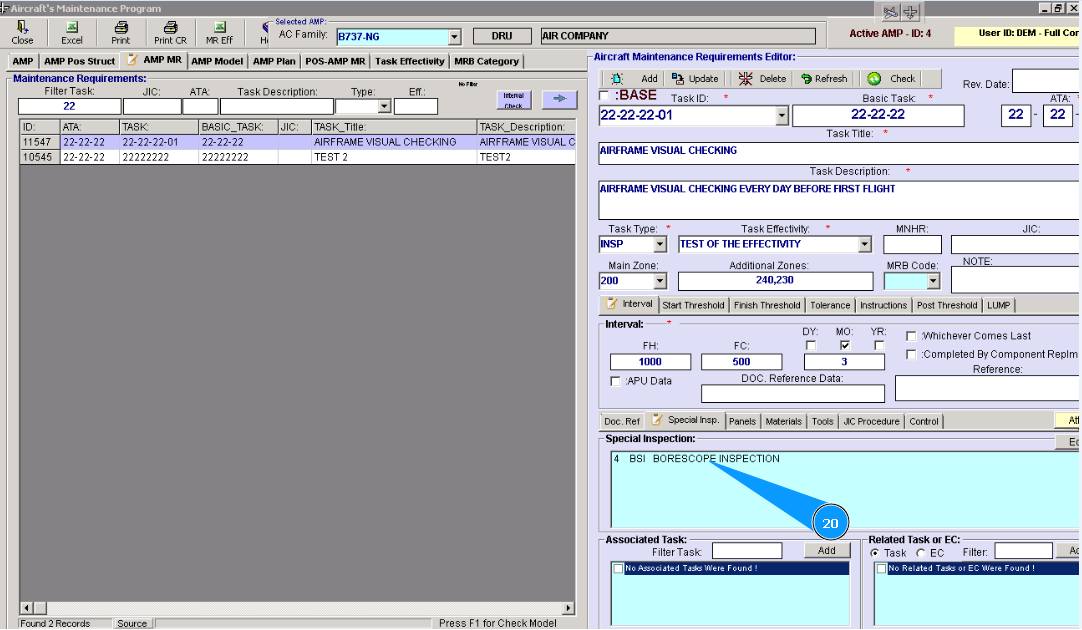

20. Check that a new line with special inspection is created in the window "Special Inspection Editor". /images/how_to/Part-M/How_To_enter_spec.instr_to_AMP_task_8.png
