How to delete component from component assembly
1. To delete a component from component assembly, please go to the tab "AMP- Maintenance Program".
2. Select operator name in the list of window "AMP- Select Operator Name".
3. Select aircraft type in the list of window "AMP for Selected- Operator".
4. Click on the button "Open", to open the general menu of AMP.

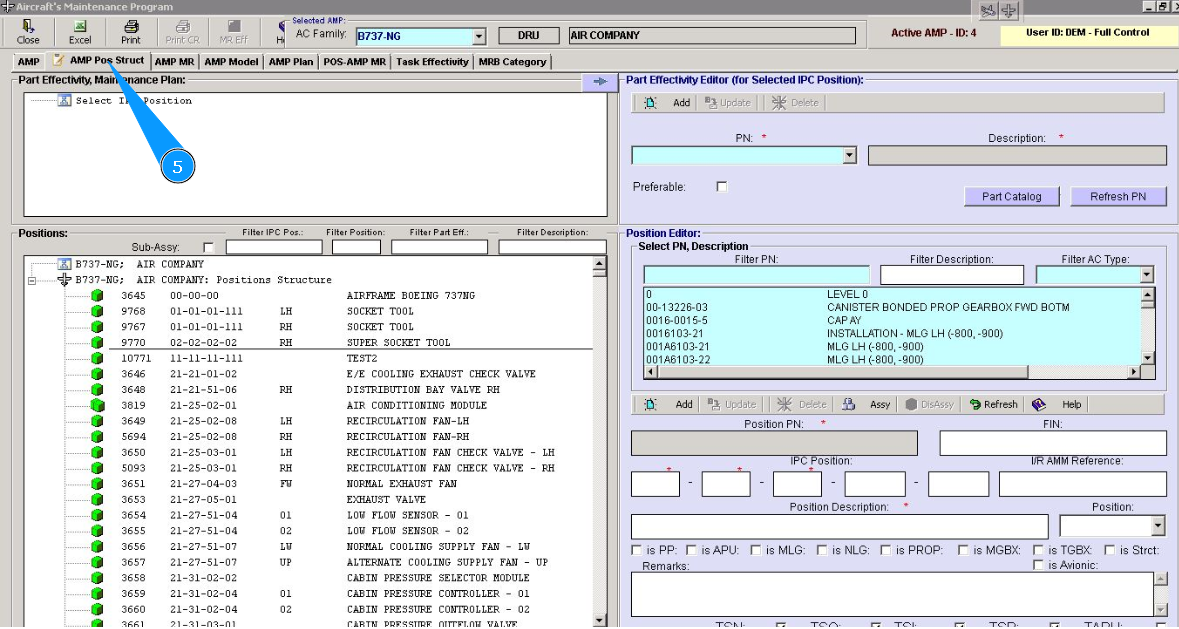

5. Then go to the tab "AMP Pos Struct".

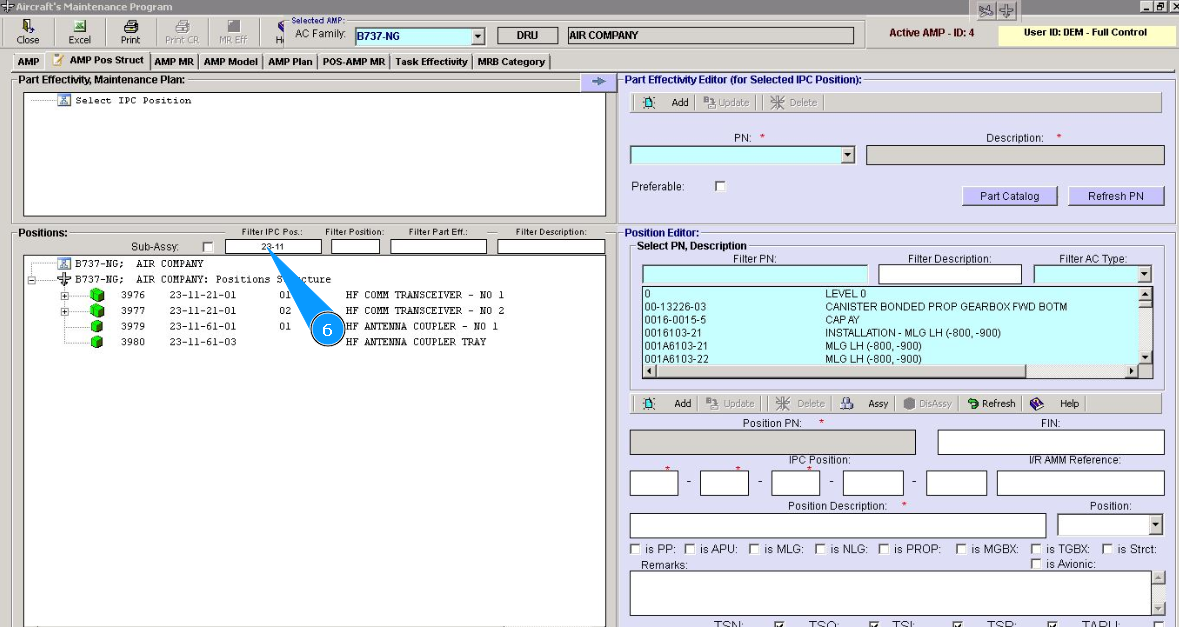

6. Enter the AIPC position number, which should be deleted from an assembly, in the field "Filter IPC position" of the window "Positions" and click on the button "Enter" on your keyboard. Note: If necessary, you can use other search criteria in the fields: "Filter Description", "Filter Position ".

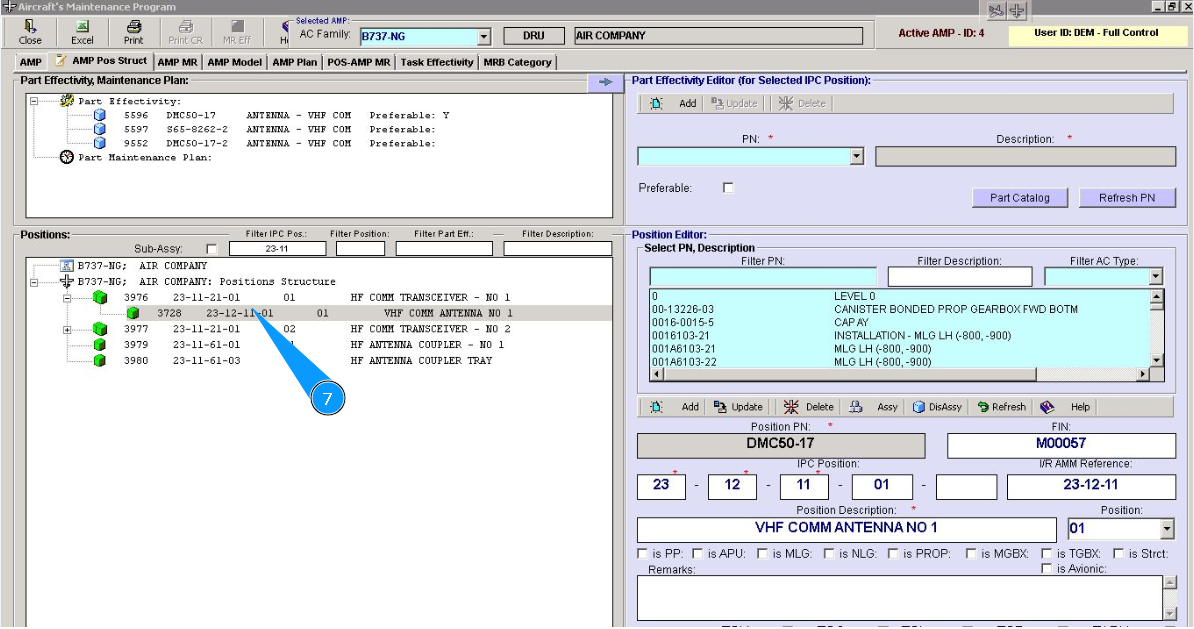

7. Select the required position from the list to delete, and click on the selected line in the window "Positions".

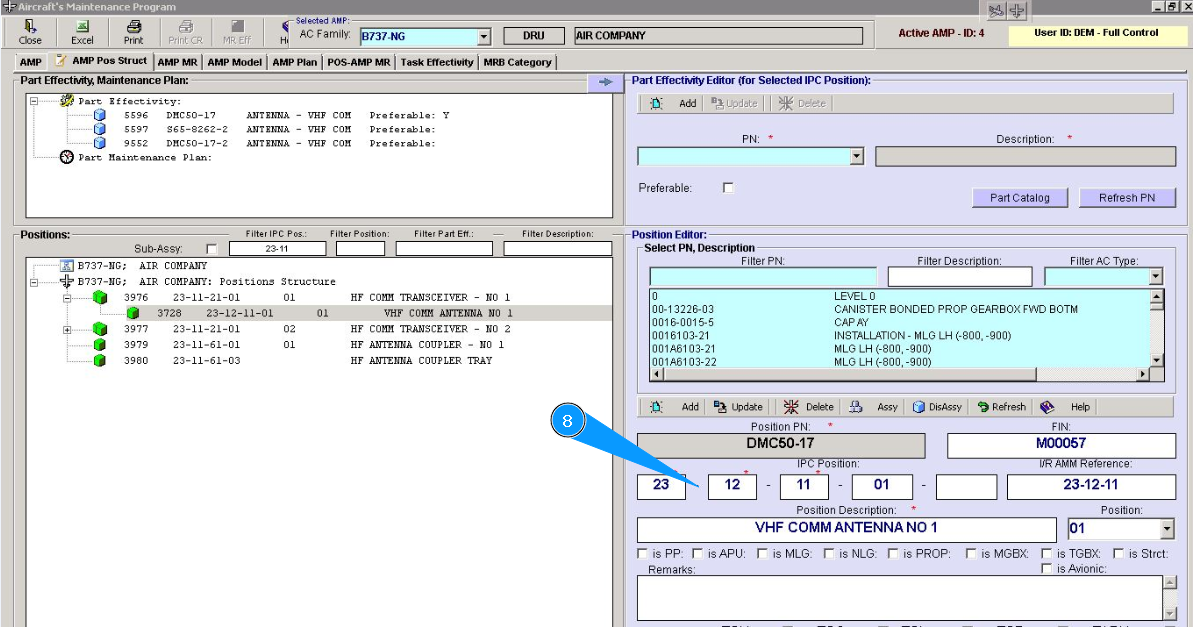

8. Check that the data for the selected position is displayed in the window "Position Editor".

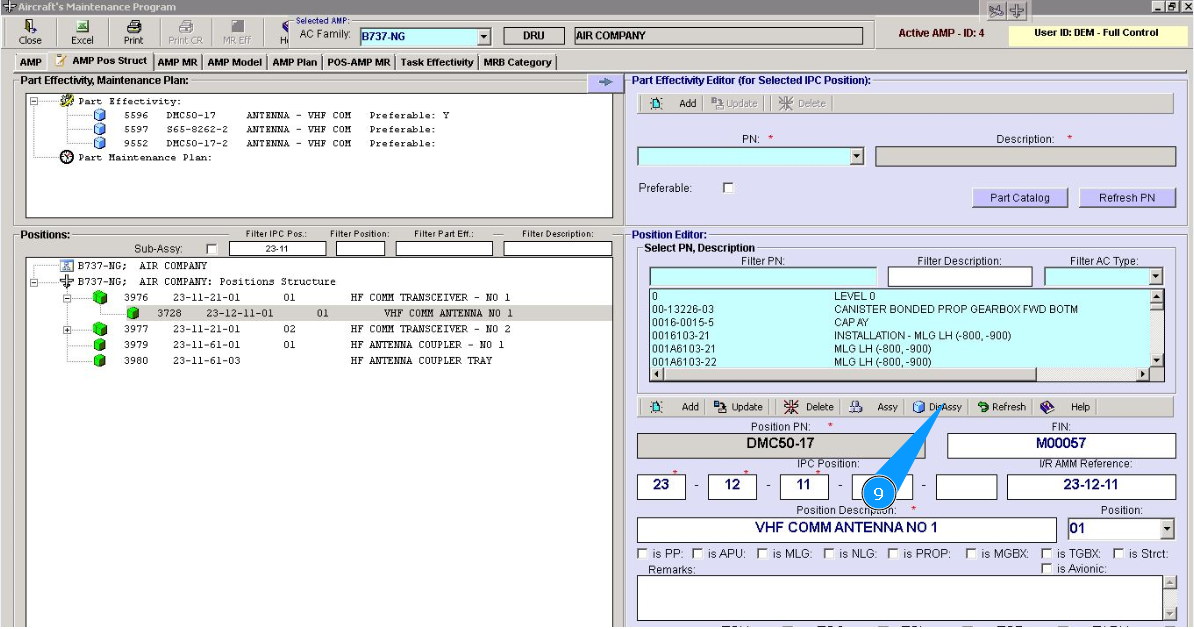

9. Click on the button "DisAssy", to delete a component from assembly.

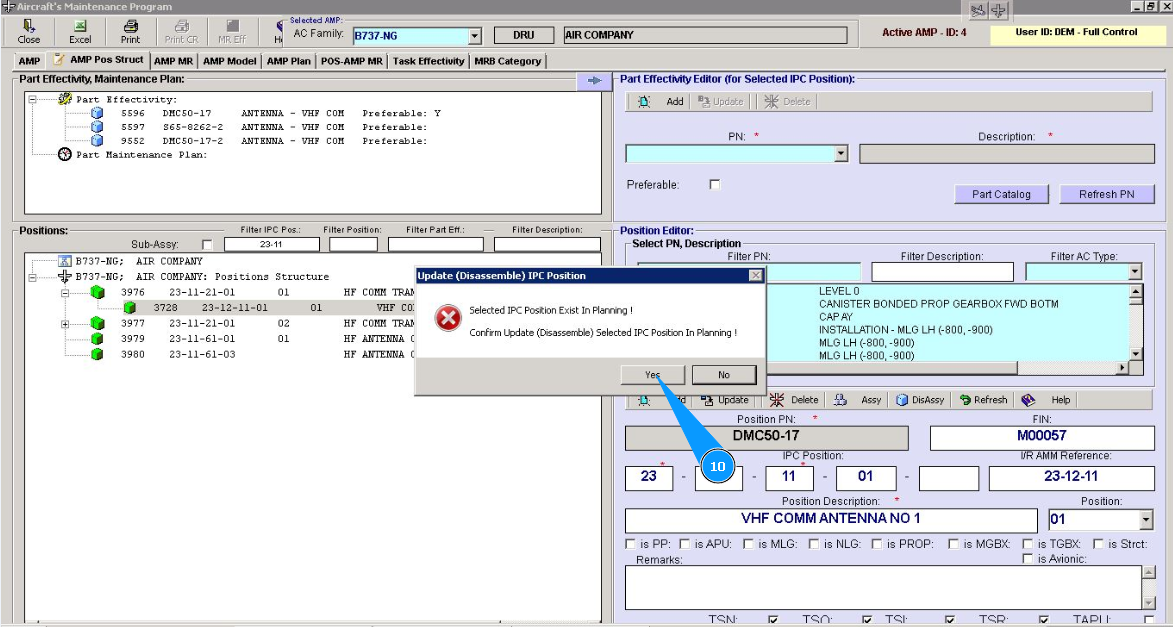

10. Click on the button "Yes", to confirm updating data in the planning module "Planing".

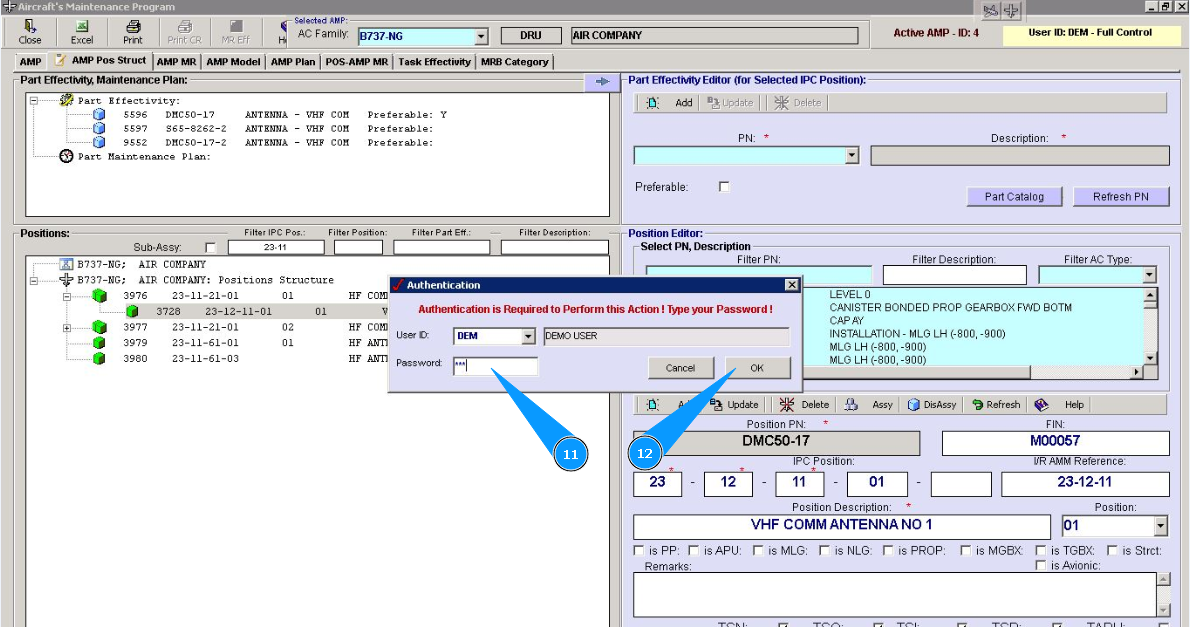

11. Enter a password from Alaskar in the field "Password".
12. Click on the button "Ok", to save data to the program.

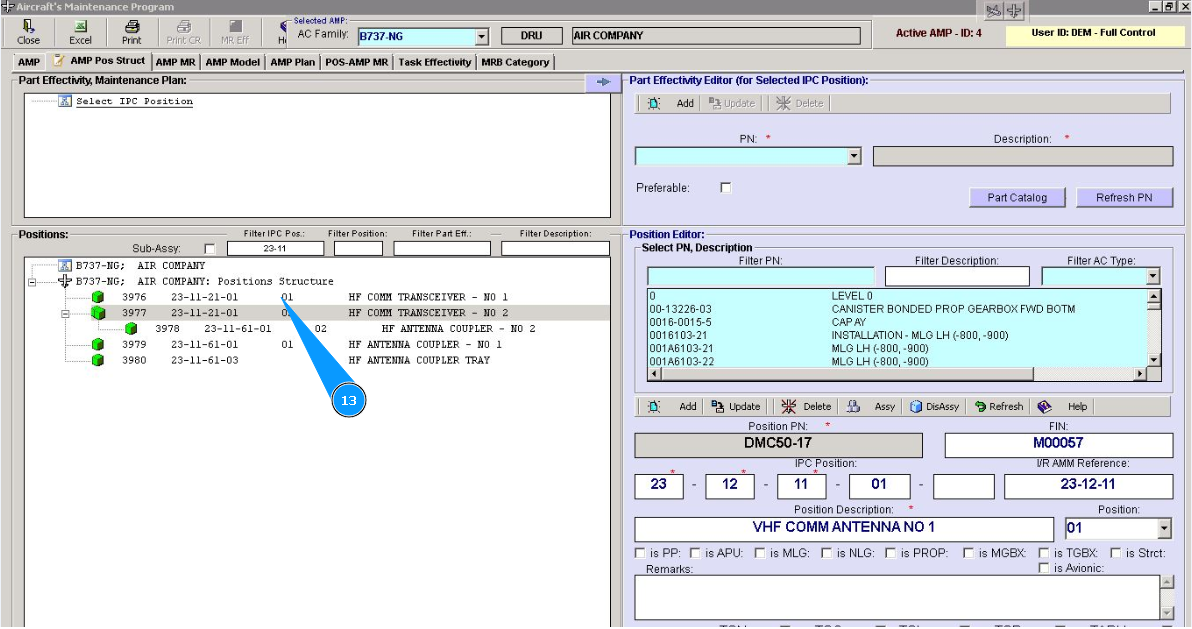

13. Check that the corresponding component was deleted from assembly and is not displayed in the window "Positions".
