How to create and manage supplementary work orders


1. For creating and managing supplementary work orders, please go to submodule "Actual Structure". /images/how_to/Part-M/How_to_create_and_print_WP_1.png

2. Enter the aircraft registration number in the list of window "Actual Structure-Select Aircraft Reg.-SN".
3. Click on the button "Actual", to open the submodule. /images/how_to/Part-M/How_to_close_WP_1.png

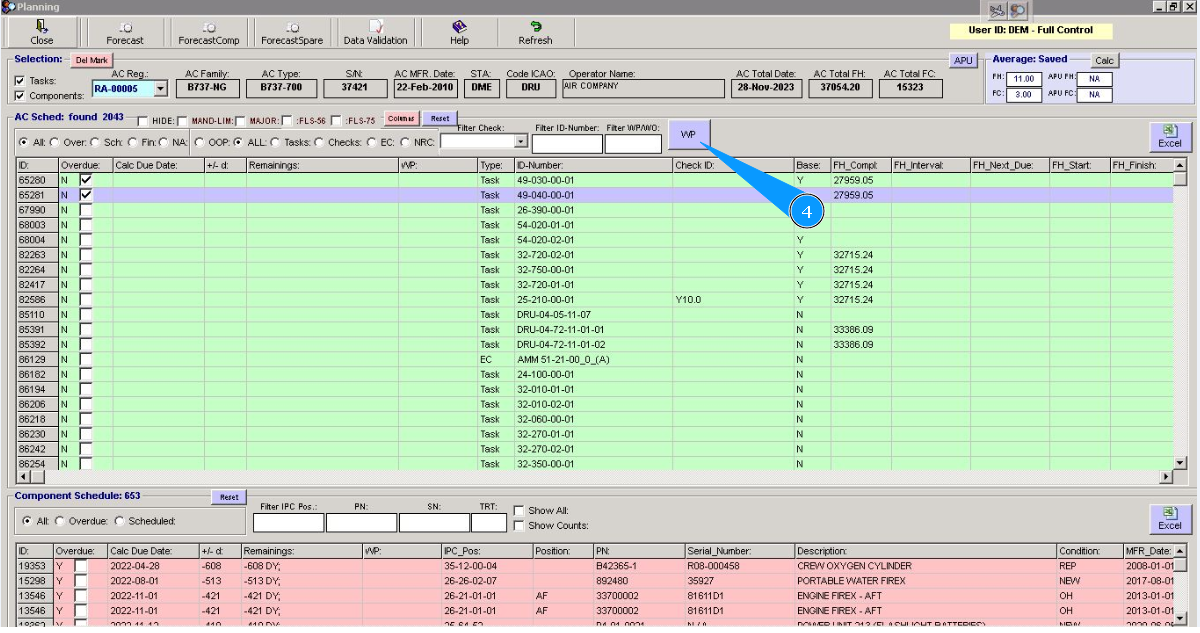

4. Click on the button "WP", to open the WP editor. /images/how_to/Part-M/How_to_create_Sup_WO_0.1.png

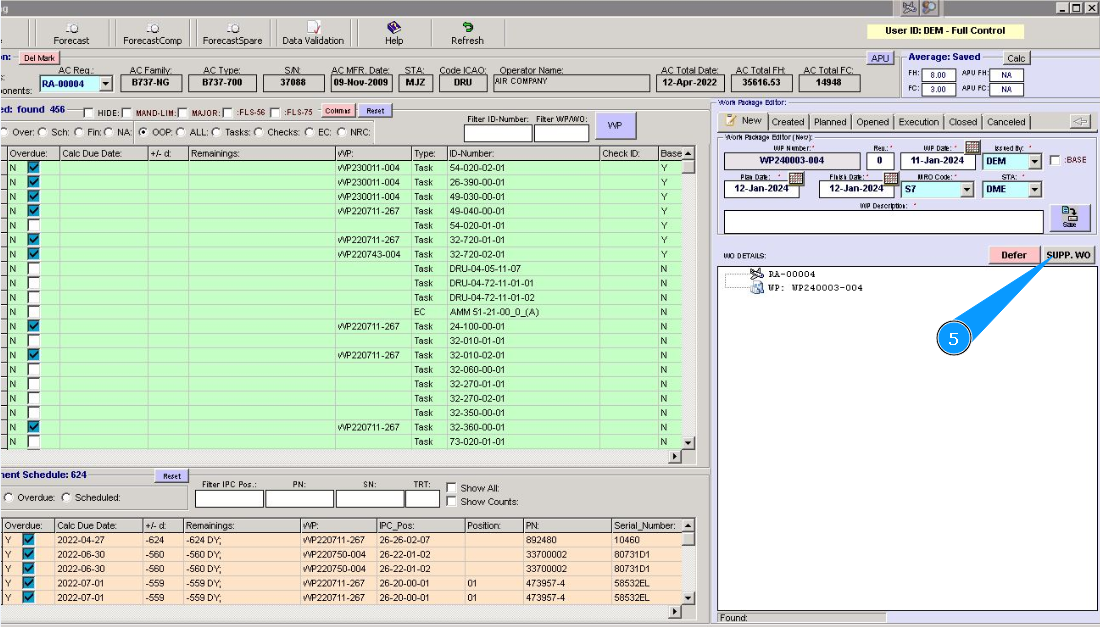

5. Click on the button "SUPP.WO", to open the supplementary WO editor. /images/how_to/Part-M/How_to_create_Sup_WO_1.png

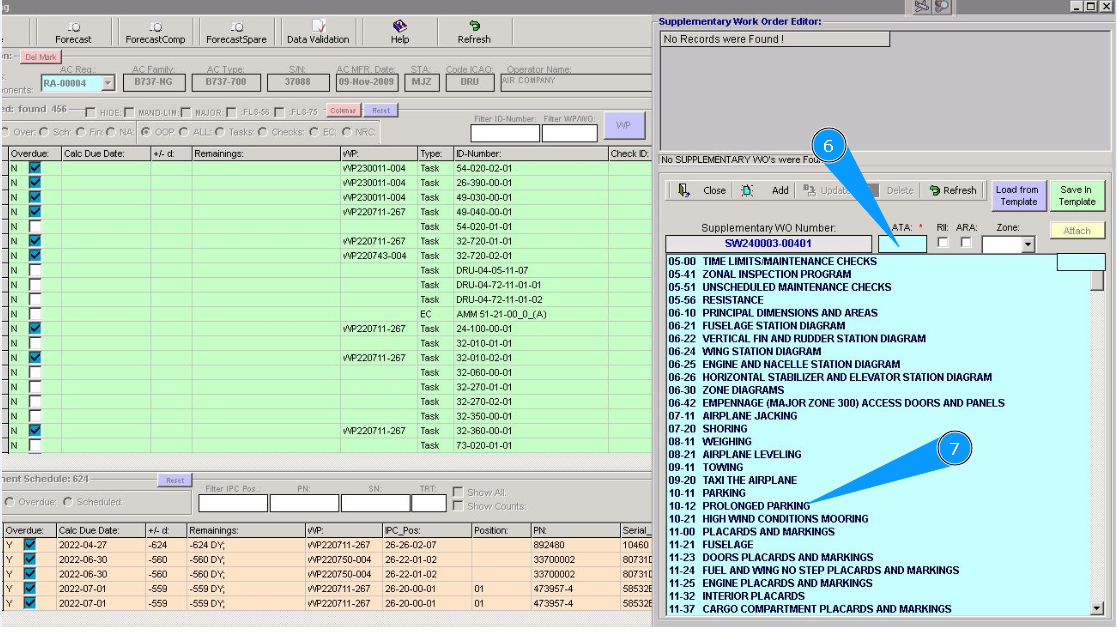

6. Click in the field "ATA", to select the corresponding chapter.
7. Select the corresponding chapter from the list, move the slider up or down, and click on the necessary line with ATA.

Note: Number of supplementary WO is automatically generated, without the possibility of editing, in the field "Supplementary WO Number"

/images/how_to/Part-M/How_to_create_Sup_WO_2.png

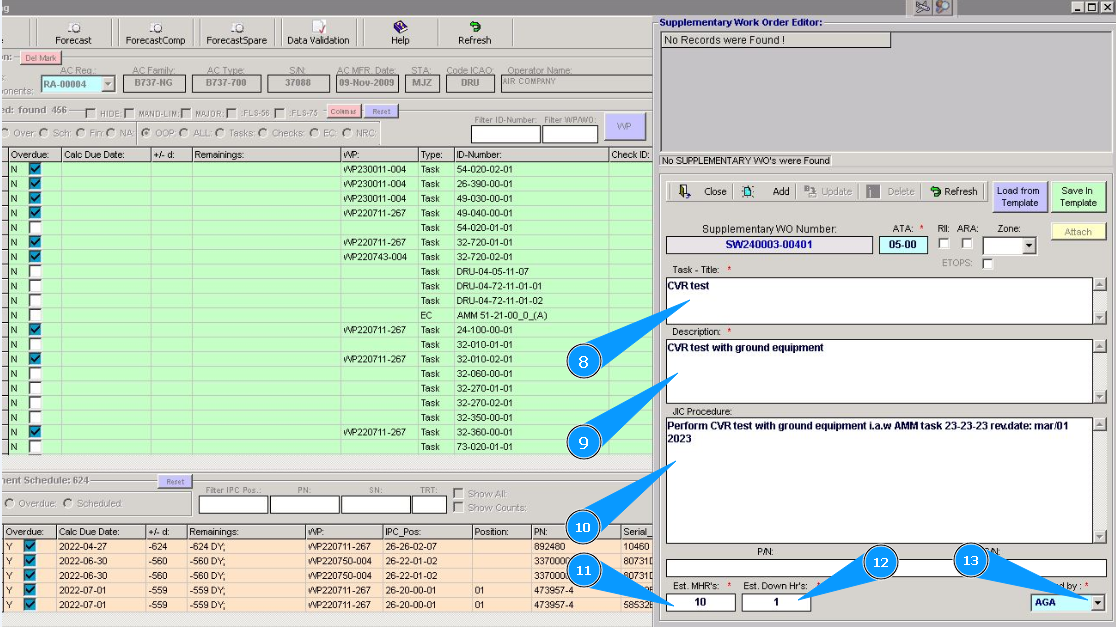

8. Enter the name of the supplementary WO in the window "Task Title".
9. Enter the description of the supplementary WO in the window "Task Description".
10. Enter short performing procedure of supplementary WO in the window "Jic procedure".
11. Enter estimated man-hours for WO in the field "Est.MHR's".
12. Enter the estimated time of downtime of aircraft during WO performing in the field "Est.Dowm HR's".
13. Enter the login of the creator of the supplementary WO in the field "Issued by" or select the form dropdown list. /images/how_to/Part-M/How_to_create_Sup_WO_3.png

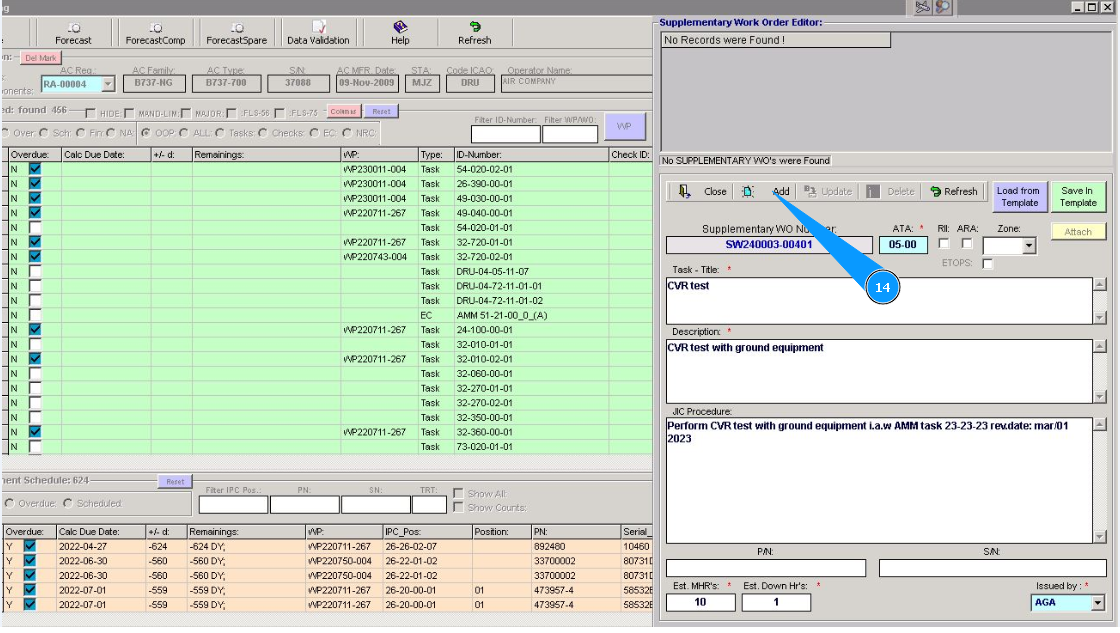

14. For adding supplementary WO to the work package работ, click on the button "Add".

Note: If you need to create a supplementary WO as a template:

  • Click on the button "Save in Template".
  • Enter a password from Alaskar in the field "Password".
  • Click on the button "Ok", to save SWO to Templates.

/images/how_to/Part-M/How_to_create_Sup_WO_4.png

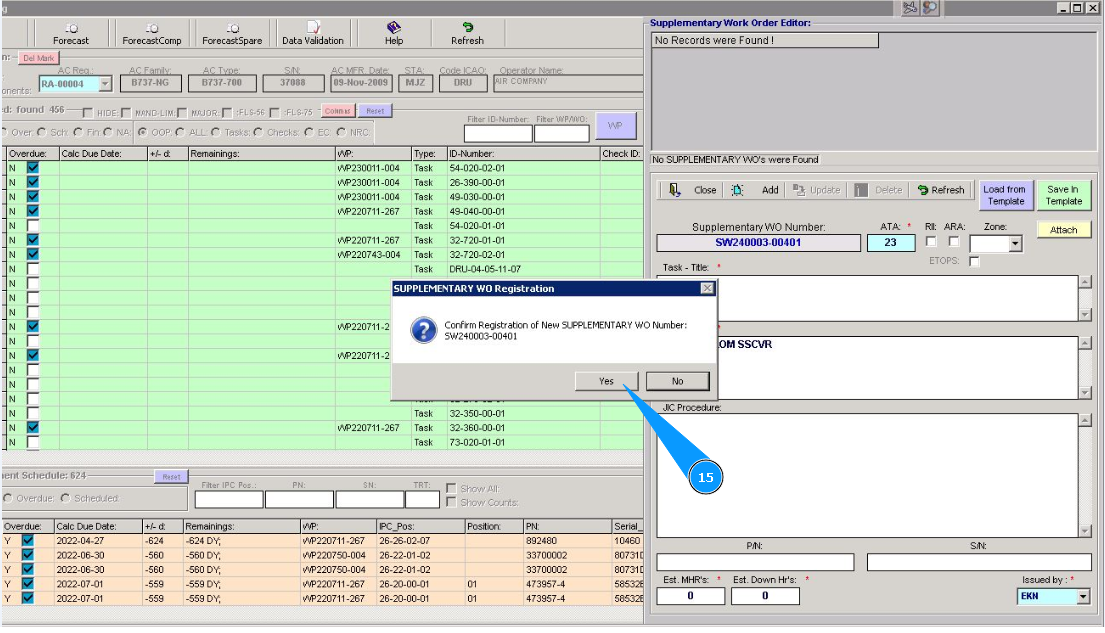

15. Click on the button "Yes", for confirming loading supplementary WO into the program. /images/how_to/Part-M/How_to_create_Sup_WO_5.png

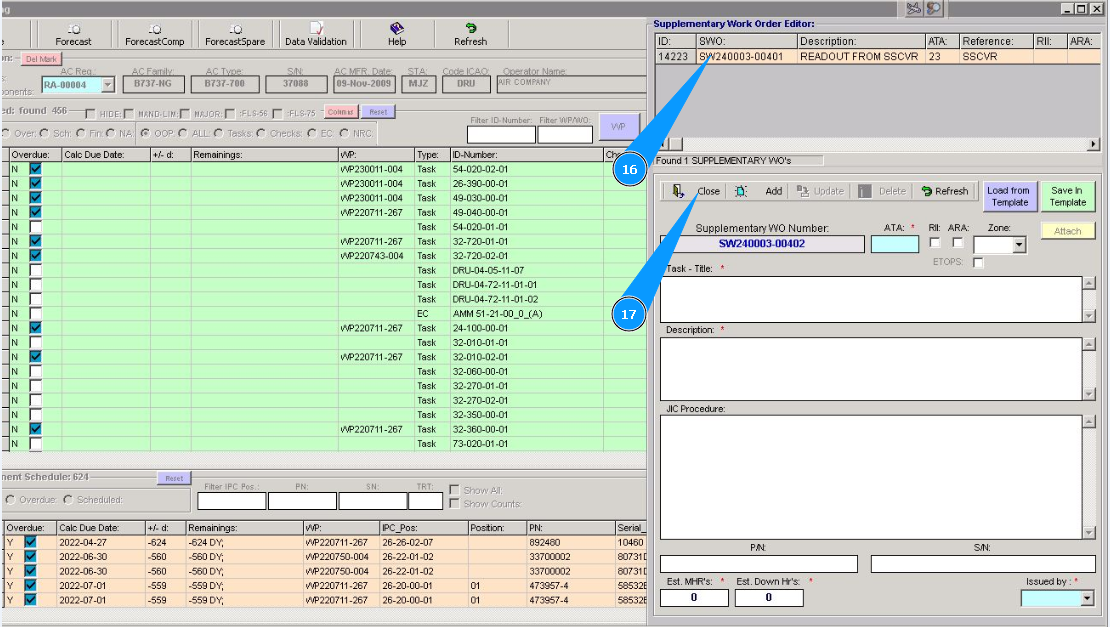

16. Check that the line with SWO appears in the window "Supplementary Work Order Editor". 17. Click on the button "Close", to exit from editor mode. /images/how_to/Part-M/How_to_create_Sup_WO_6.png

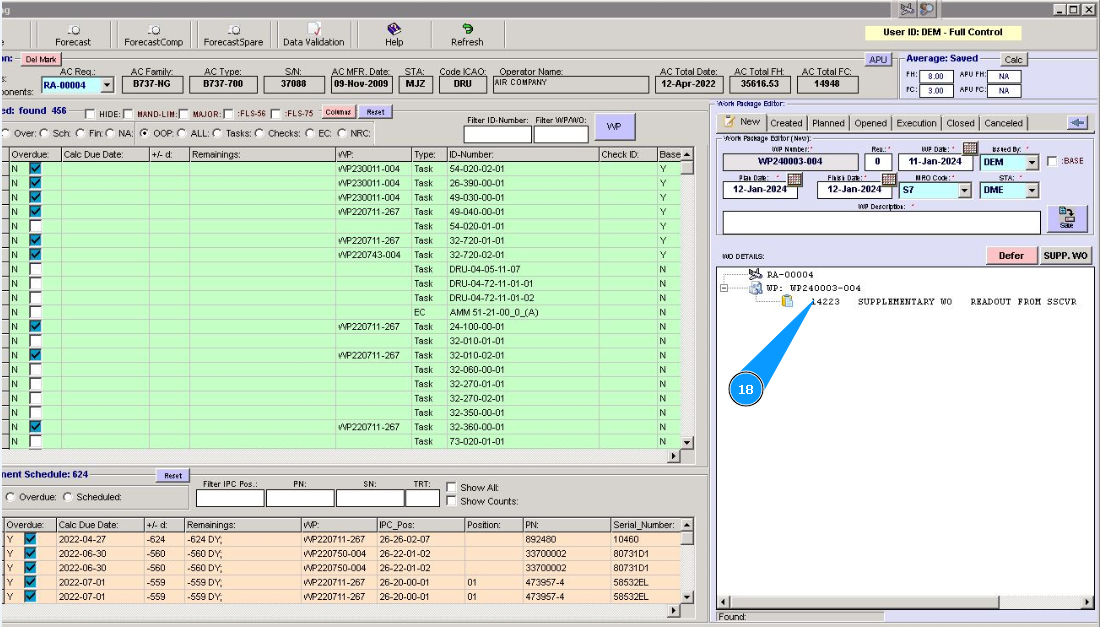

18. Check that the line with SWO is presented in the work package in the window "WO Details". /images/how_to/Part-M/How_to_create_Sup_WO_7.png

Note: If necessary, include supplementary WO in the work package from templates:

  • Click on the button "Load from Template". Select the necessary supplementary WO from the list. Click on the corresponding line.
  • Click on the button "Add", to add SWO to the work package.
  • Click on the button "Yes", to confirm adding supplementary WO to the work package.
