How to control APU start in flight


1. For control quantity and parameters, APU starts in flight, please go to submodule  "AC Times". /images/how_to/Part-M/How_To_manage_AC_times_1.png

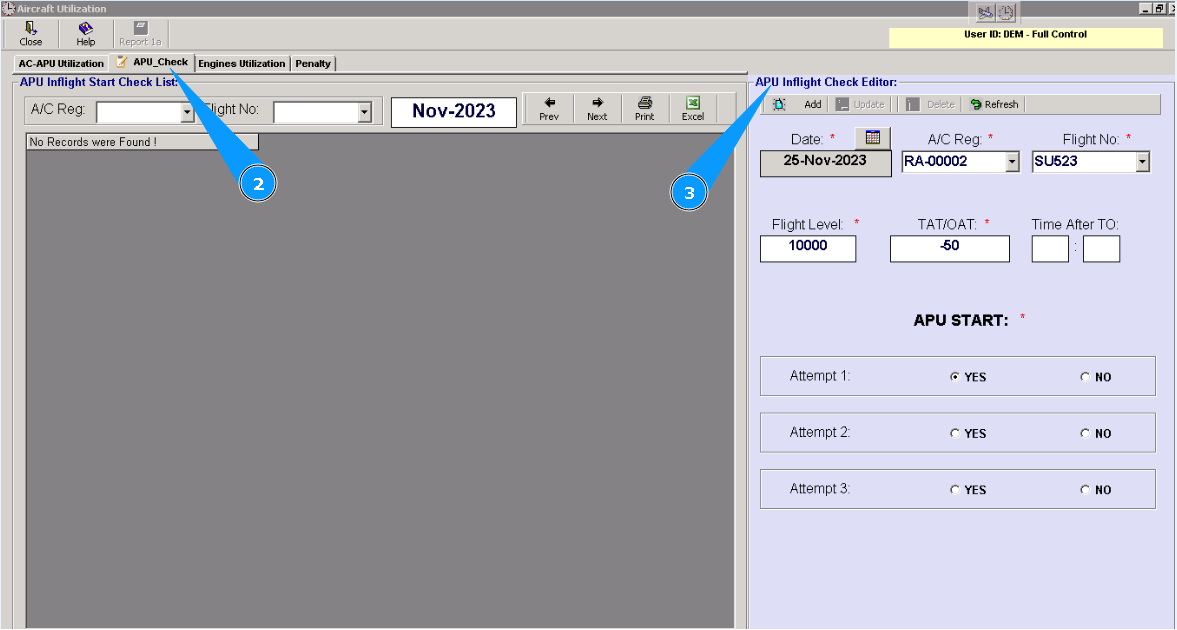

2. Then go to tab "APU Check".
3. Data of in flight APU starting should be entered in the "APU Inflight Check Editor". /images/how_to/Part-M/How_To_control_APU_check_1.png

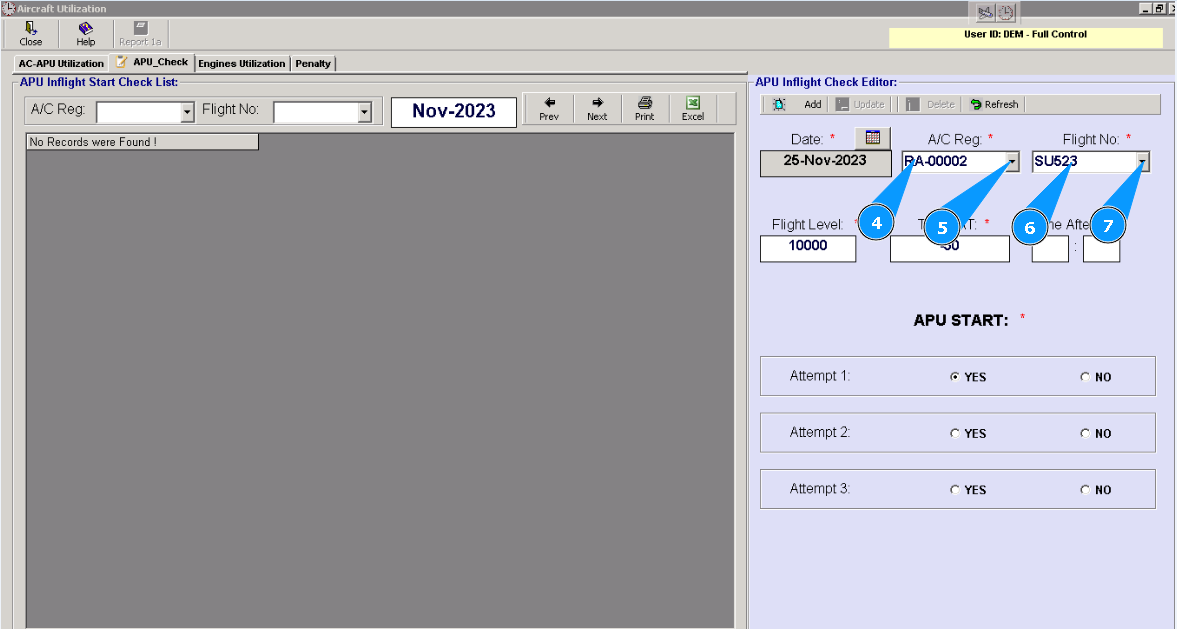

4. Enter the aircraft registration number in the field "A/C Reg.".
5. Or select from dropdown list.
6. Enter the flight number in the field "Flight №".
7. Or select from dropdown list.

Note: Data entered is automatically filled in, but if necessary you can correct it, in this case click on the calendar symbol in the field "Date".

/images/how_to/Part-M/How_To_control_APU_check_2.png

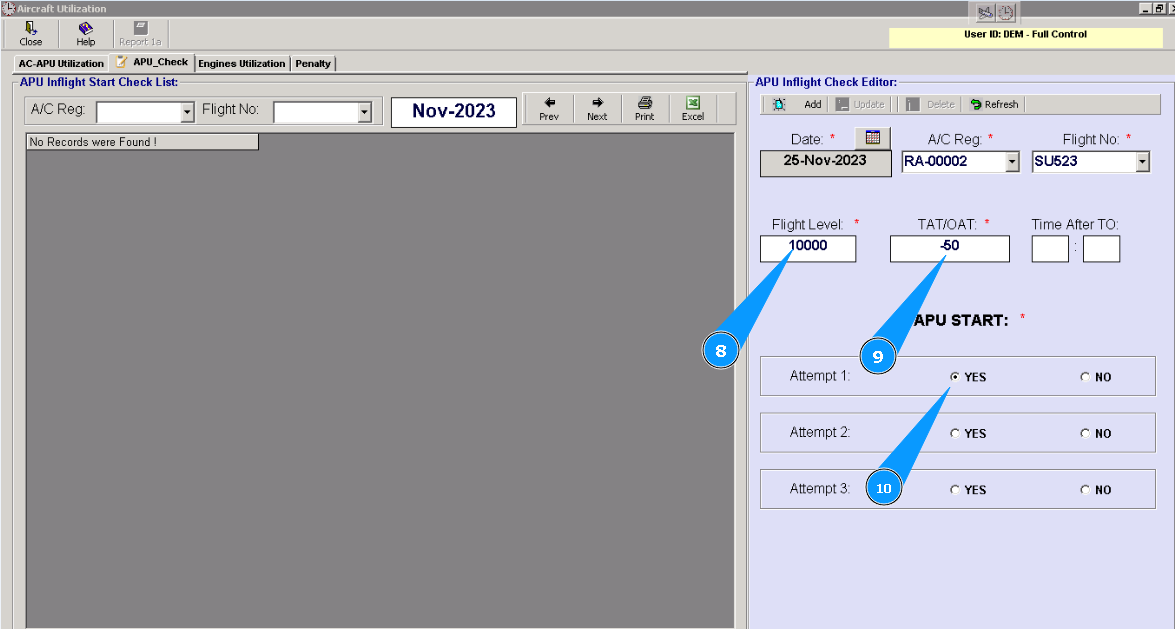

8. Enter the flight level where the APU has been started in the field "Flight Level".
9. Enter the air temperature on the flight level in the field "TAT/OAT".
10. Tick the quantity of APU starts in the field "APU Start".
/images/how_to/Part-M/How_To_control_APU_check_3.png

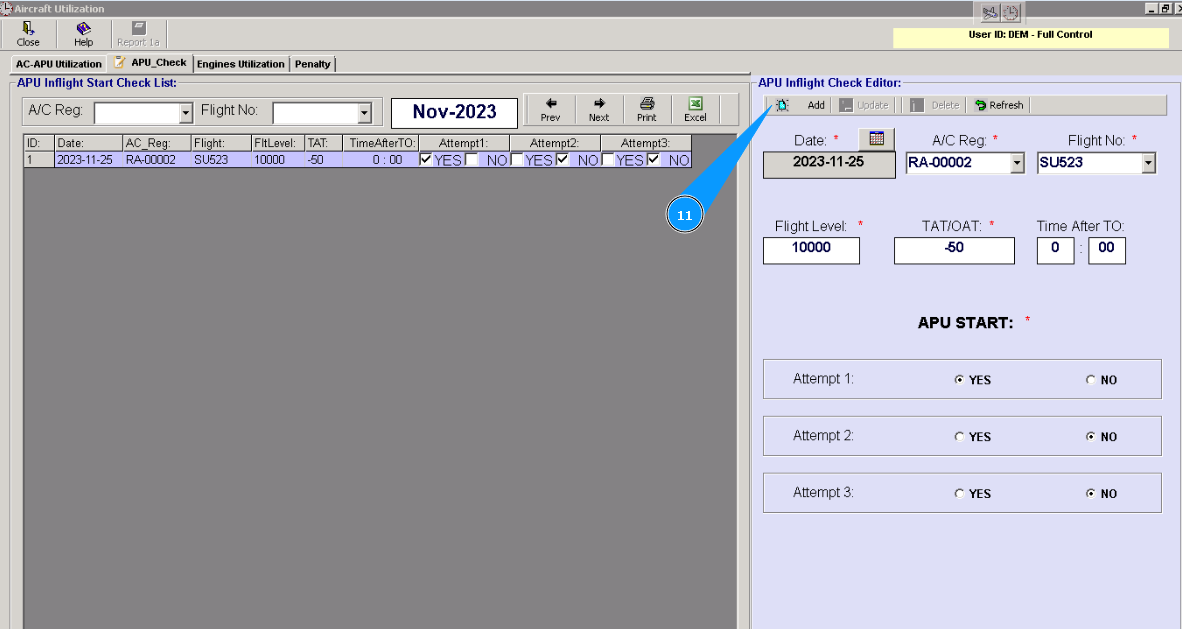

11. Click on the button **"Add" to add data to the program. /images/how_to/Part-M/How_To_control_APU_check_4.png

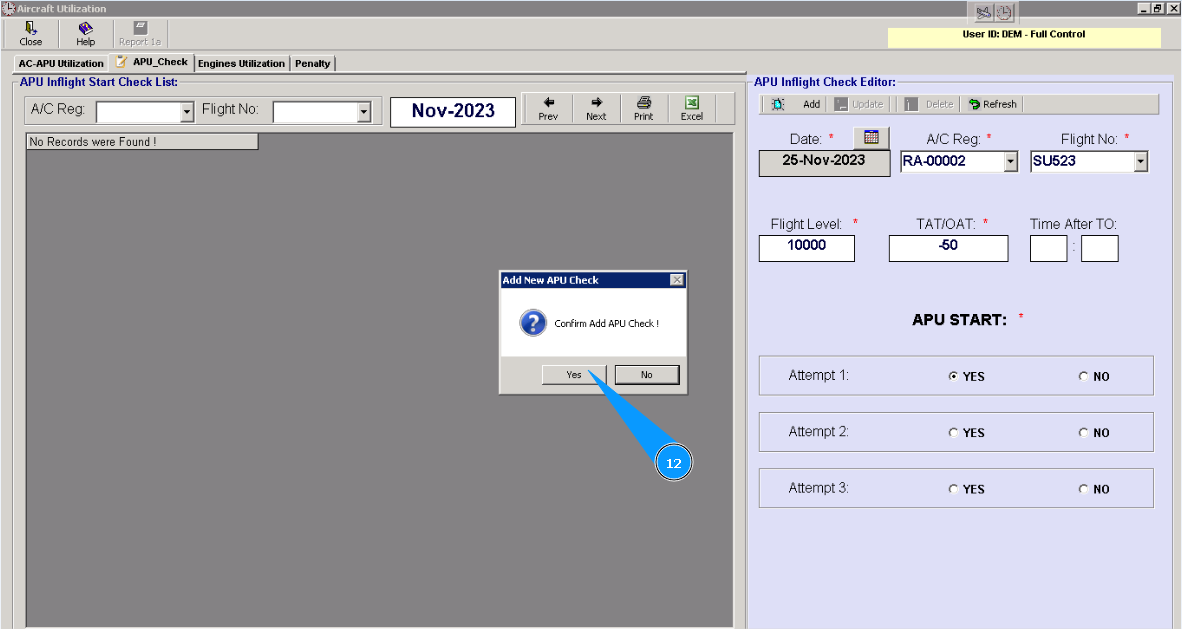

12. Click on the button "Yes", to confirm adding data to the program. /images/how_to/Part-M/How_To_control_APU_check_5.png

13. Check that a new line with APU start parameters appears in the window "APU Inflight Start Check List". /images/how_to/Part-M/How_To_control_APU_check_6.png
