How to add AMP task to check


1. For adding AMP task to check, please go to submodule "AMP- Maintenance Program". /images/how_to/Part-M/How_To_check_AMP_1.png

2. Select the company name in the list of window "AMP- Select Operator Name".
3. Select aircraft type in the list of window "AMP for Selected- Operator".
4. Click on the button "Open", for opening AMP menu. /images/how_to/Part-M/How_To_check_AMP_2.png

5. Then go to tab "AMP Plan".
6. Find the necessary task in the window "Maintenance Requirements".
7. Enter task number in the field "Filter Task" and press on the button "Enter" on your keyboard.

Note: If necessary you can use other searching filters: "Filter ATA", "Filter Task Description", "Filter Type".

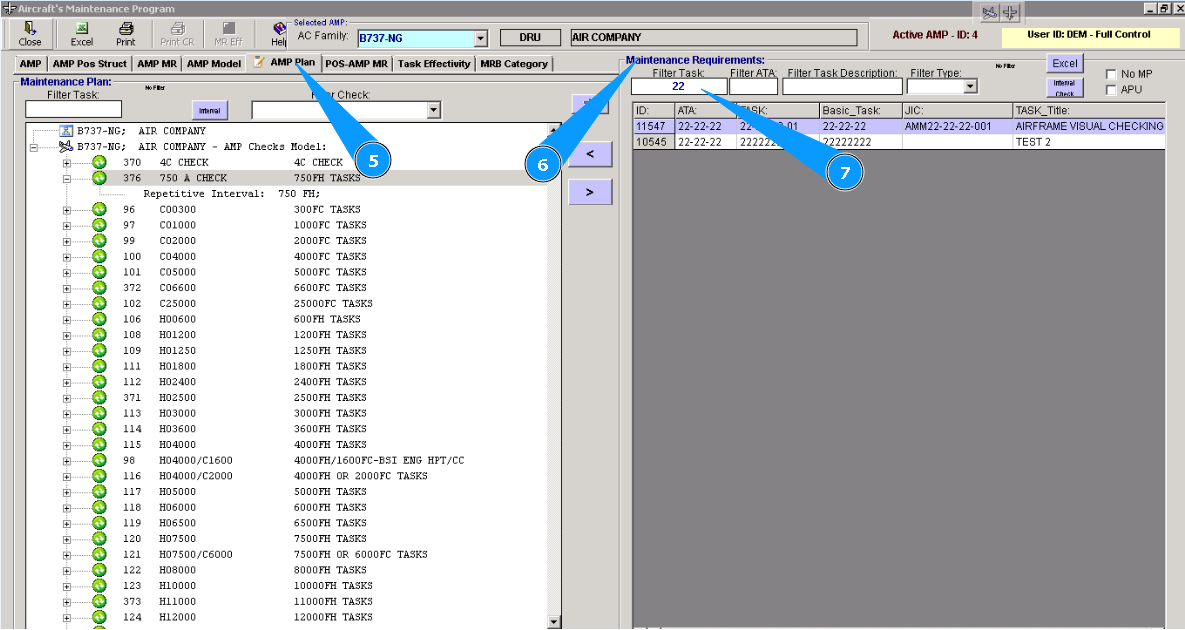

/images/how_to/Part-M/How_To_add_task_to_check_1.png

8. Select corresponding task, click on the line in the window "Maintenance Requirements".
9. Select the corresponding check and click on the line in the window "Maintenance Plan".

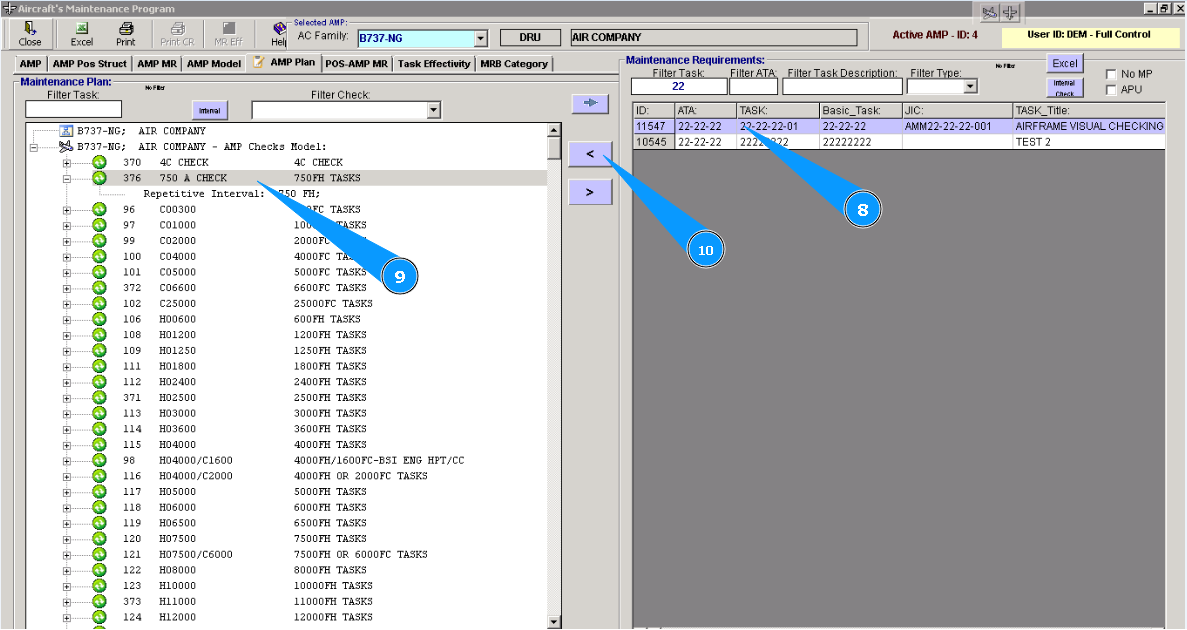

10. Click on the button "with an arrow", for adding data to the selected check. /images/how_to/Part-M/How_To_add_task_to_check_2.png

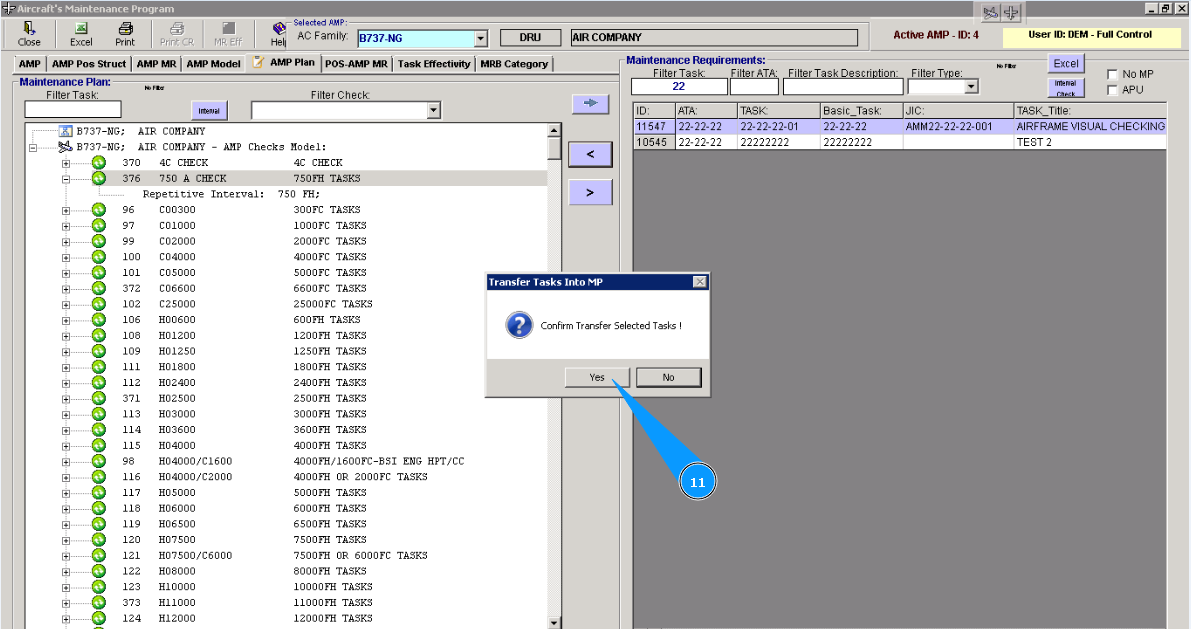

11. Click on the button "Yes", to confirm adding data to the program. /images/how_to/Part-M/How_To_add_task_to_check_3.png

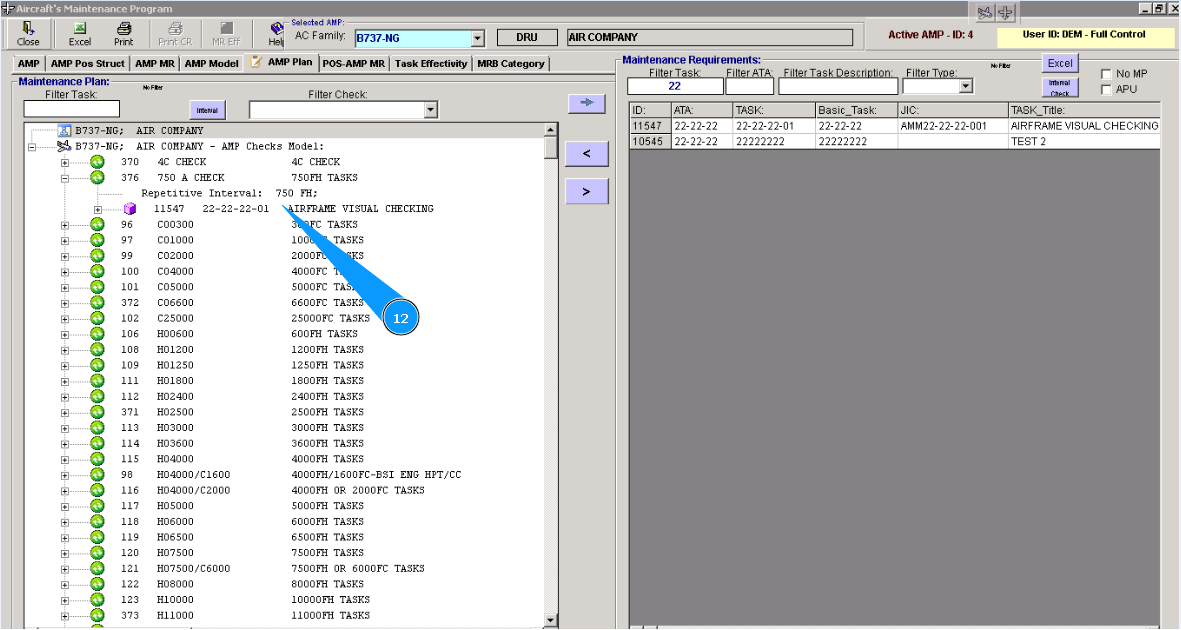

12. Check that new line with corresponding task is created in the applicable check in the window "Maintenance Plan". /images/how_to/Part-M/How_To_add_task_to_check_4.png
