How to close a NRC after completion


1. To close the WP NRC after completion, go to the submodule "WP Completion". /images/how_to/Line Maintenance/How_to_complete_WP_task_card_1.png

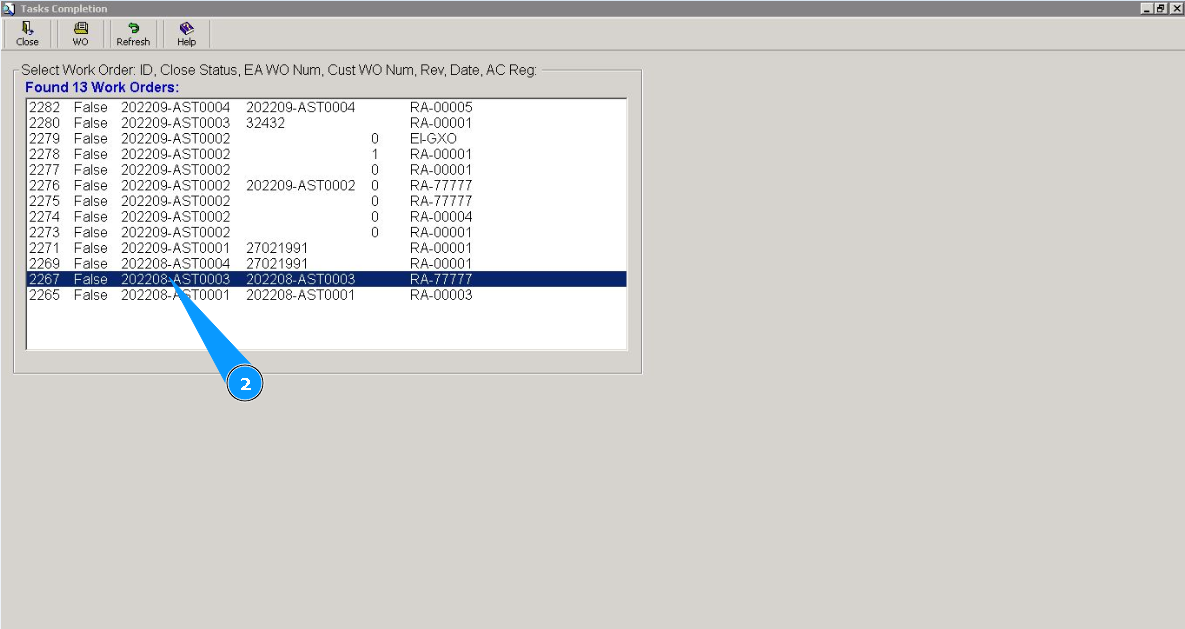

2. Select your required WP from the list of WO for completing and click on the corresponding line. /images/how_to/Line Maintenance/How_to_complete_WP_NRC_1.png

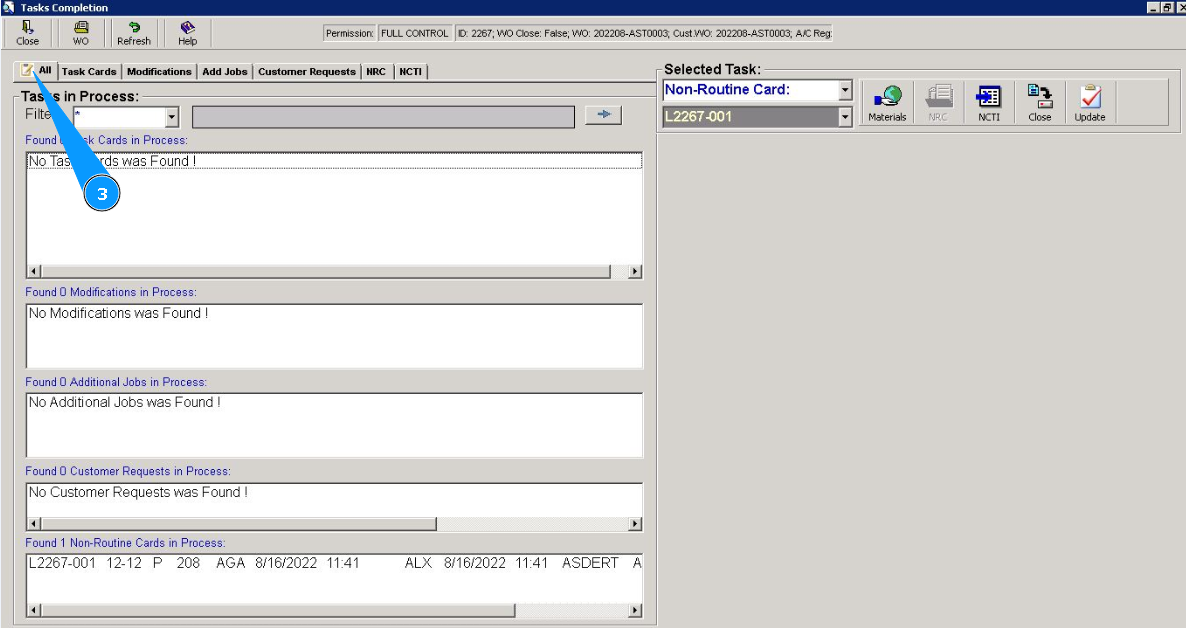

3. Then go to the tab "All".

Note: If necessary, it is possible to mark the completion in the tab "NRC".

/images/how_to/Line Maintenance/How_to_complete_WP_NRC_2.png

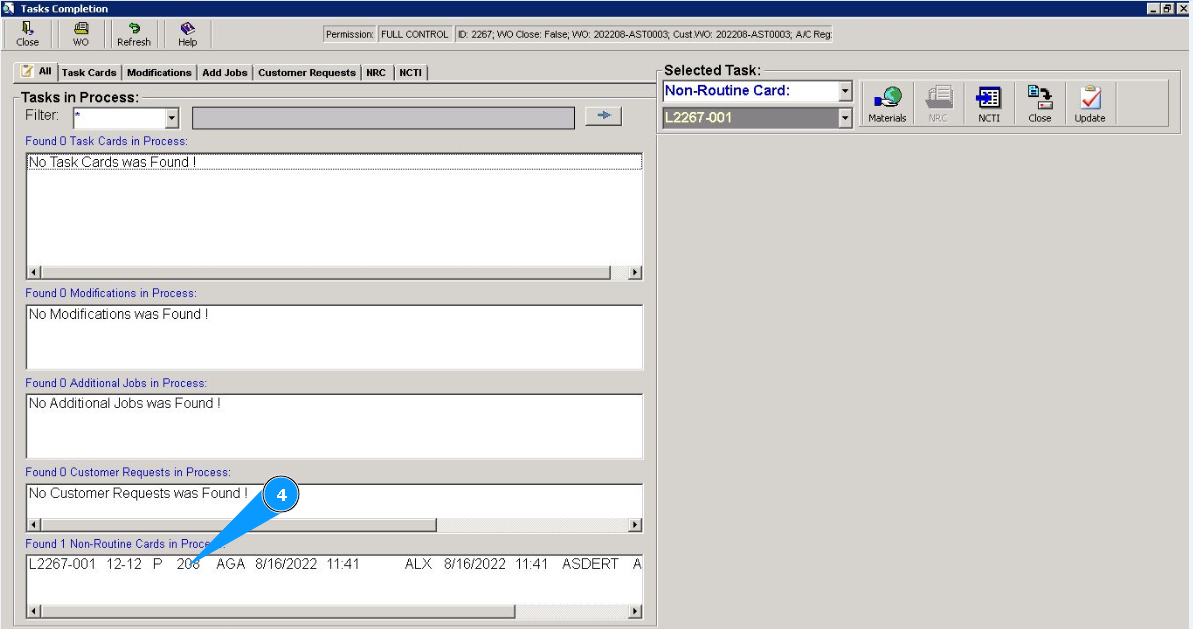

4. Select the NRC for completing from the list in the window "Non-Routine Cards in process". Click on the line with NRC. /images/how_to/Line Maintenance/How_to_complete_WP_NRC_3.png

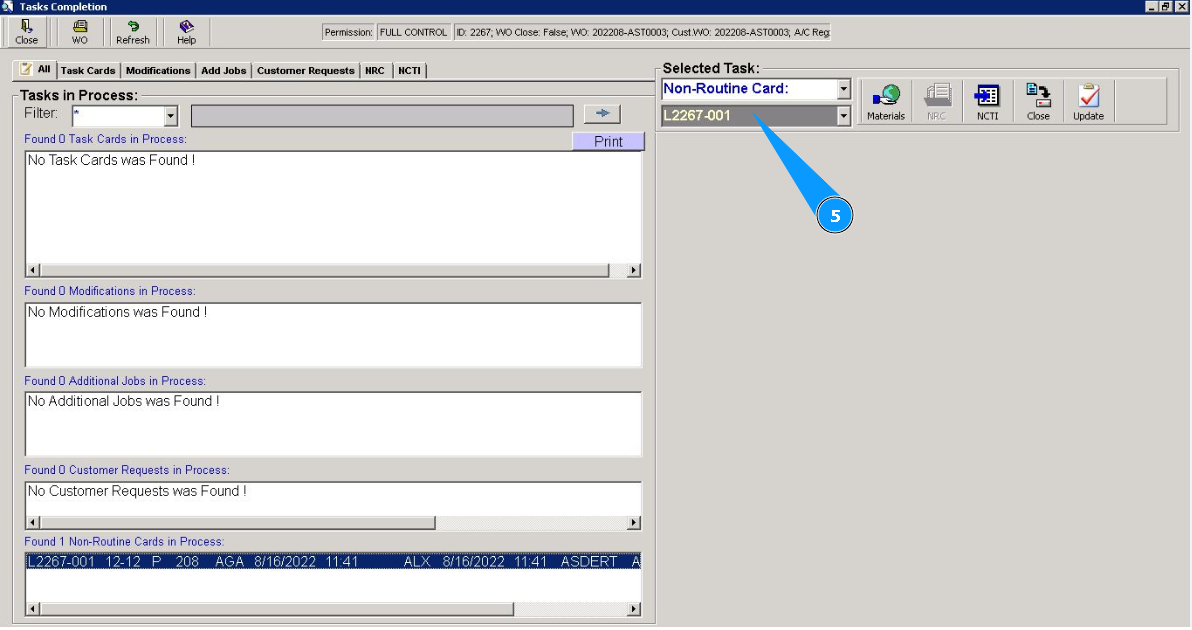

5. Check that the NRC number is displayed in the field "Selected Tasks". /images/how_to/Line Maintenance/How_to_complete_WP_NRC_4.png

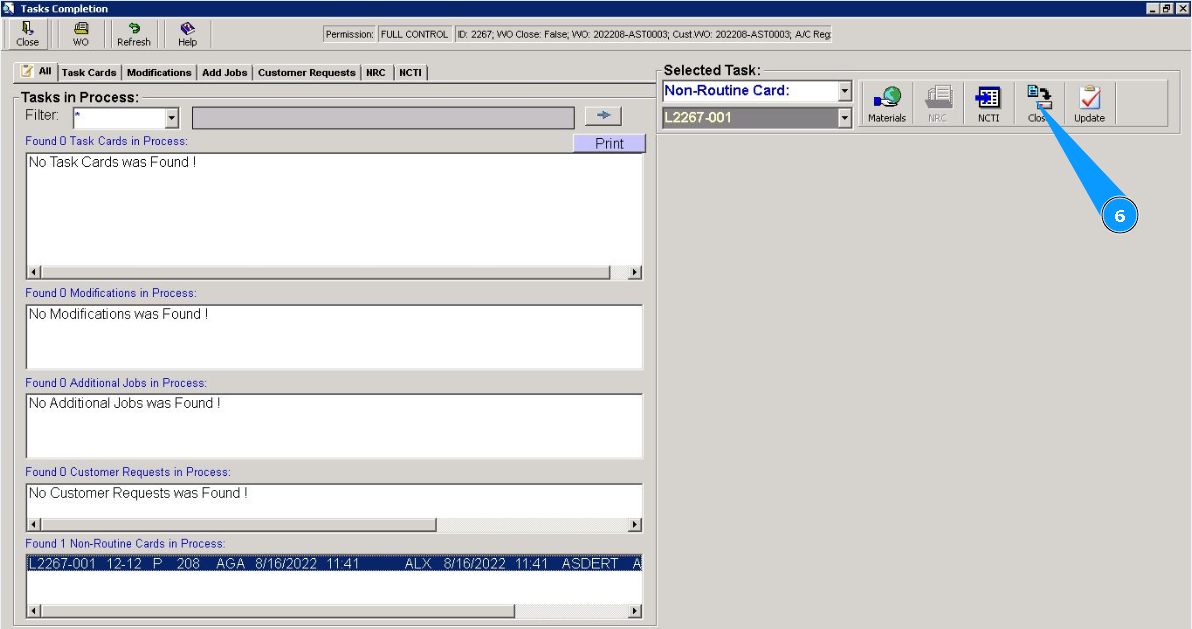

6. Click on the button "Close", to open the NRC editor. /images/how_to/Line Maintenance/How_to_complete_WP_NRC_5.png

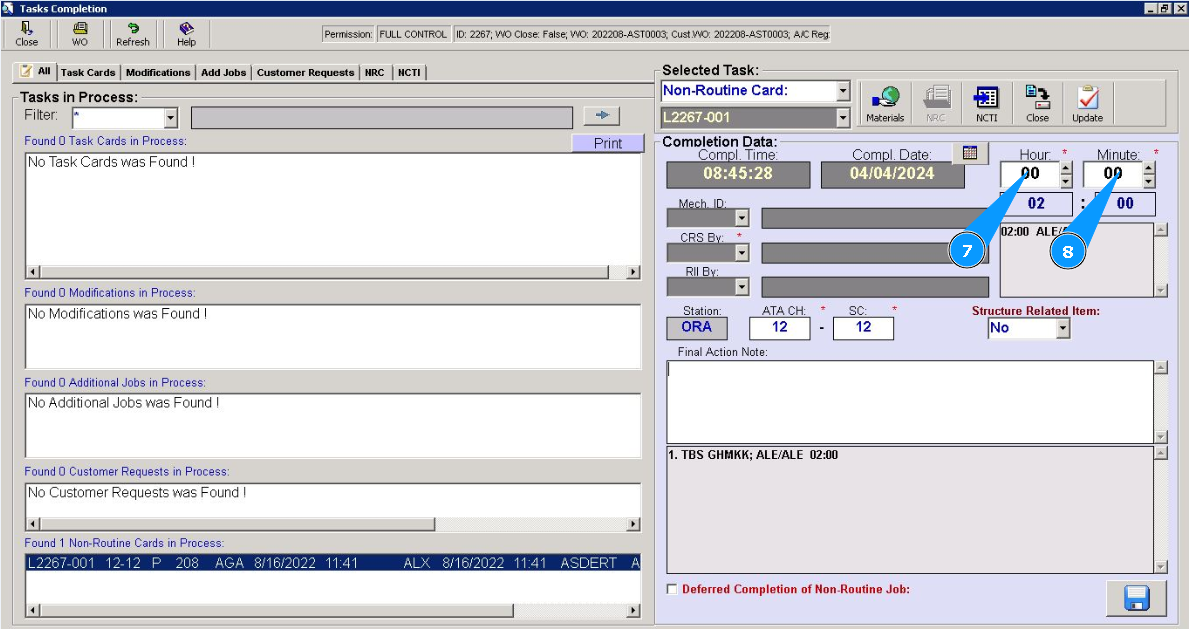

7. Correct the previously set quantity of man-hours in hours, if necessary, in the field "Hour".
8. Correct the previously set quantity of man-hours in minutes, if necessary, in the field "Minute".

Note: The time and date fields are filled in automatically when you work with the editor. But if necessary, you can change the current date.

/images/how_to/Line Maintenance/How_to_complete_WP_NRC_6.png

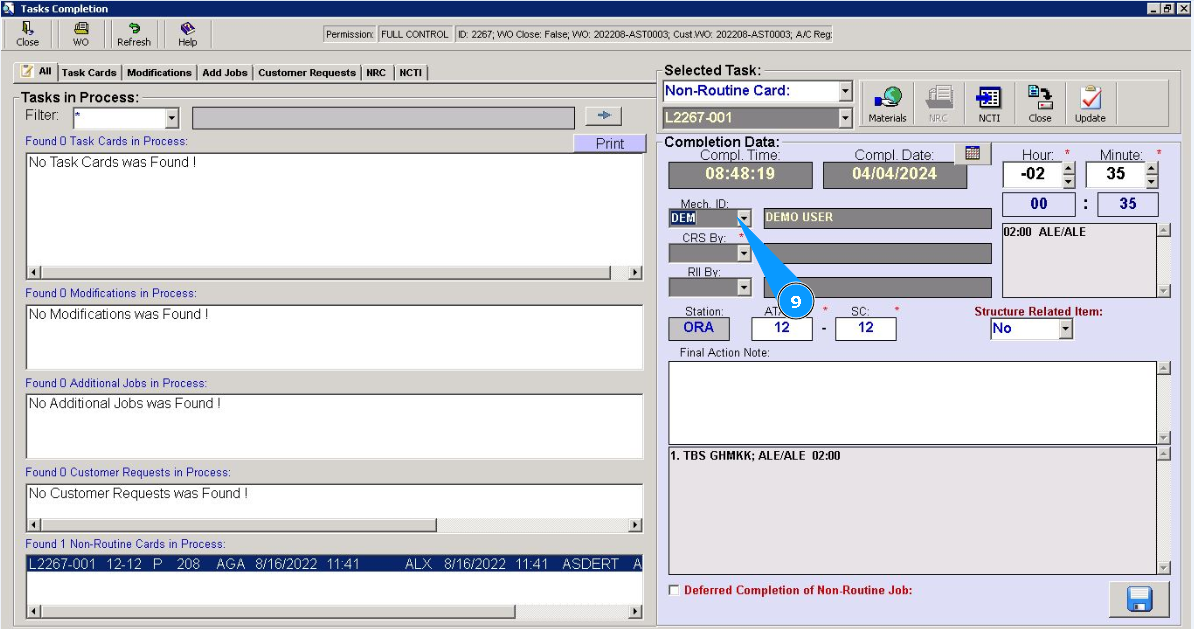

9. Select from dropdown list ID of staff who have performed this NRC in the field "Mech.ID". /images/how_to/Line Maintenance/How_to_complete_WP_NRC_7.png

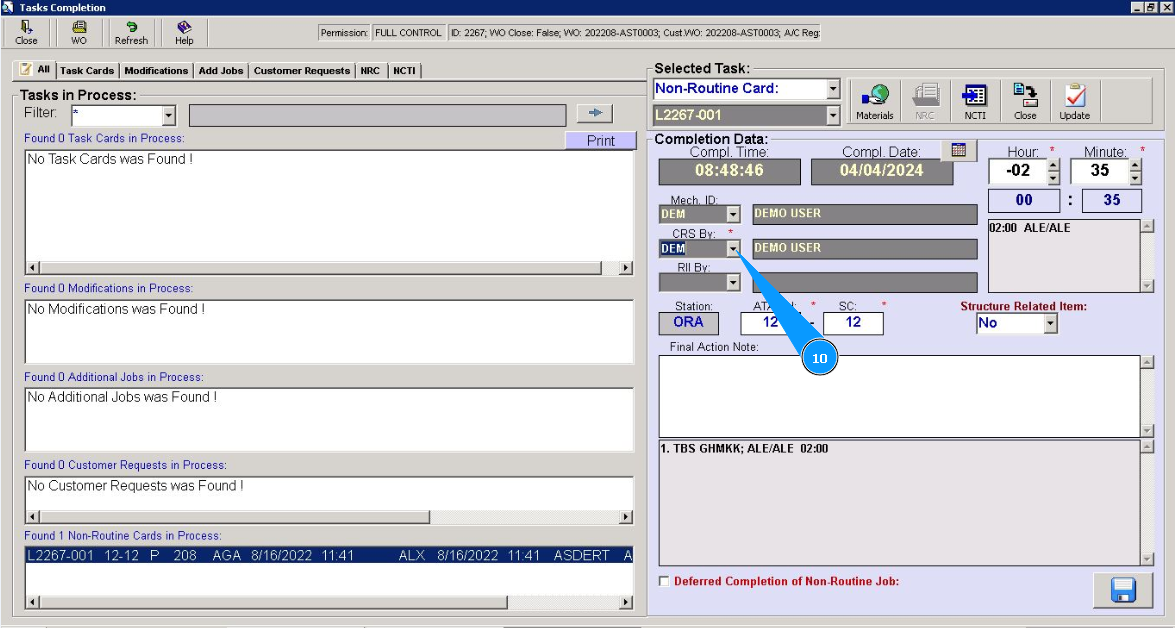

10. Select from dropdown list ID of the certifying staff who has issued CRS for NRC in the field "CRS By". /images/how_to/Line Maintenance/How_to_complete_WP_NRC_8.png

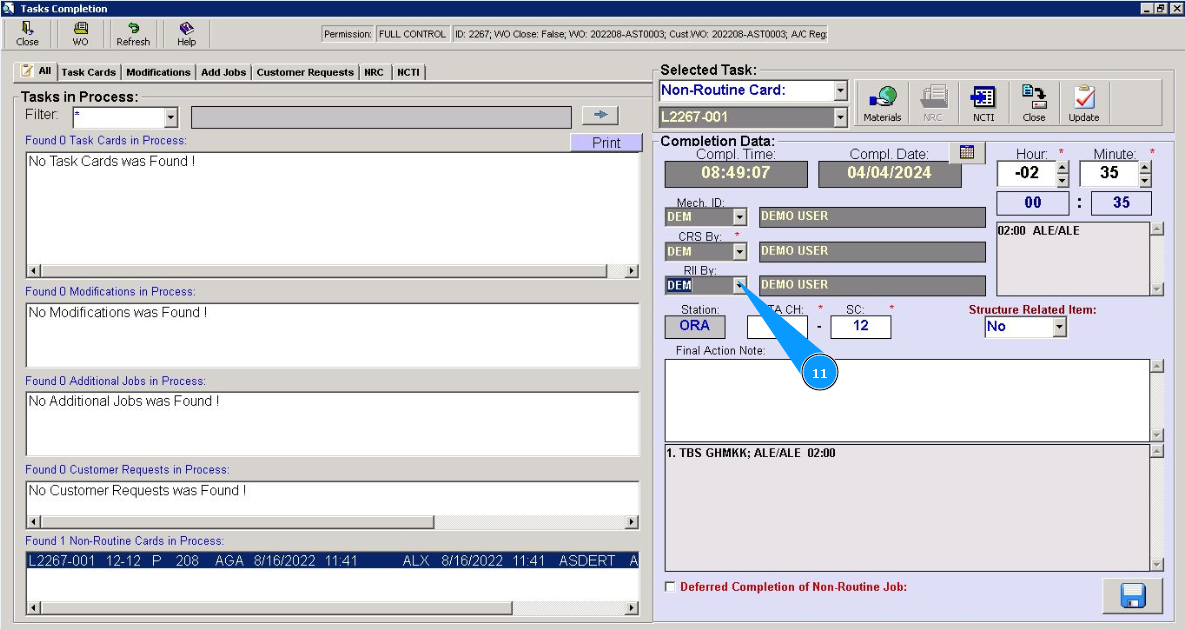

11. If necessary, select from dropdown list ID of the staff who has inspected the performed NRC in the field "RII By". /images/how_to/Line Maintenance/How_to_complete_WP_NRC_9.png

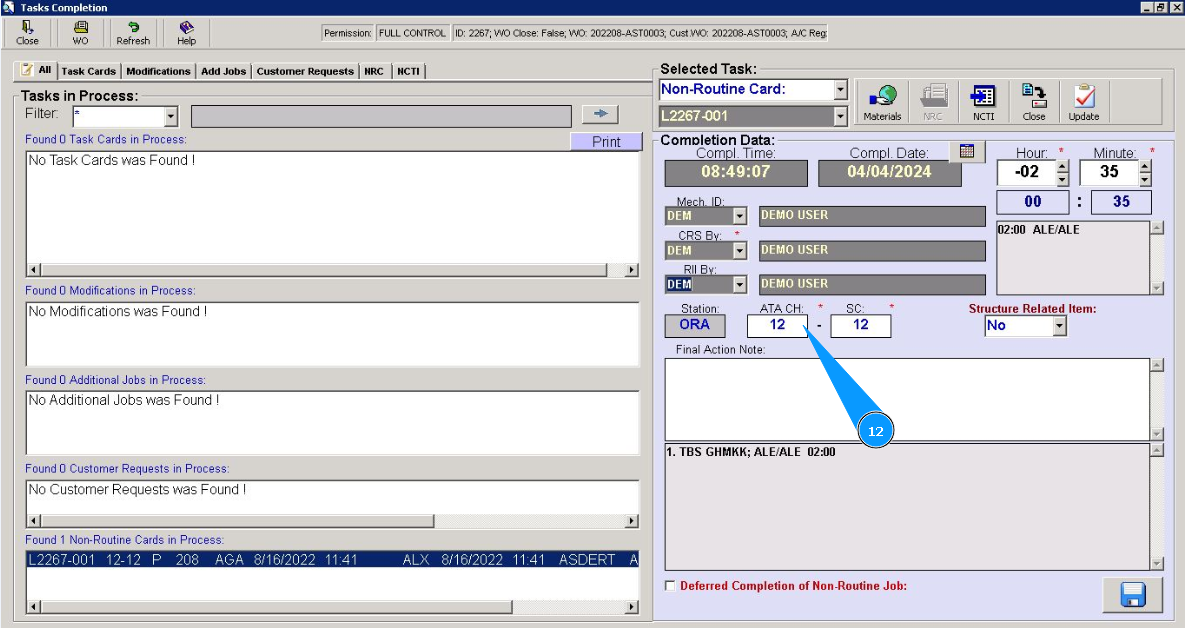

12. Check the ATA number entered earlier, if necessary, correct it in the field "ATA CH".

Note: Field "Station" will be filled in automatically.

/images/how_to/Line Maintenance/How_to_complete_WP_NRC_10.png

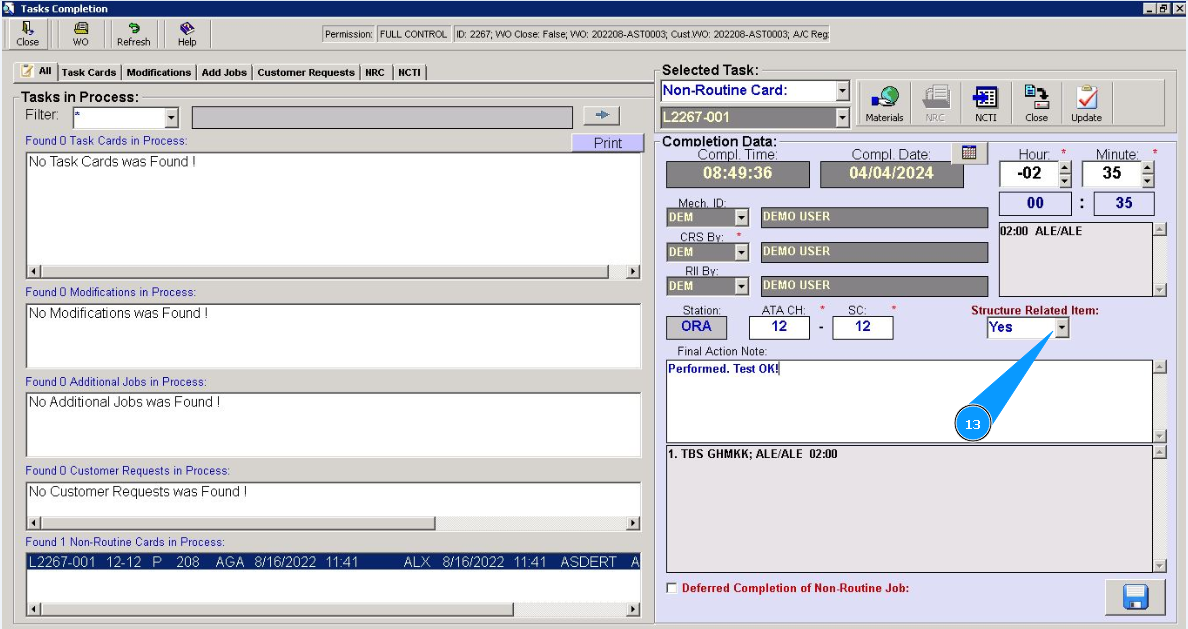

13. If necessary, select "Yes" from the dropdown list, if this NRC is related to structural repair in the field "Structure Related Item". /images/how_to/Line Maintenance/How_to_complete_WP_NRC_11.png

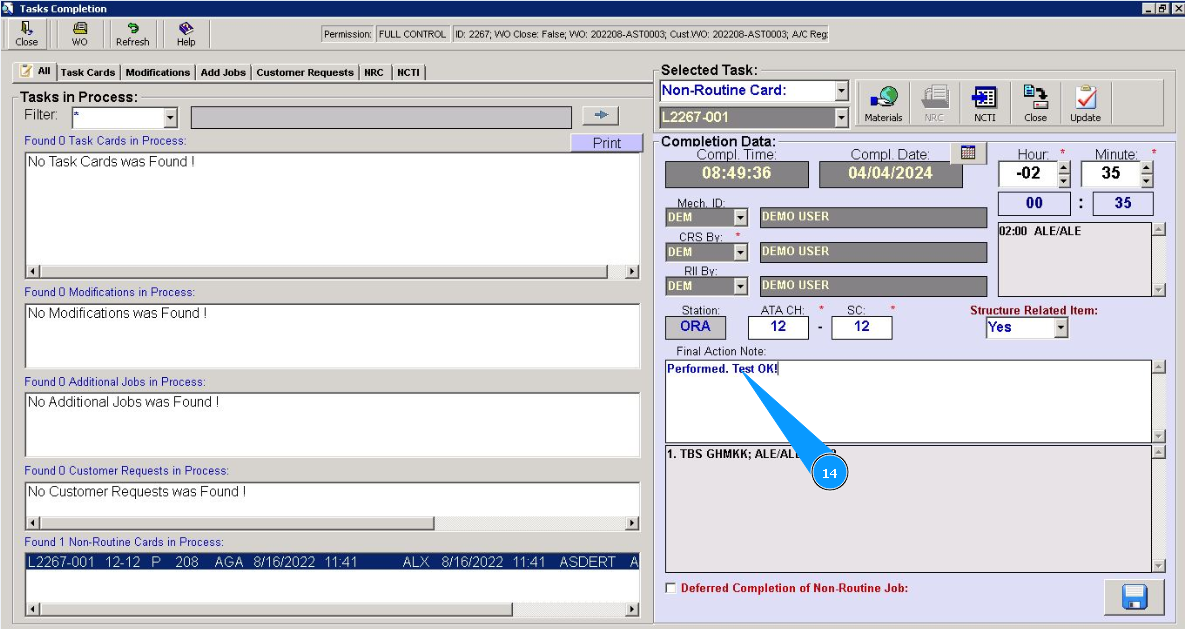

14. If necessary, enter information about possible final comments in the field "Final Action Note". /images/how_to/Line Maintenance/How_to_complete_WP_NRC_12.png

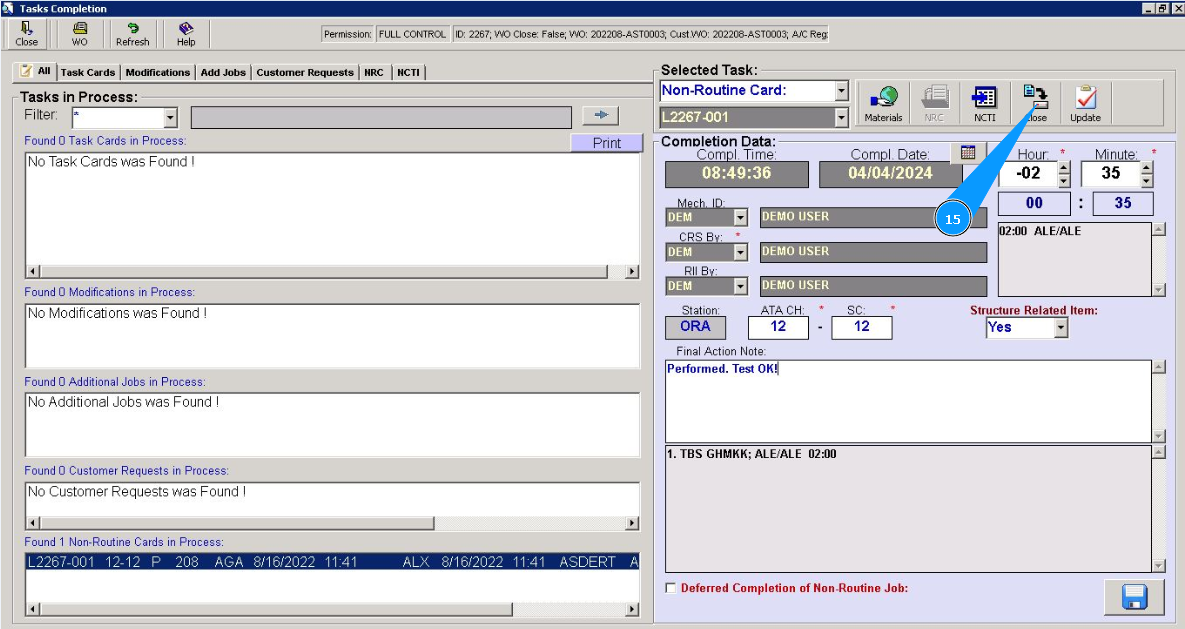

15. Click on the button with a floppy disk symbol to save the completed NRC to the program. /images/how_to/Line Maintenance/How_to_complete_WP_NRC_13.png

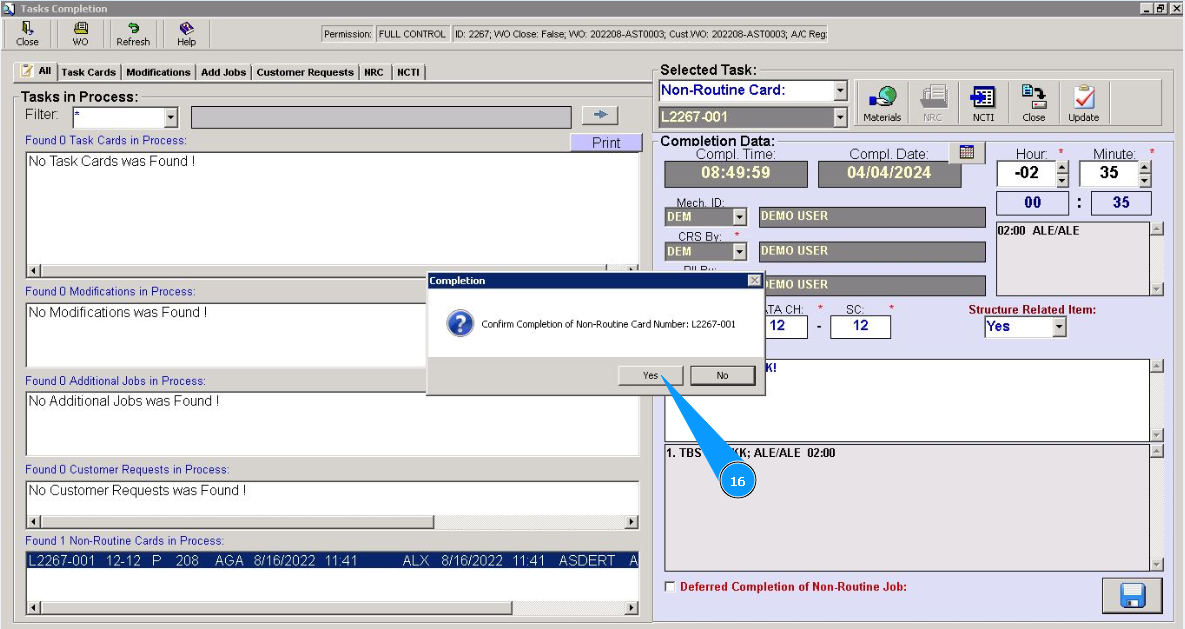

16. Click on the button "Yes", to confirm the completion of the NRC. /images/how_to/Line Maintenance/How_to_complete_WP_NRC_14.png

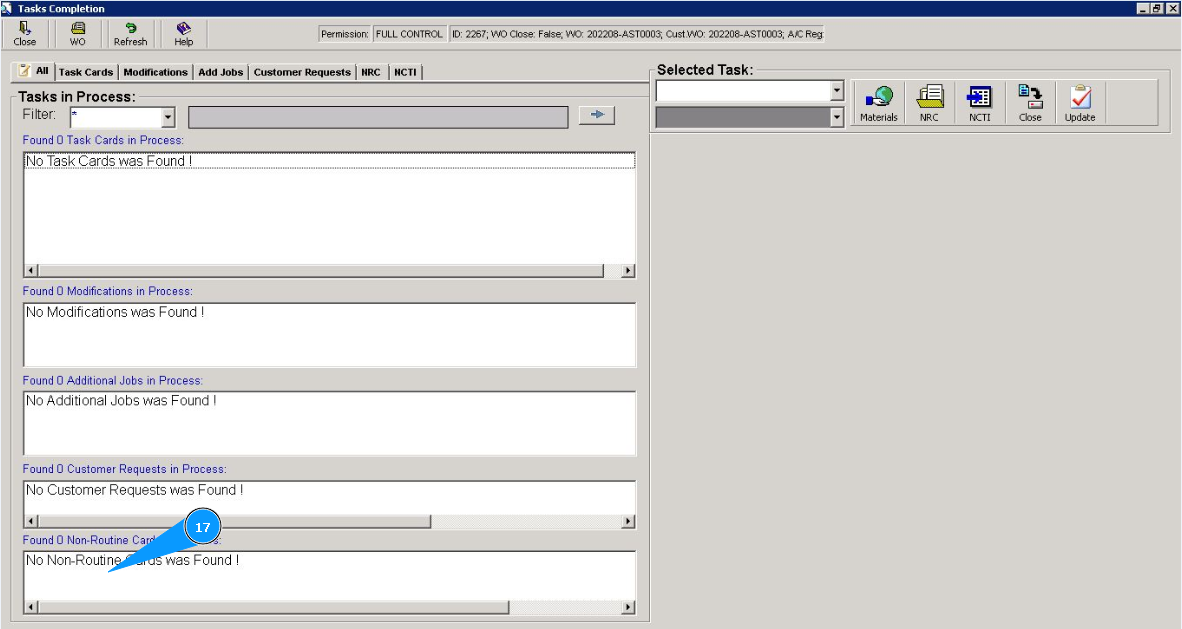

17. Check that the required NRC has disappeared from the list in the window "Tasks Cards in process". /images/how_to/Line Maintenance/How_to_complete_WP_NRC_15.png
