How to add panels to Work Package modifications

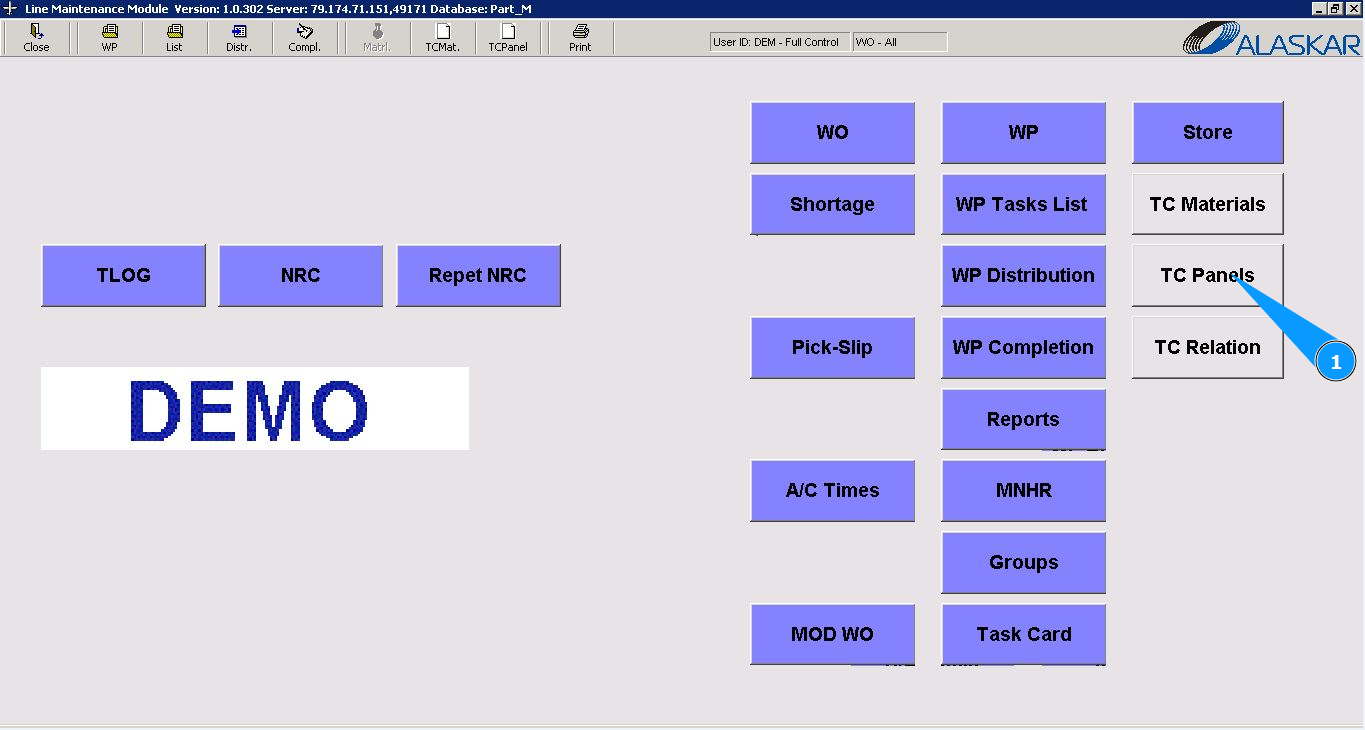

1. In order to add panels to the Work Package modifications, go to the submodule "TC Panels". /images/how_to/Line Maintenance/How_to_add_panels_to_WO_task_card_1.png

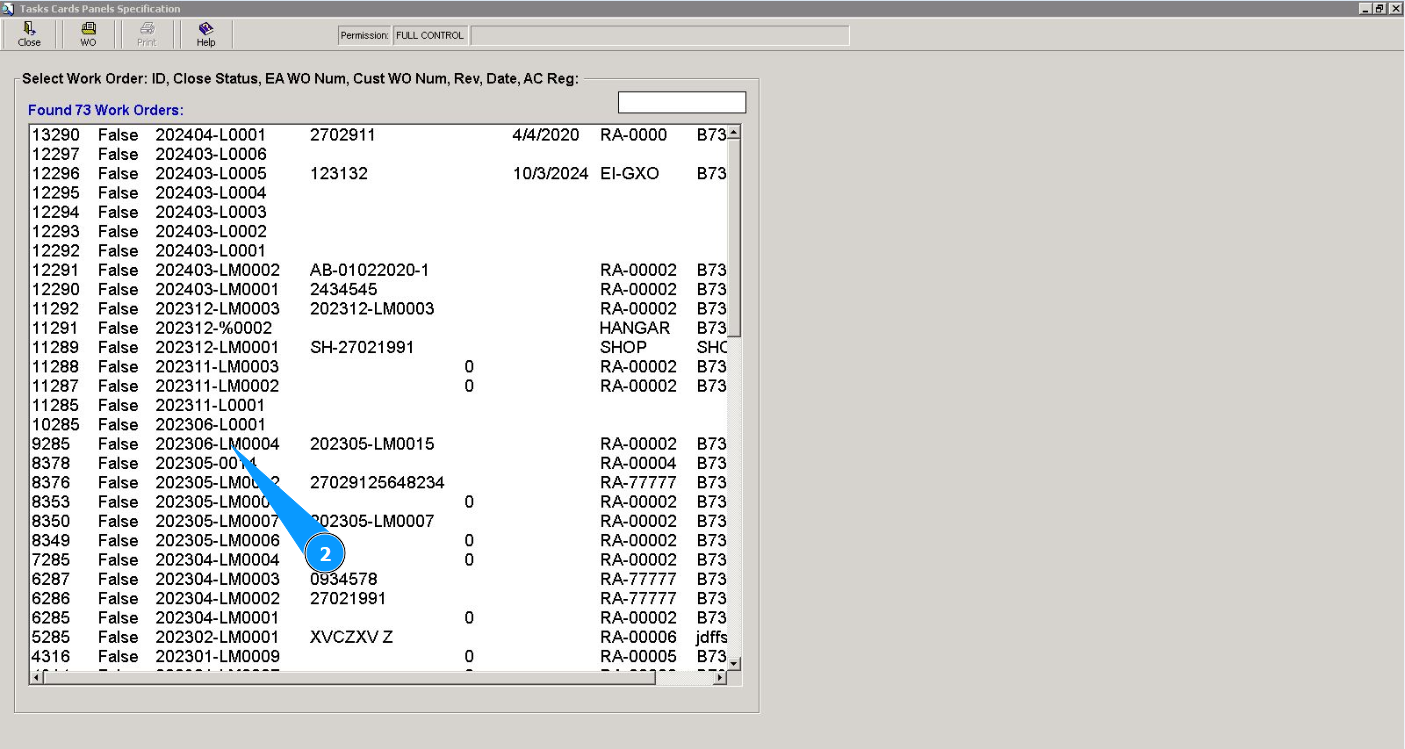

2. Select the required WP in the list "Select Work Orders" and click on the corresponding line.

Note: If necessary use the available filter by WP number.

/images/how_to/Line Maintenance/How_to_add_panels_to_WO_task_card_2.png

3. Then go to the tab "Modifications". /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_1.png

4. Select the required modification in the list "Modifications" and click on the corresponding line.

Note: If necessary you can use the available filter in the field: "Filter".

/images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_2.png

5. Check that the number of the selected modification is displayed in the field "Modification". /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_3.png

6. Enter the number of the panel you are looking for in the searching field "Filter" and press the button "Enter" on your keyboard. /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_4.png

Note:

  • If the required panel number is found, continue with step 7 of this instruction.
  • If the required panel number is not found continue with the instruction and go to step 10.

7. Select the required panel number in the list and click on the corresponding line. /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_5.png

8. Click on the button "Yes", to confirm adding the panel to the modification. /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_6.png

9. Check that record with added panel is displayed in the window "Found Panels for Selected Task". /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_7.png

Note: If you need to add other panels, repeat the instructions from steps 6 to 9.

10. Click on the button "Add", to add a new panel to the list of panels. /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_8.png

11. Make sure that the panel editor is opened in the window "Panel Editor". /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_9.png

12. Enter the panel number in the field "Panel Number". /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_10.png

13. Enter the name of the panel in the field "Panel Name". /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_11.png

14. Select the access type from the dropdown list in the field "Access". /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_12.png

15. Click on the button with the plus symbol to add a new panel to the list of panels.

Note: If necessary enter information about the required quantity of man hours to open this panel in the field: "MPD MNHR".

/images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_13.png

16. Click on the button "Yes", to confirm adding the panel to the program. /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_14.png

17. Enter the number of the added panel in the field поиска "Filter" and press the button "Enter" on your keyboard. /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_15.png

18. Check that the record of added panel is displayed in the window "Access Panel List". /images/how_to/Line Maintenance/How_to_add_panels_to_WO_modifications_16.png

Note: In order to add a panel to a task, follow steps 7 to 9 of this instruction.
