How to add materials and tools to LWO card

1. In order to add materials and tools to Line Work Order card, go to the submodule "TC Materials".

2. Select the required LWO from the list "Select Work Orders" and click on the corresponding line.

Note: If necessary use the available filter by LWO number.

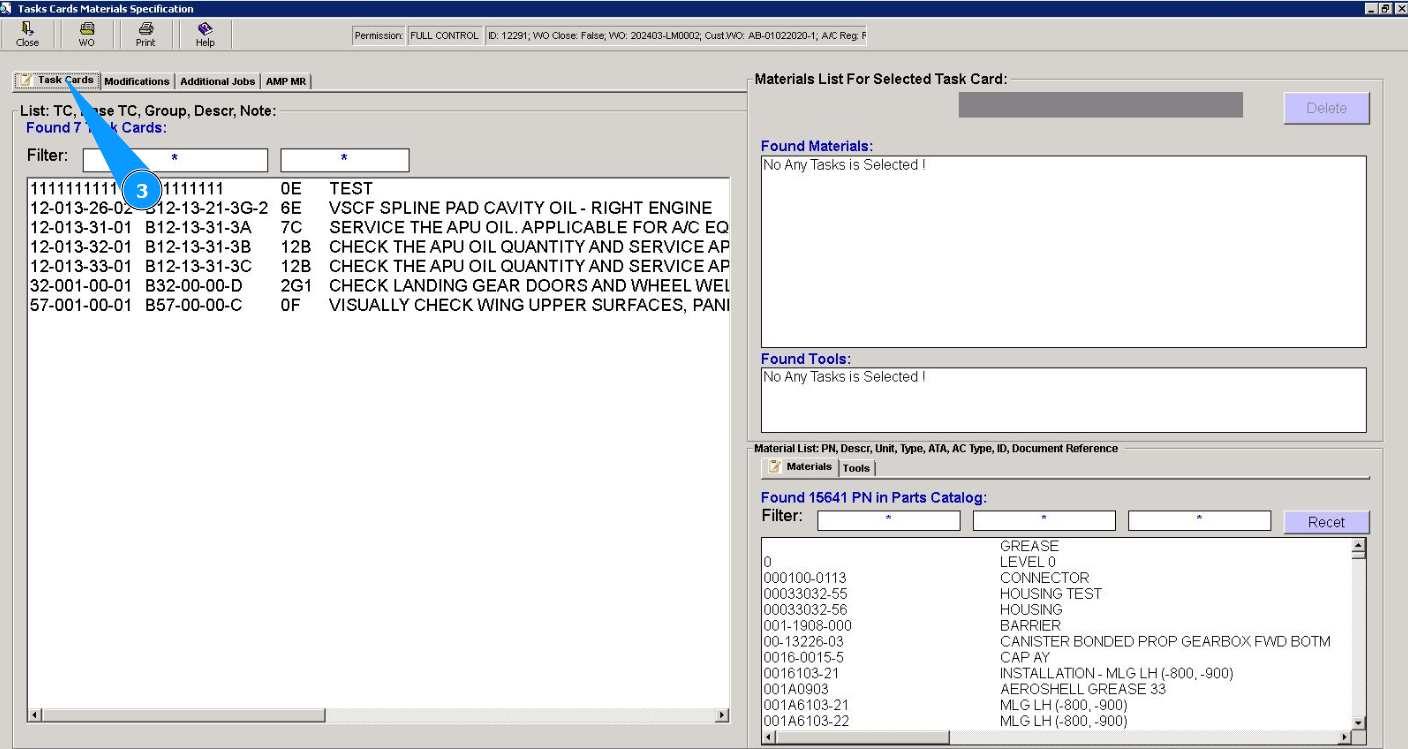

3. Then go to the tab "Task Card".

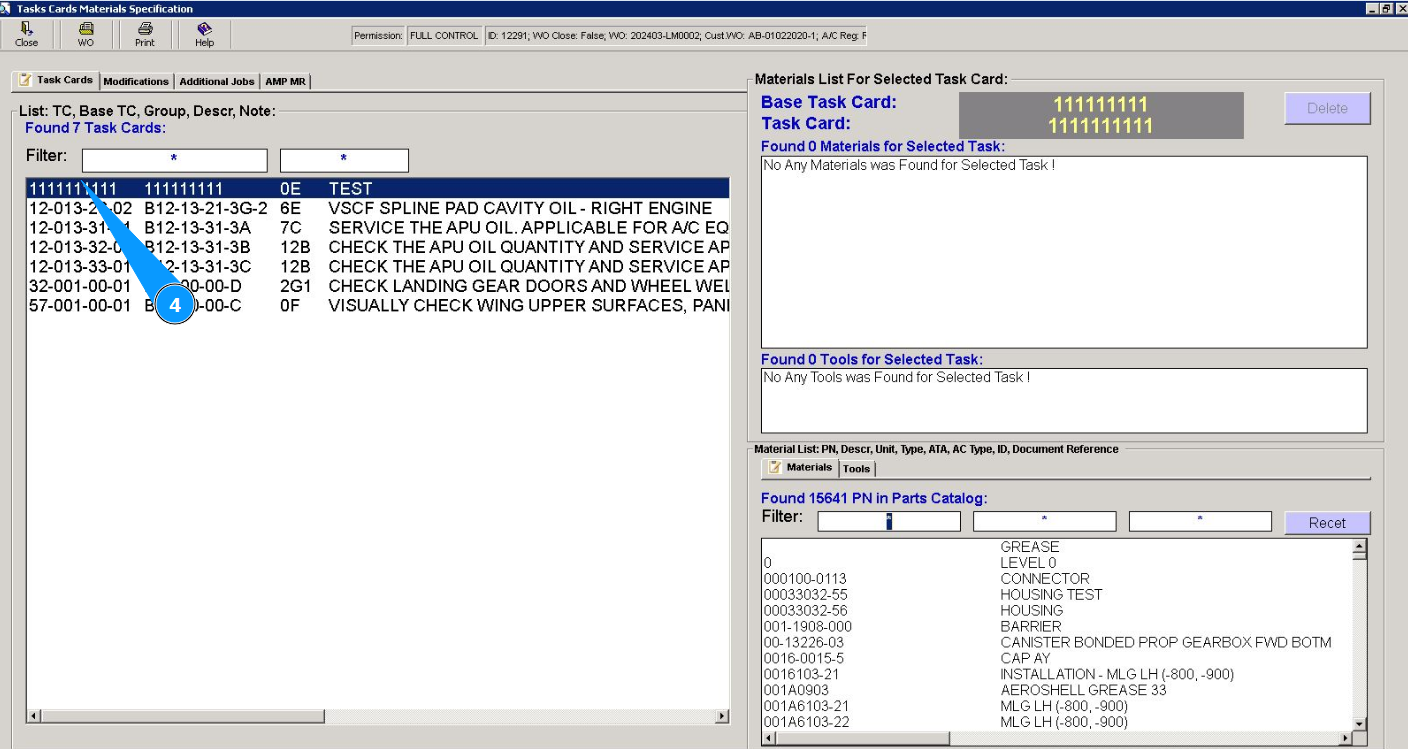

4. Select the required task card from the list "Task Cards" and click on the corresponding line.

Note: If necessary, use the available filter in the field: "Filter".

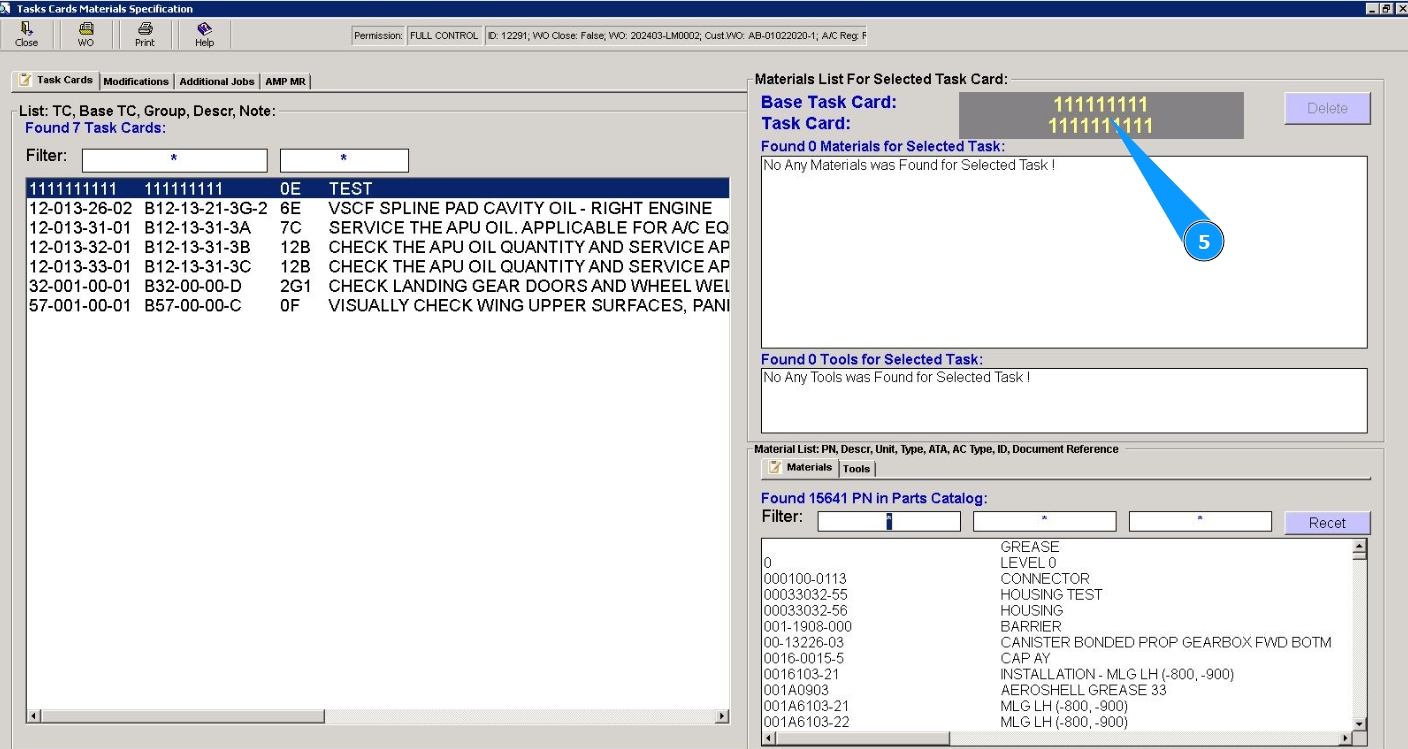

5. Make sure that the number of the selected task is displayed in the field "Base Task Card".

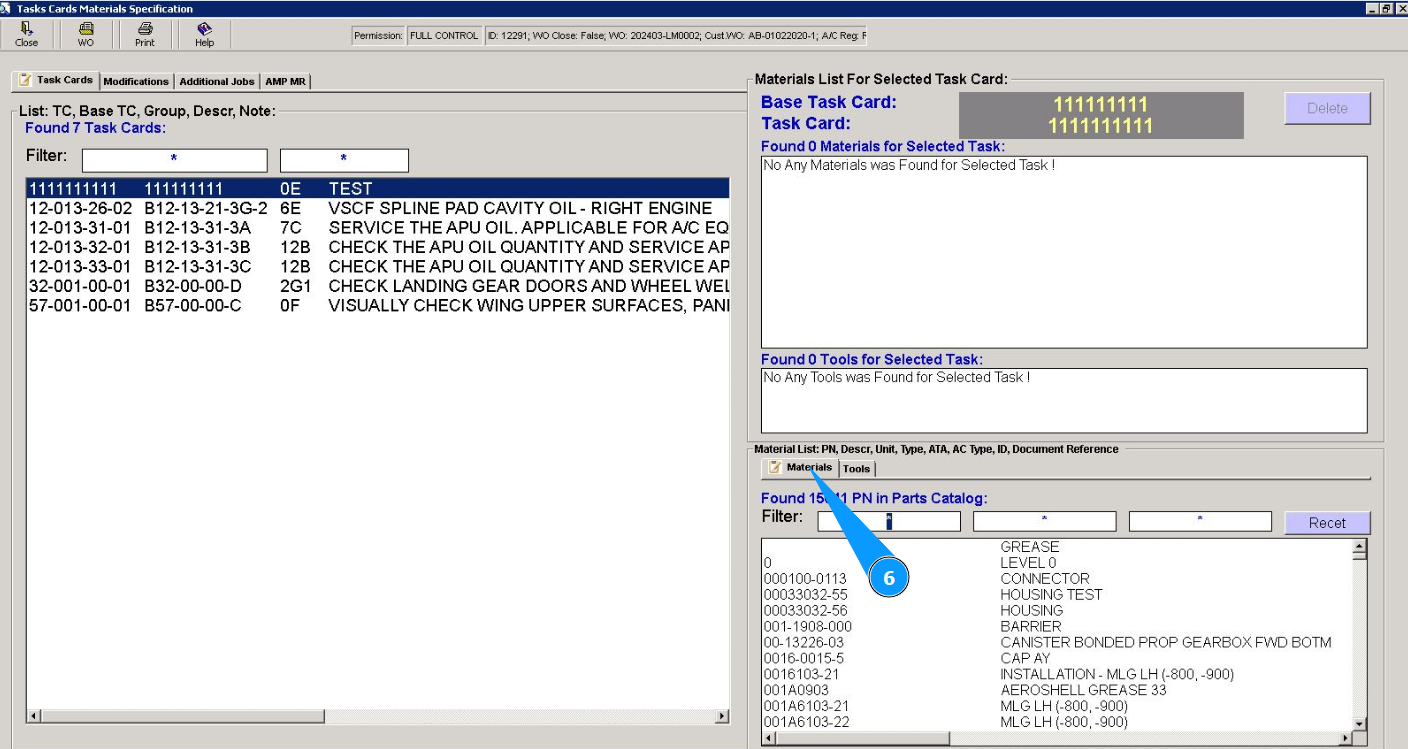

6. Then go to the tab "Materials".

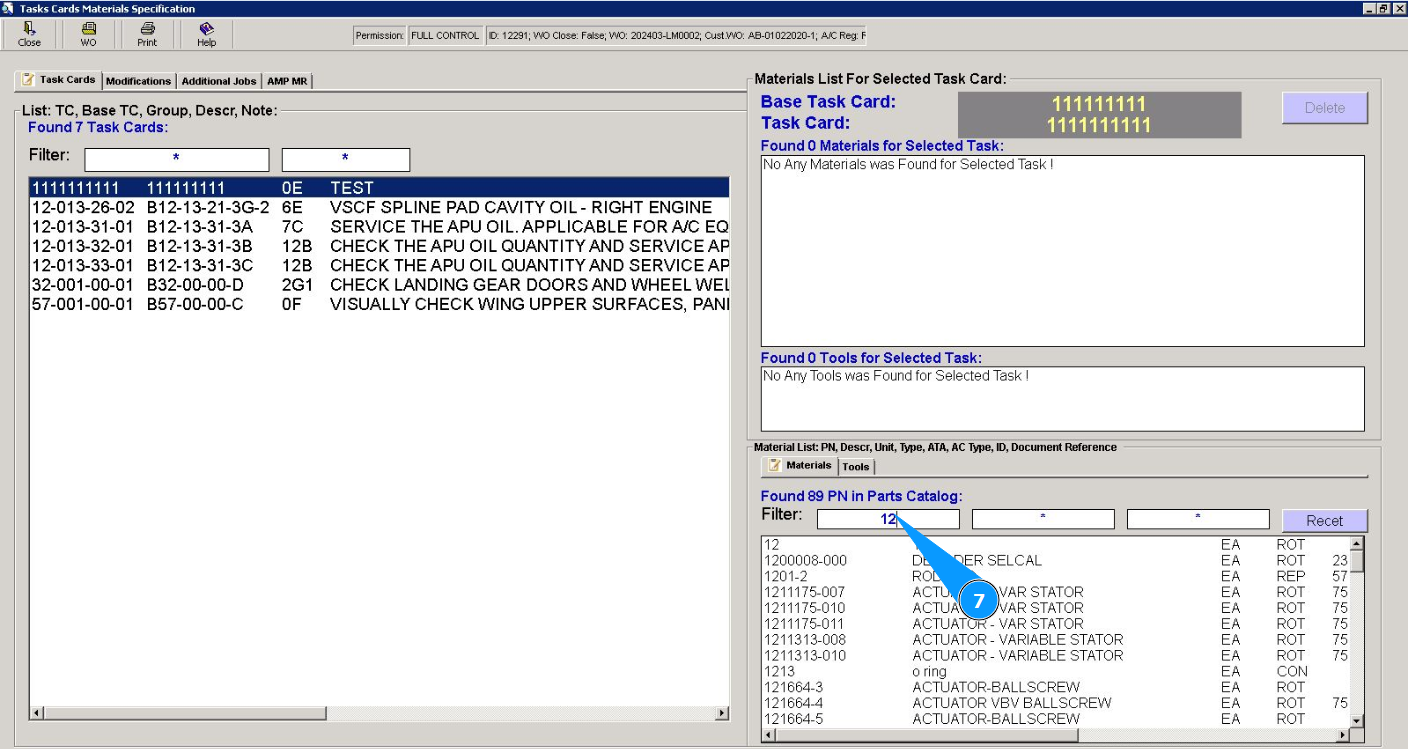

7. Enter the part number of the material that you are looking for in the searching field "Filter" and press the knob "Enter" on your keyboard.

Note: If necessary to reset the search filter, click on the button "Reset".

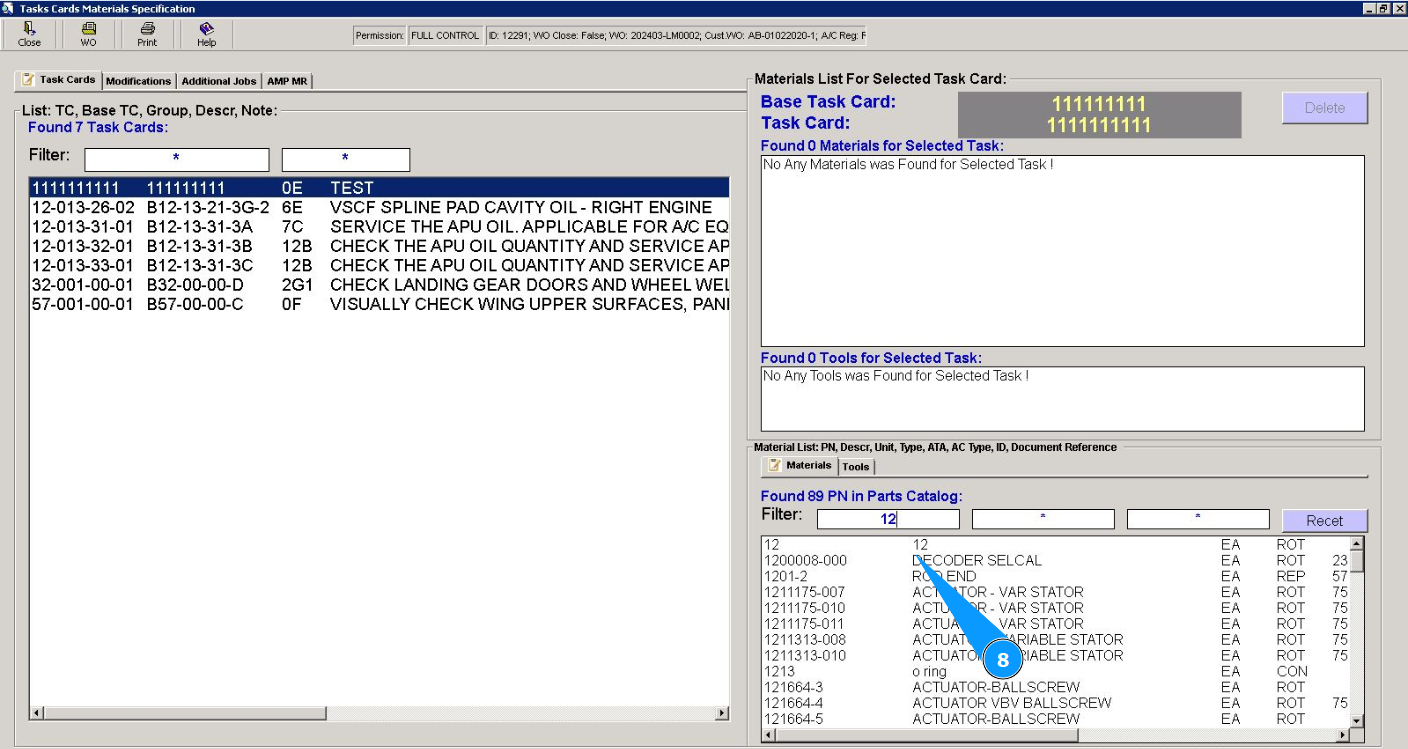

8. Select the material that you are looking for in the list and click on the corresponding line.

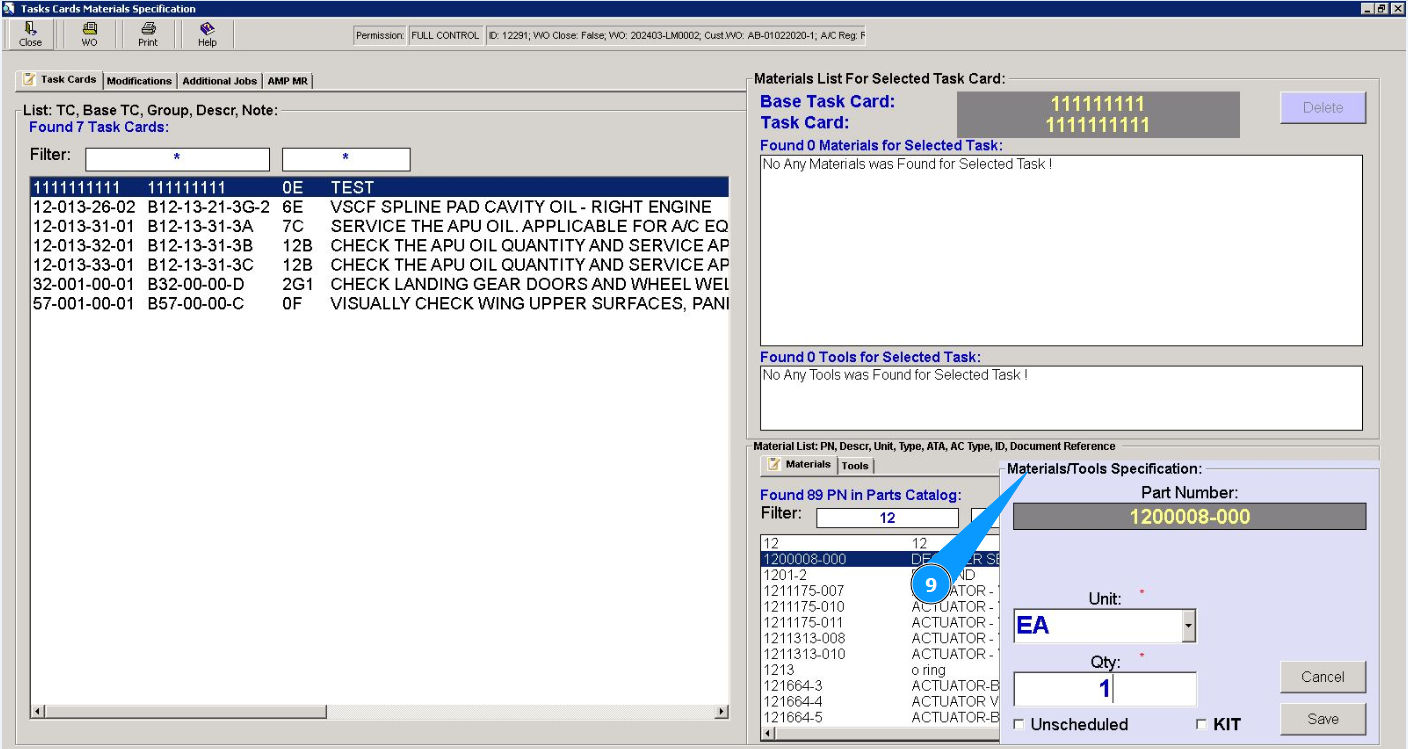

9. Make sure that the editor "Materials/Tools Specification" is opened.

10. Enter information about the units of the material in the field "Unit".

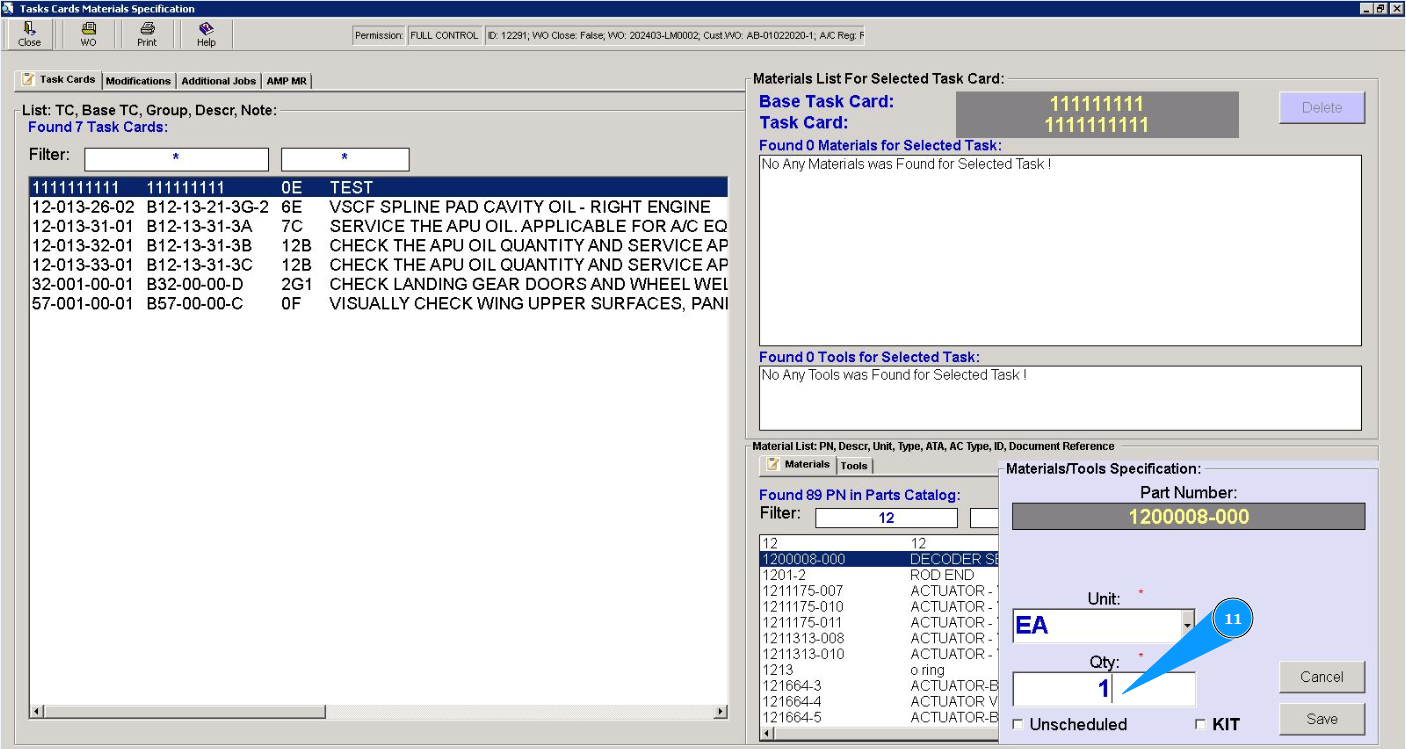

11. Enter data about the required quantity of materials in the field "Qty".

Note: It is possible to enter non-numeric values in the QTY field, for example, AR – as Required, if necessary.

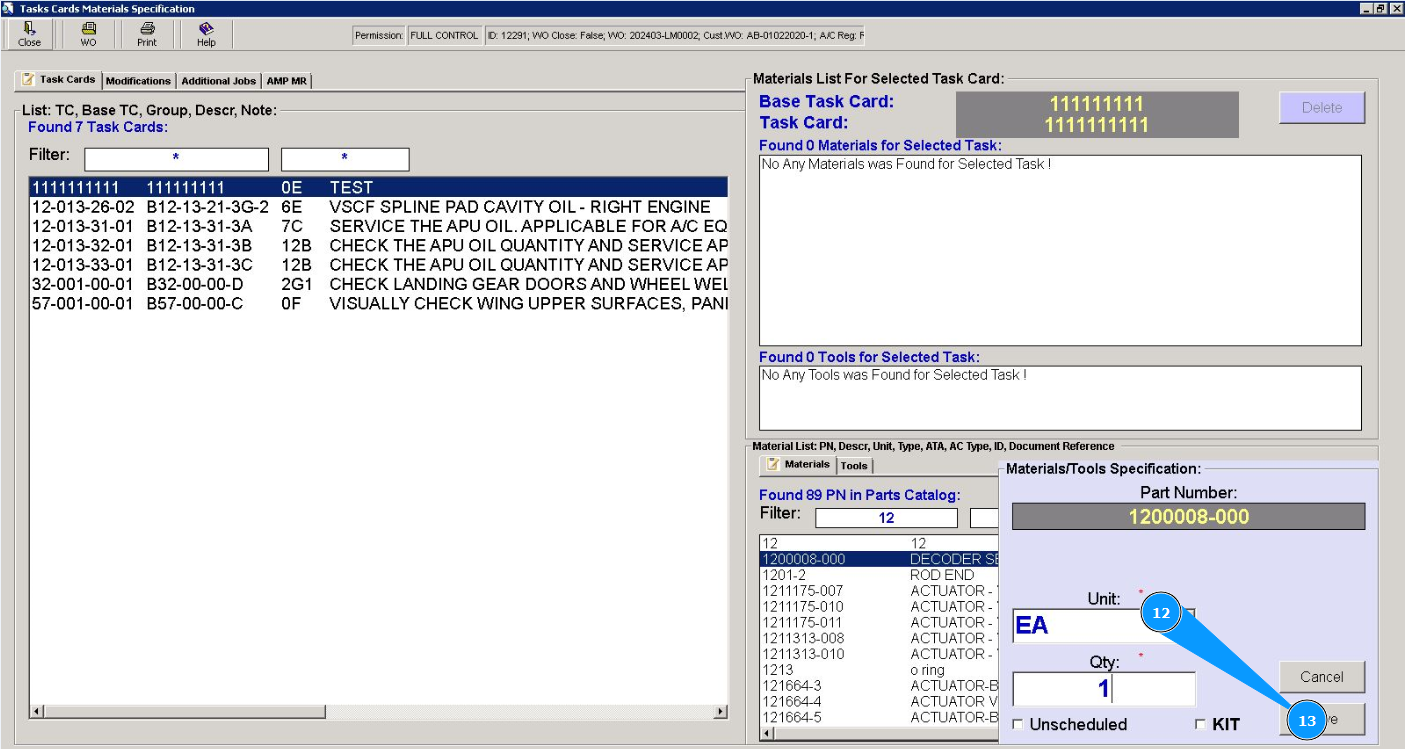

12. Click on the button "Save", to add material to the task.

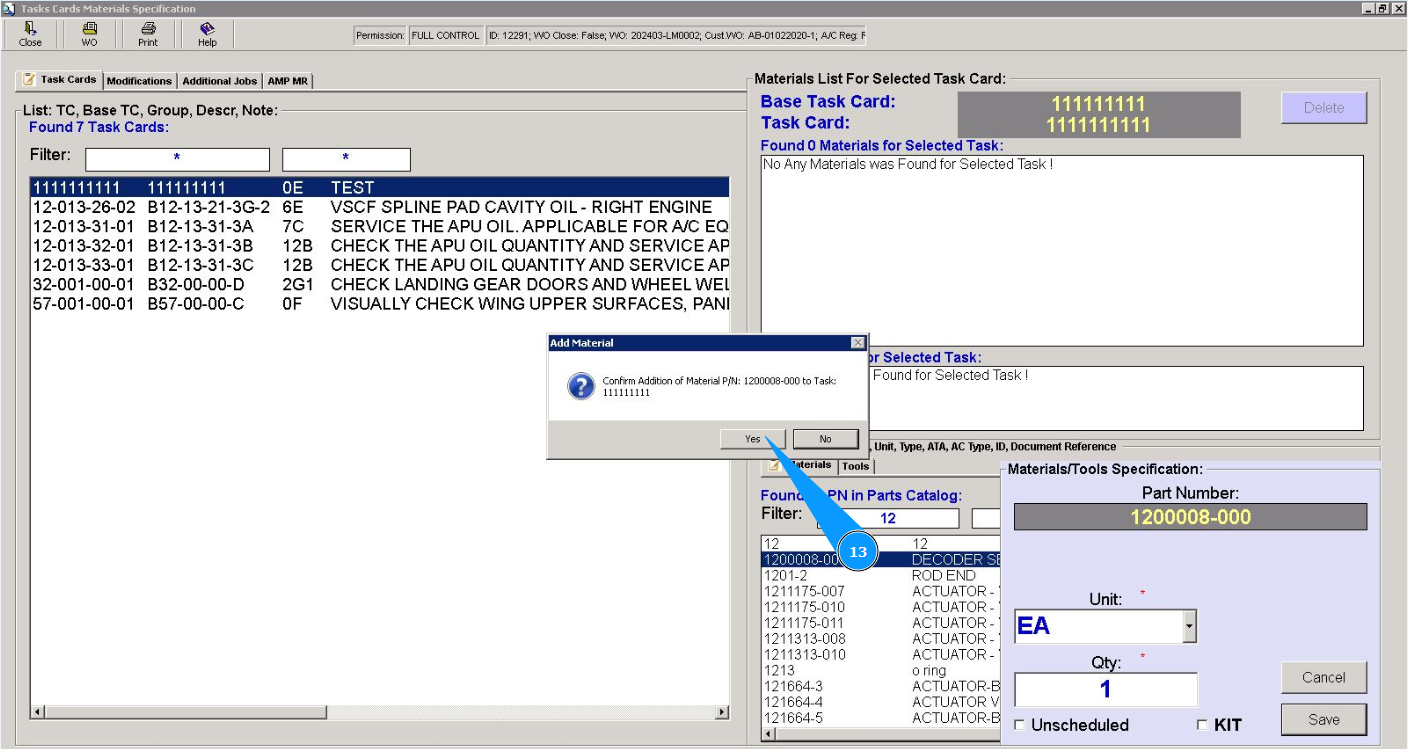

13. Click on the button "Yes" to confirm adding the material into the program.

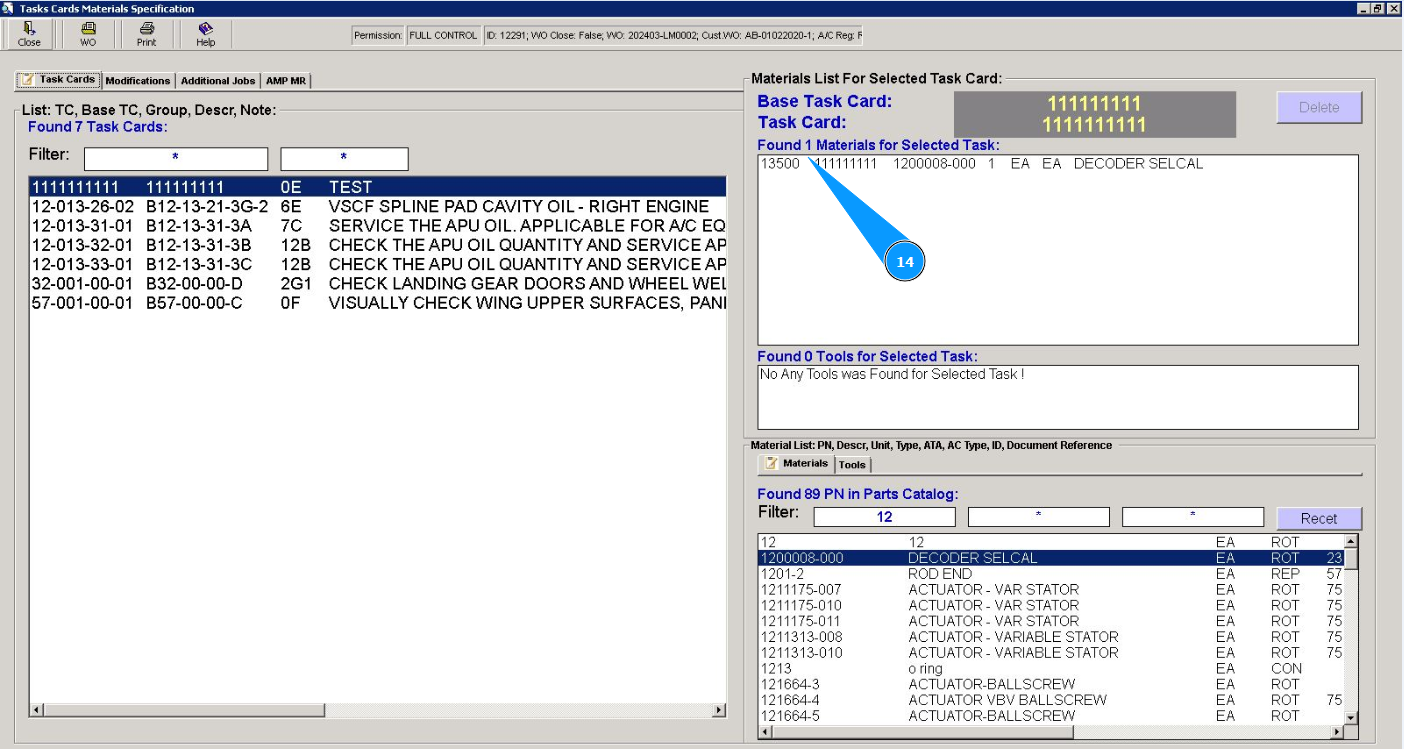

14. Check that the record about the added material is displayed in the window "Found Materials for Selected Task".

Note: If it is necessary to add other materials, repeat the instructions from steps 7 to 13 of this instruction.

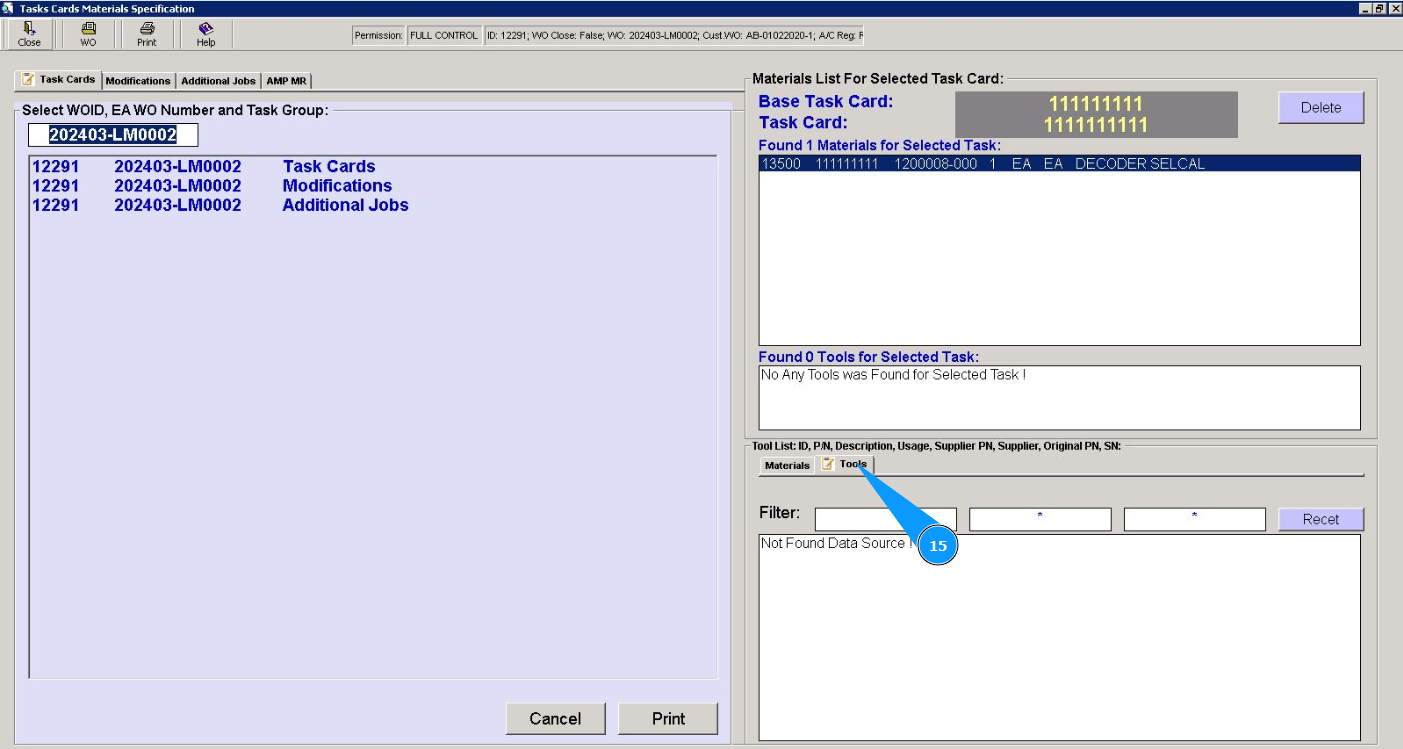

15. Then go to the tab "Tools".

16. Follow steps 7-13 of this instruction to add the required tool.

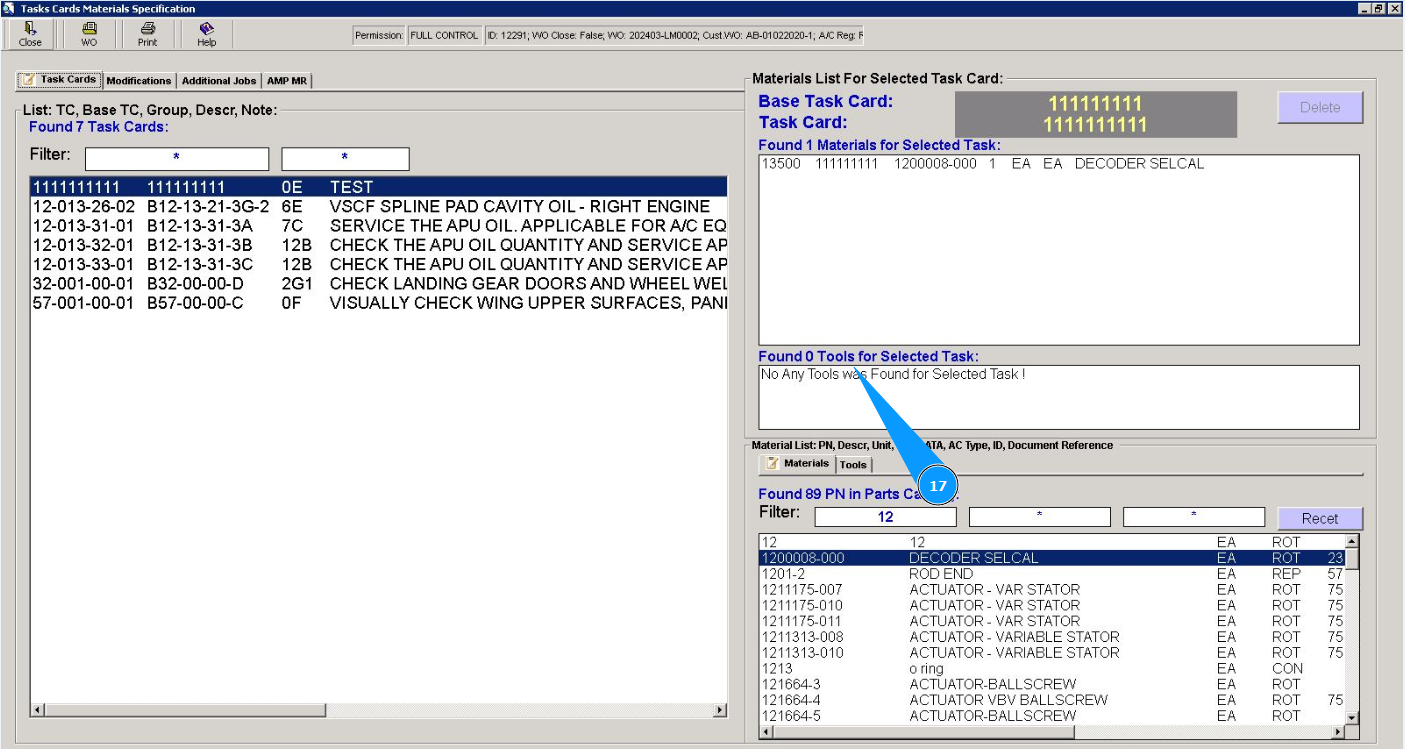

17. Check that the added tool is displayed in the window "Found Tools for Selected Task".
