How to add man-hours to NRC based on Work Order


1. In order to add man-hours to the NRC based on Work Order, go to the submodule "WO". /images/how_to/Line Maintenance/How_to_create_WO_1.png

2. Then go to the tab "Completion". /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_task_13.png

3.   Select the WO number required for adding man-hours from the list in the window "Line Work Order List". Click on the corresponding line.

Note: If necessary, use the search filters, fields: "AC Reg.", "WO".

/images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_task_14.png

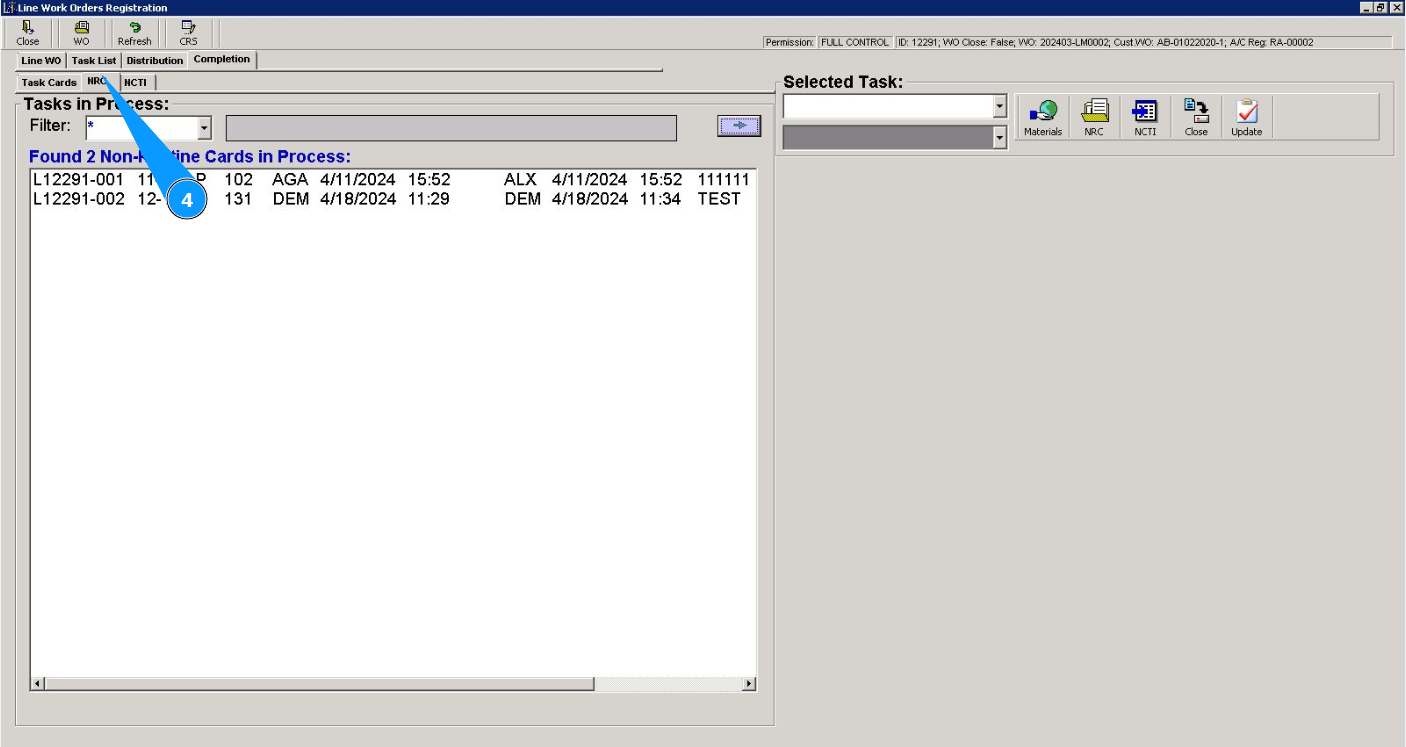

4. Then go to the tab "NRC". /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_1.png

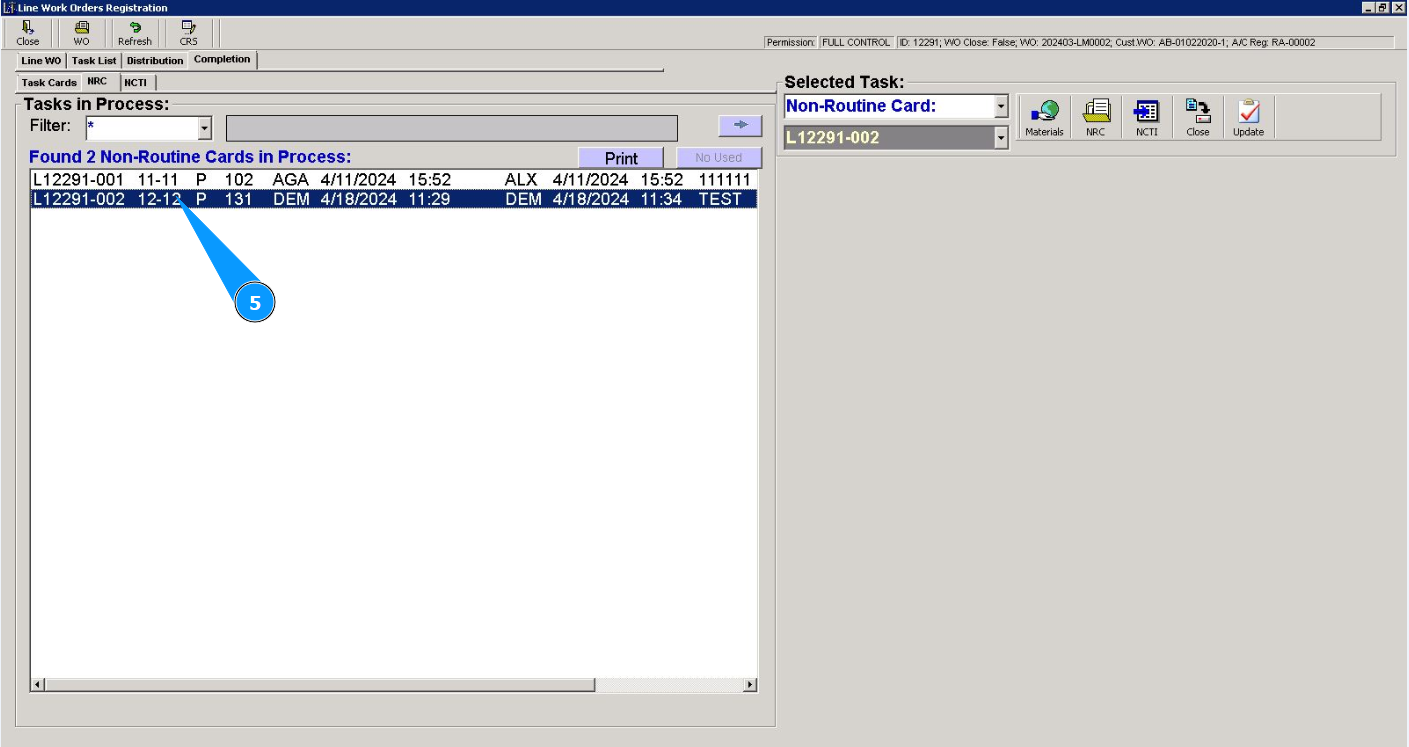

5. Select the required NRC to add man-hours from the list in the window "NRC in Proccess". Double click on the line with the corresponding NRC.

Note: If necessary, use the search filters, field: "Filter".

/images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_2.png

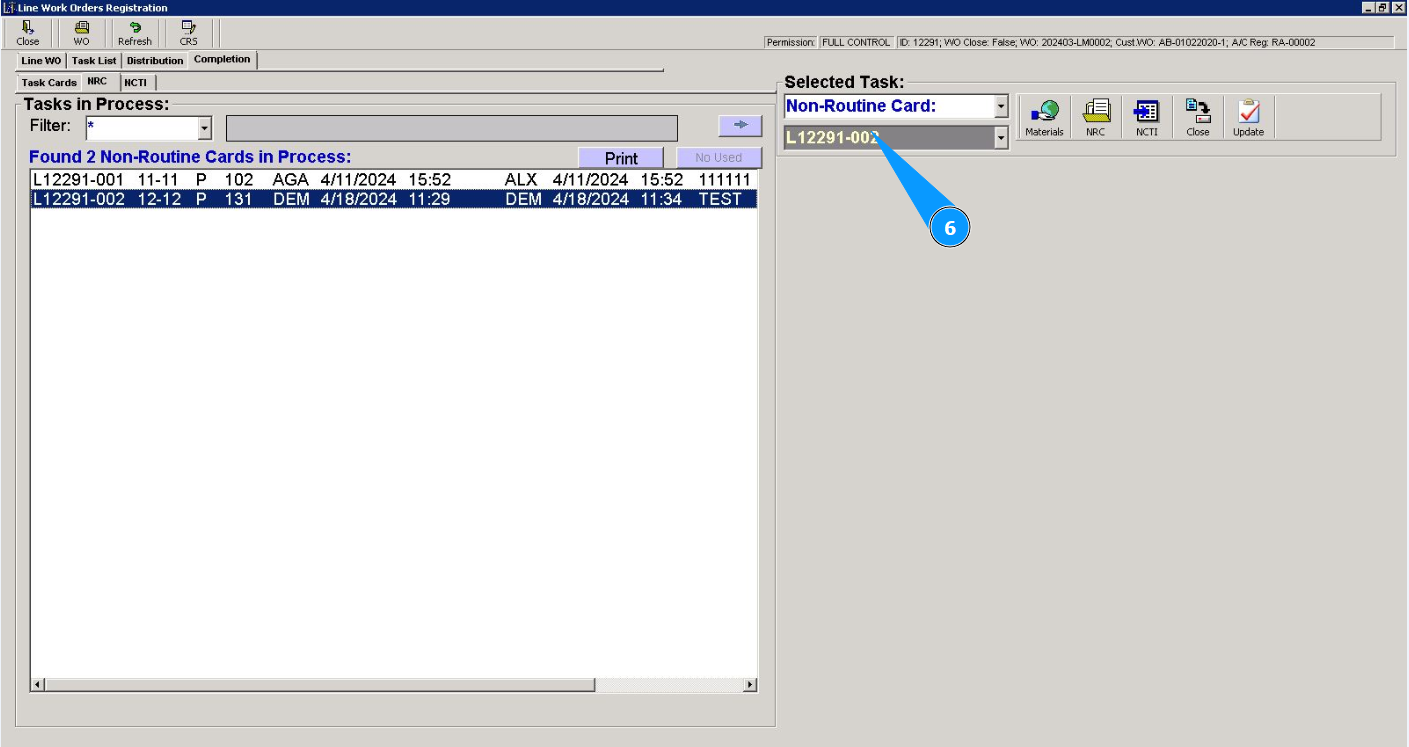

6. Check that the required NRC and its number are displayed in the right window "Selected Task". /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_3.png

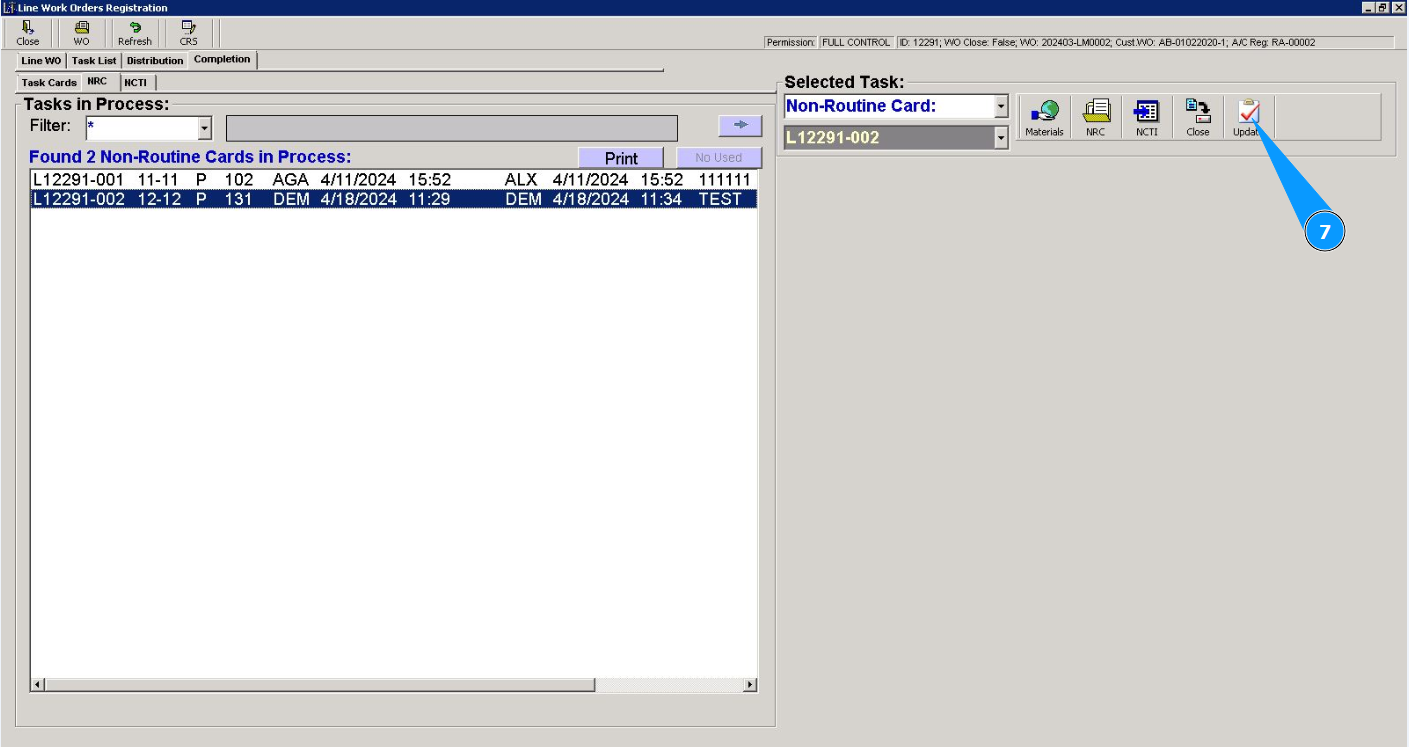

7. Click on the button "Update", to update the man-hours data in this NRC. /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_4.png

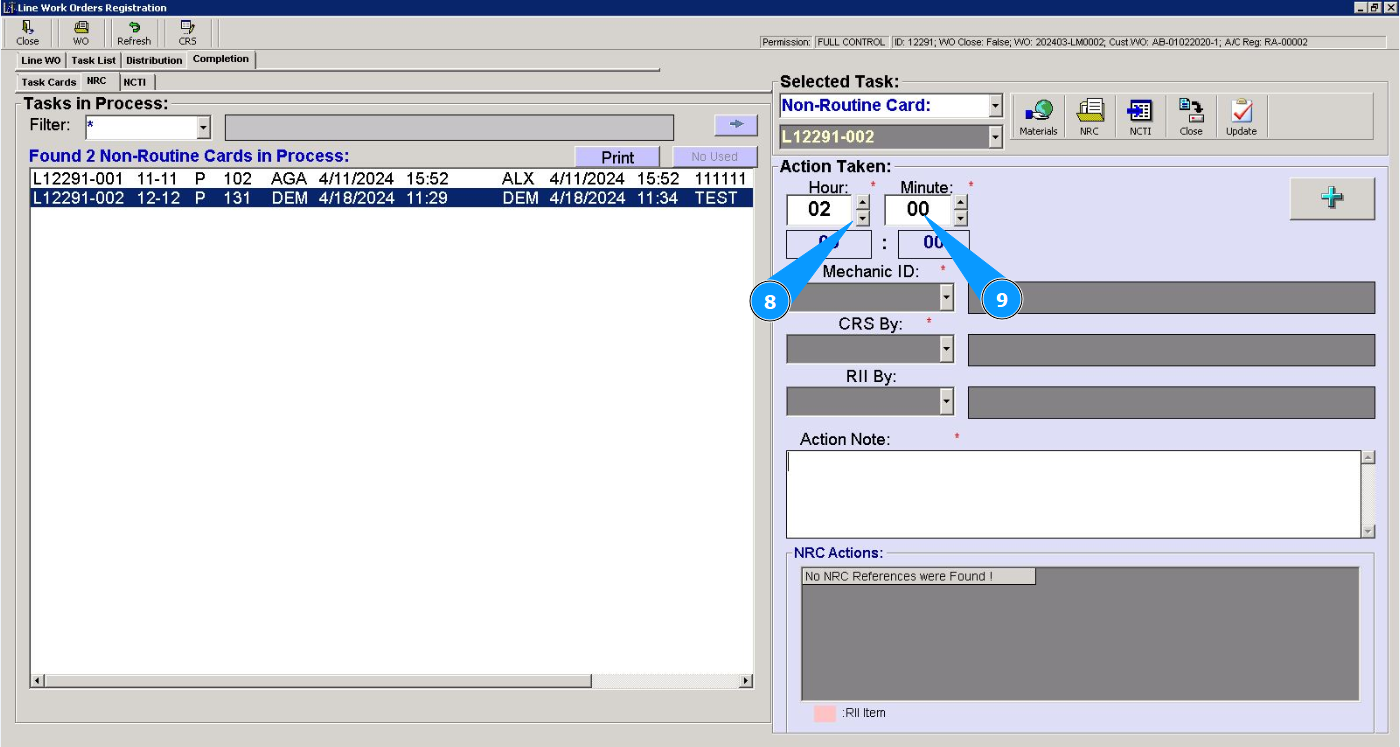

8. Enter the required number of standard hours in hours in the field "Hour".
9. Enter the required number of standard hours in minutes in the field "Minute".

Note: If the number of man-hours was previously entered, then the newly entered data is summarized with the previous ones.

/images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_5.png

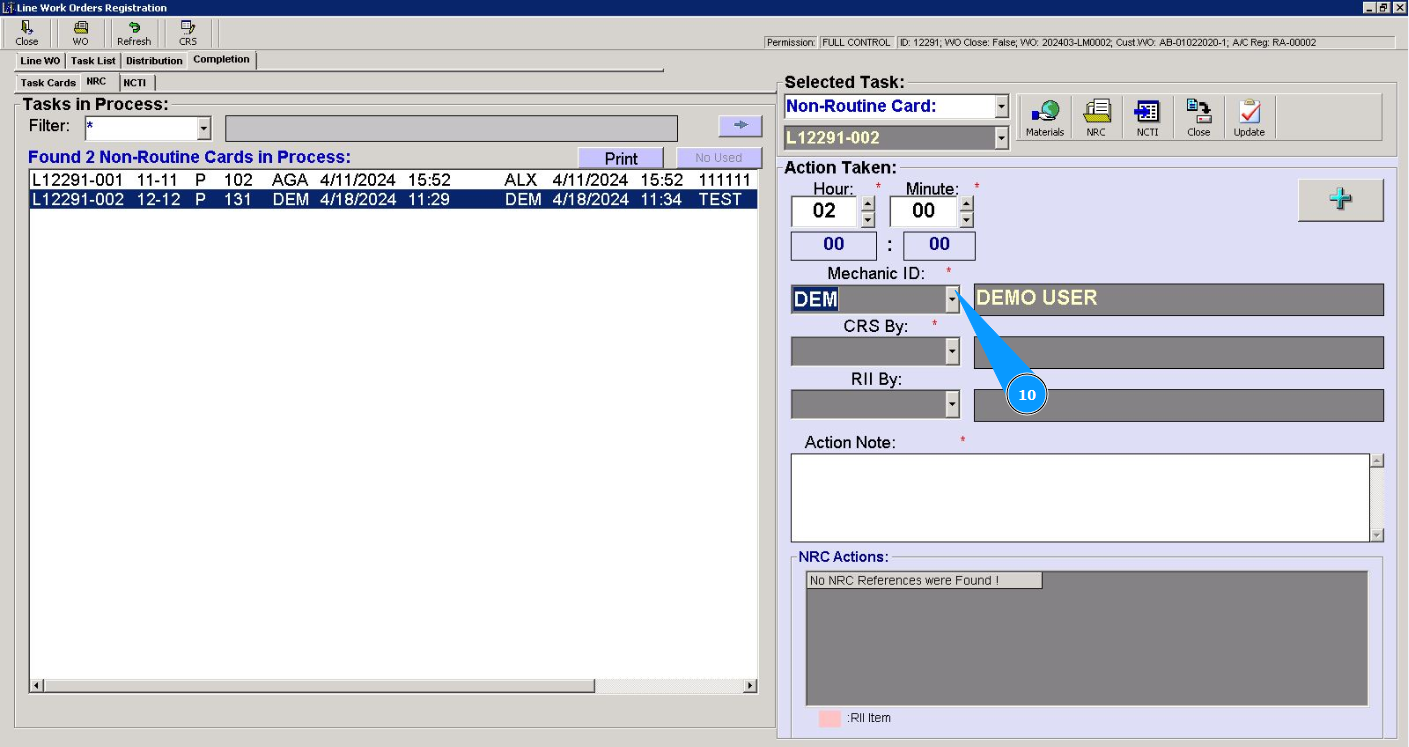

10. Select from the dropdown list the ID of the specialist who performed this task in the field "Mechanic ID". /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_6.png

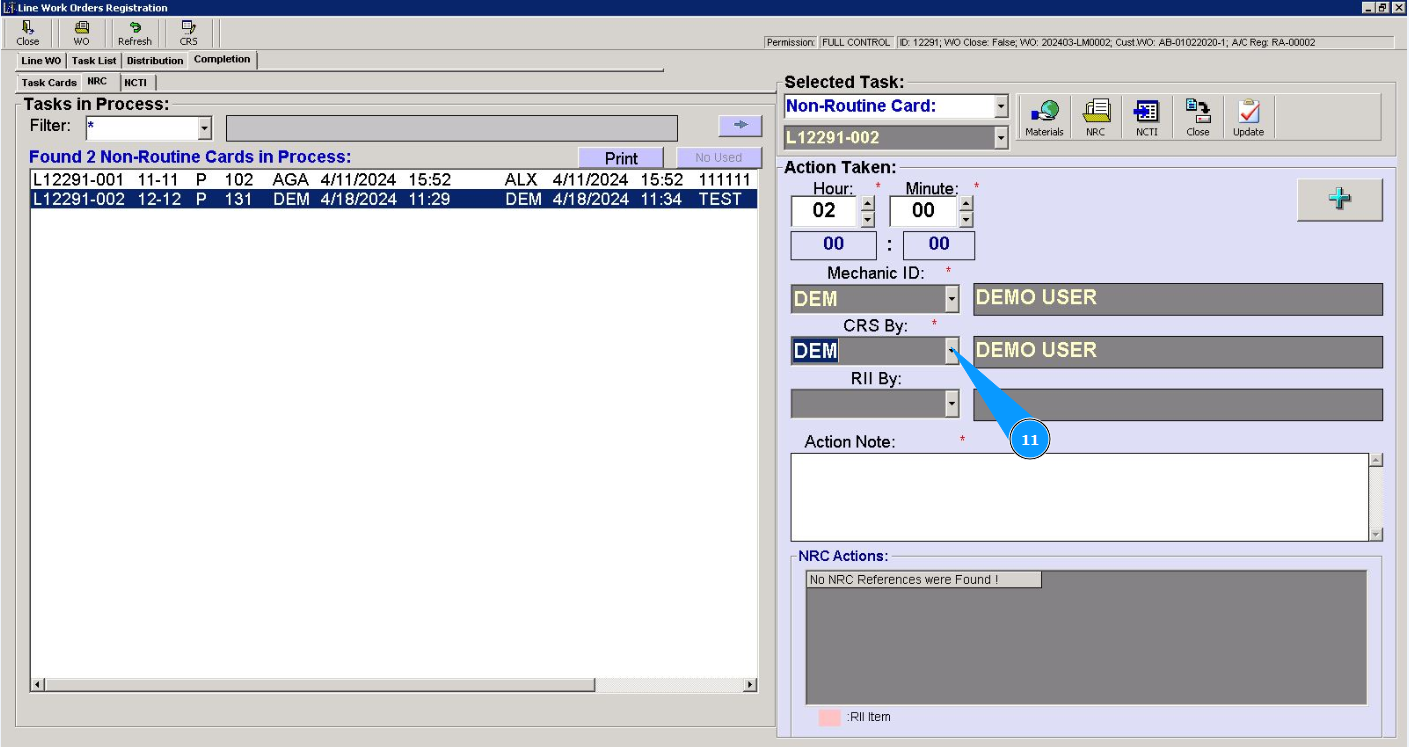

11. Select from the dropdown list the ID of the staff who certified this task in the field "CRS By". /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_7.png

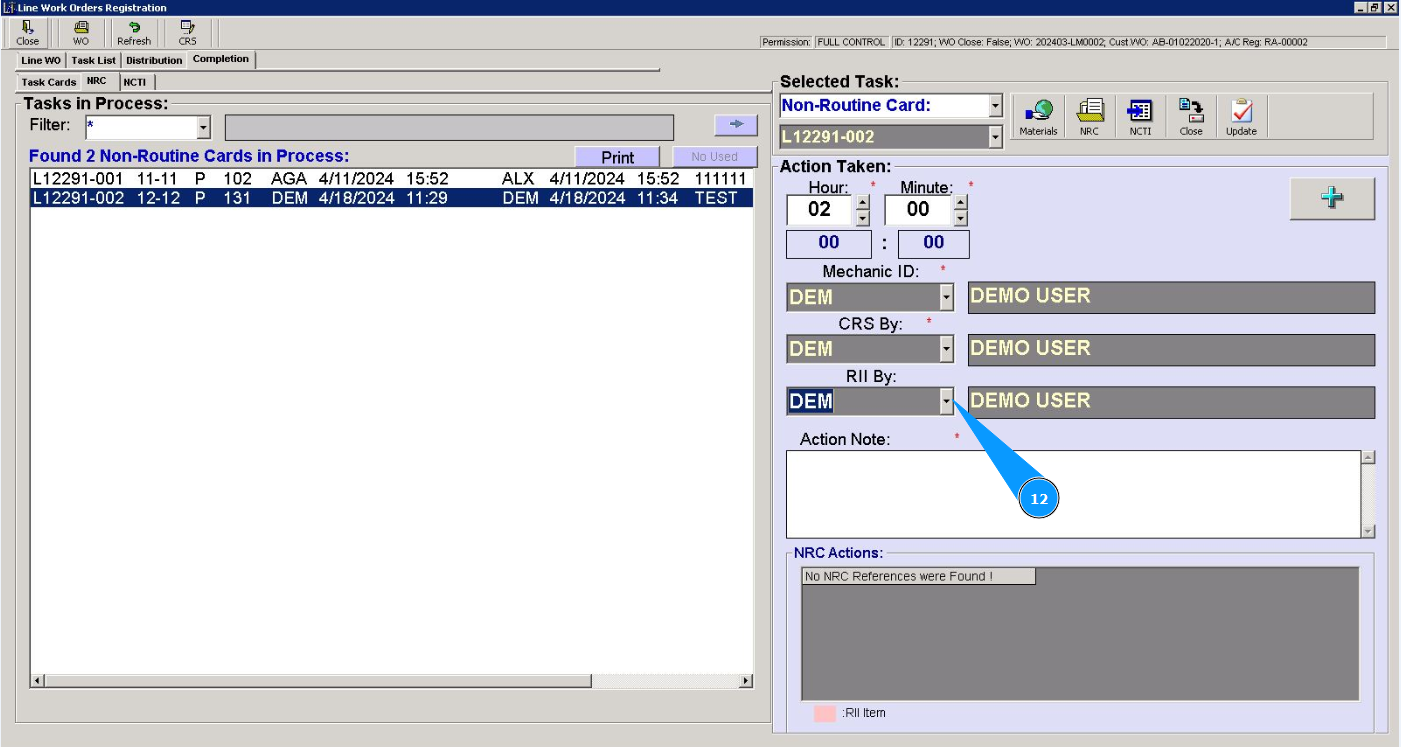

12. Select from the dropdown list the ID of the personal who certified this task in the field "RII By". /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_8.png

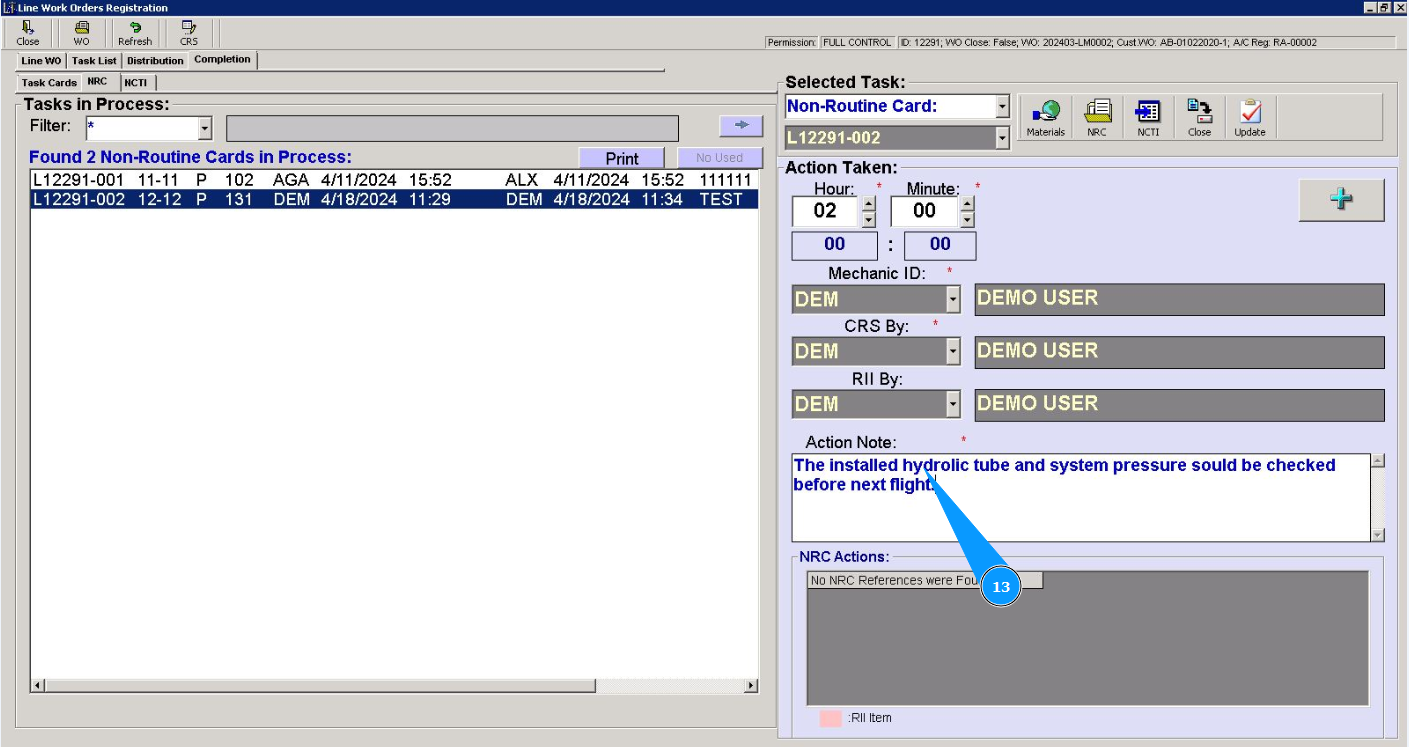

13. Enter information about the completion of the task in the field "Action Note". /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_9.png

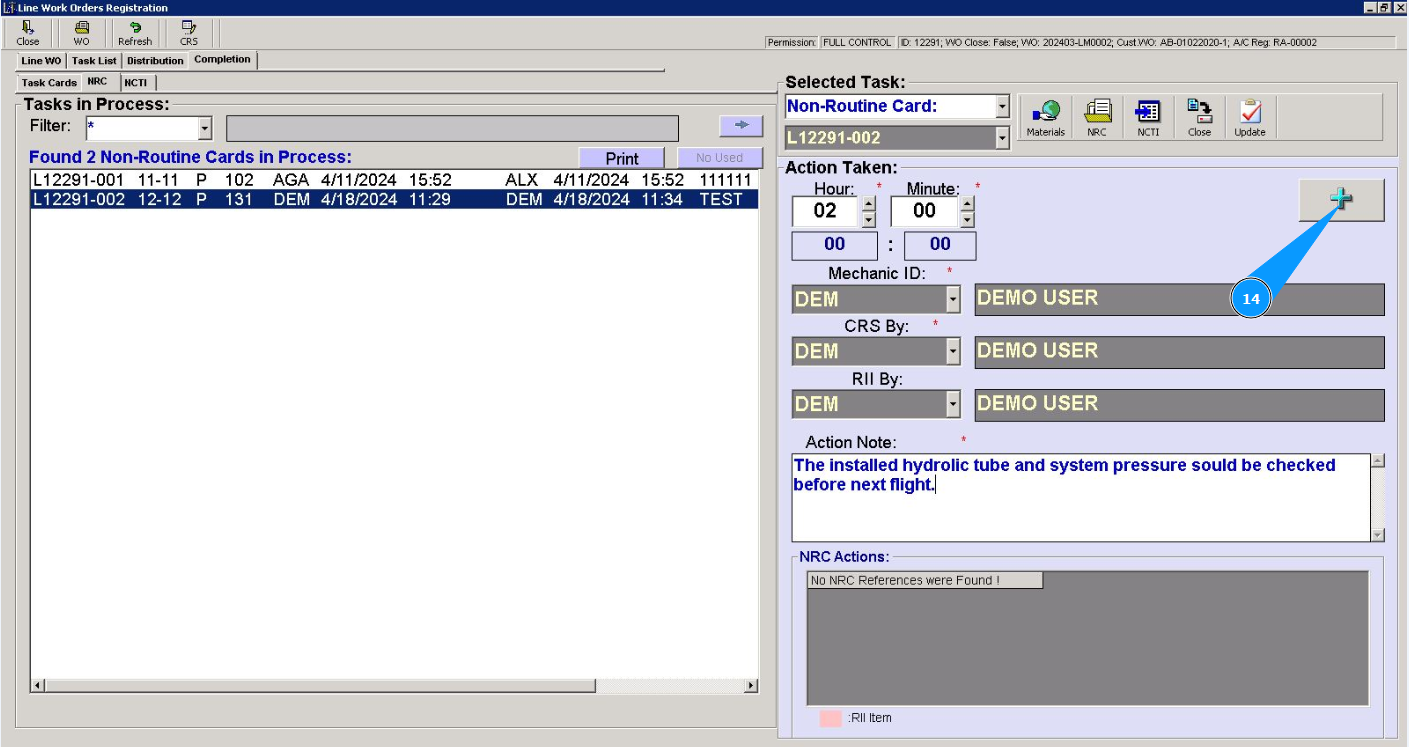

14. Click on the button with a plus symbol to save the entered data. /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_10.png

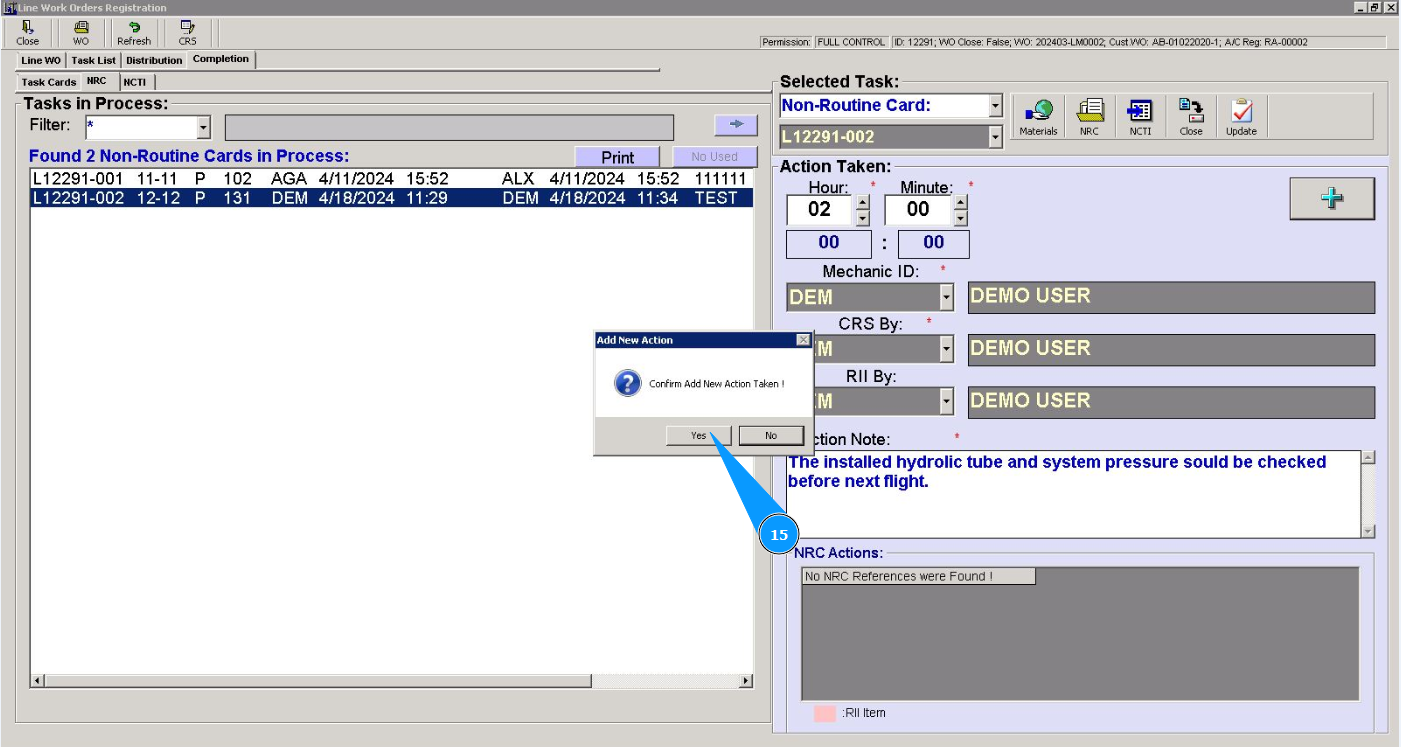

15. Click on the button "Yes", to confirm entering man-hours for this task. /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_11.png

16. Check that the new line with the entered man-hours is displayed in the field "NRC Action". /images/how_to/Line Maintenance/How_to_add_man-hours_to_WO_NRC_12.png
